MSI MS-6785 HP Medion Ver1 Sockel 478 Mainboard + Blende FSB800 DDR400 AGP8X*m24

MSI MS-6785 HP Medion Ver: 1 Sockel 478 Mainboard + Blende FSB800 DDR400 AGP8X

Das Sockel 478 Mainboard mit Medion Retentionmodul von MSI für HP/Medion PC´s! Nur in Verwendung mit einem Medion Kühler sinnvoll.

Technische Daten

CPU

Socket 478 for Pentium 4 processors with 400/533/800 MHz (100/133/200MHz QDIR)

Core frequency up to 3.2GHz

SiS® 648FX Northbridge Chipset (839 pin BGA)

Supports Intel® Pentium® 4 processors with data transfer rate up to 800 MHz

Supports 64-bit high performance DDR400/333/266 memory controller

Supports AGP 8X/4X interface at 0.8v or 4x at 1.5v with fast write transaction

Supports bi-directional 16-bit data bus with 1GHz bandwidth MuTIOL

SiS® 963 Southbridge Chipset (371 pin BGA)

Supports high throughput SiS MuTIOL 1GHz interconnecting to SiS®963 media I/O

Supports Dual-IDE ATA 66/100/133

Integrated Direct Sound AC97 audio

Low pin count interface for SIO

Advanced power management and PC2001 compliance

High speed USB 2.0 controller, 480Mb/s

Main Memory

Supports four memory banks using two 184-pin DDR DIMMs

Supports up to 2GB PC3200/2700/2100DDR SDRAMs

Supports 2.5v DDR SDRAM

Slots

1 x Accelerated Graphics Port slot (Supports AGP 3.0 4x/8x)

3 x 32-bit PCI bus slots (Support 3.3v/5v PCI bus interface; The second PCI slot in BLUE is a Combo-Slot and supports 2 master devices)

On-Board IDE

The Dual IDE controllers integrated in SiS 963 support P/O, Bus Master, Ultra DMA66/100/133 operation and can connect up to 4 IDE devices

Back Panel I/O Ports

1 x LAN (RJ45)

1 x Serial (COM A)

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x IEEE1394 Firewire

1 x mini IEEE1394 Firewire

2 x USB2.0

1 x Vertical 6ch Audio ports (Line-Out subwoofer speaker / Line-Out rear speakers / Line-Out front speaker / MIC / Line-In)

1 x RCA_SPDIF In

1 x RCA_SPDIF Out

Internal I/O Connectors

1 x JLPT1 SPP/EPP/ECP mode connector

1 x Joystick/Game connector

1 x JUSB1 connector

1 x IEEE1394 connector

1 x JBAT1 CMOS Jumper

1 x 20-pin ATX Power connector

1 x 4-pin 12V CPU Power connector

1 x 3-pin CPU Fan connector

2 x IDE connectors

1 x Floppy Disk connector (supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes)

1 x Buzzer

1 x CD-In connector

1 x Front Audio Panel connector

1 x Front Panel header

Onboard IEEE1394

Agere FW803 PHY Integrated in SiS®963

Audio

S/W C-Media 9739A 5.1 channel with SPDIF IN/OUT

LAN

VIA® VT6103 LAN controller

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension

Micro ATX Form Factor; 24.0 cm x 24.5 cm

Mounting

6 mounting holes

Lieferumfang

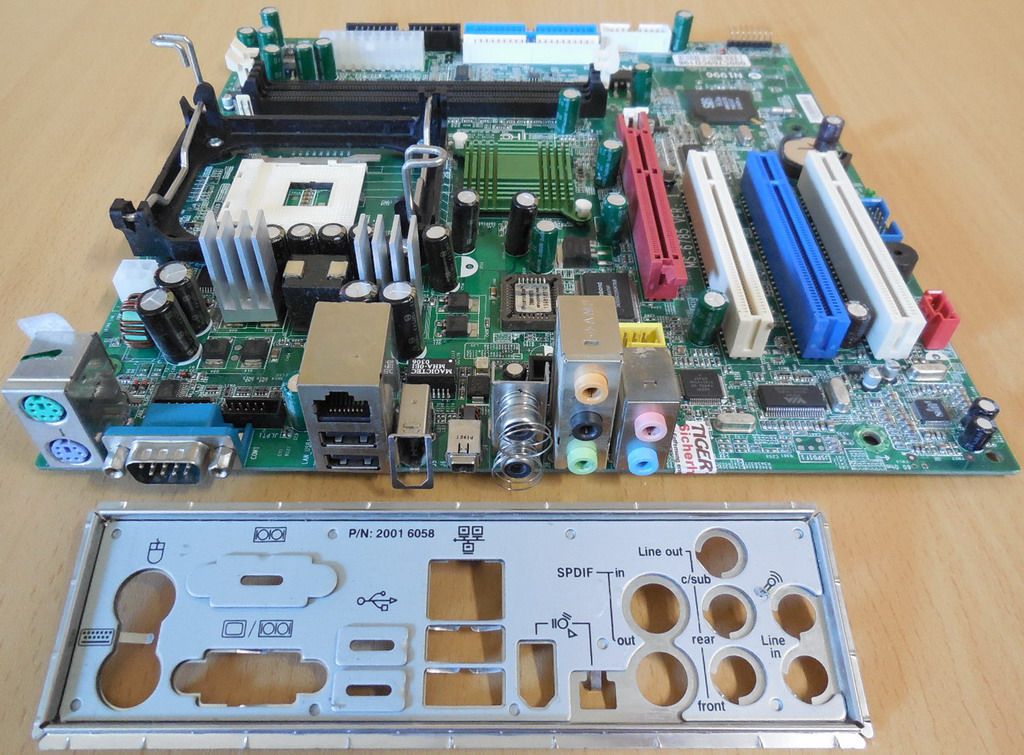

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
