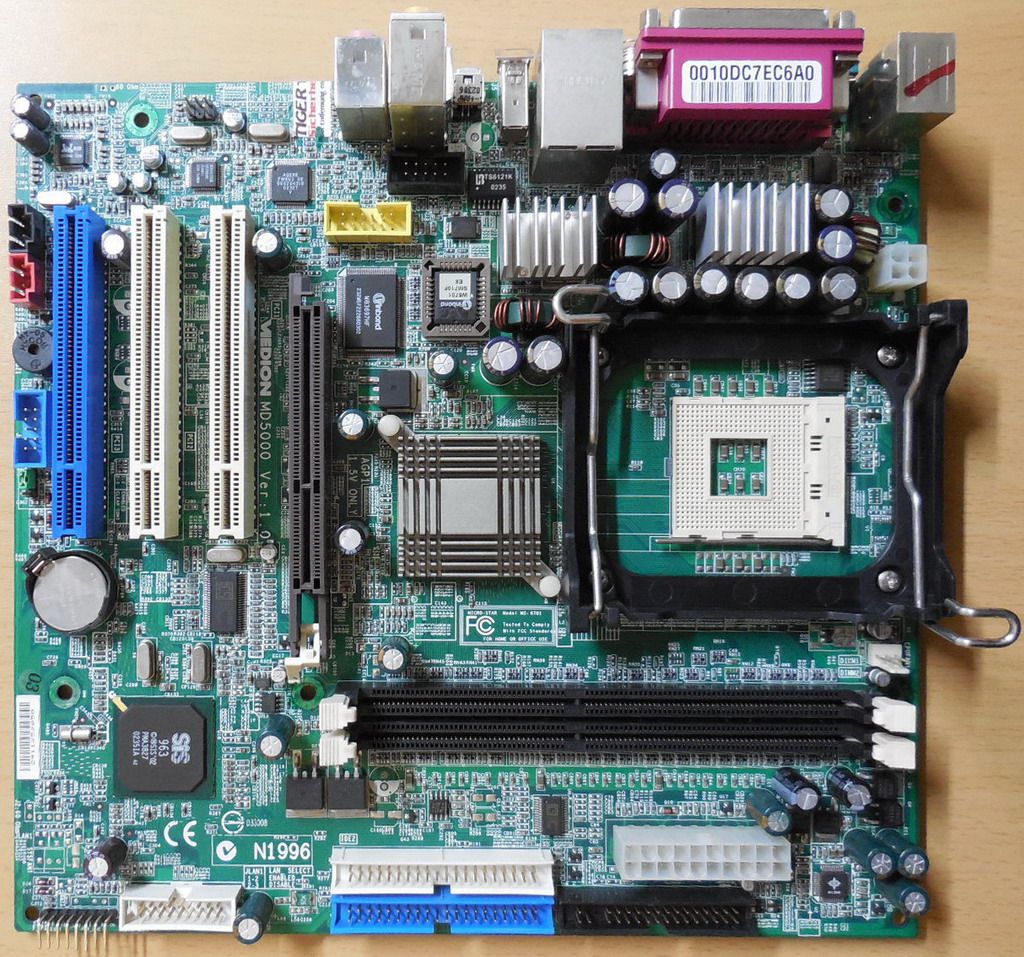

Medion MD5000 MSI MS-6701 Ver1.0 Mainboard +Blende Sockel 478 AGP LAN Audio* m30

Medion MD5000 MSI MS-6701 Ver 1.0 Mainboard + Blende Sockel 478 AGP LAN Audio

Technische Daten

CPU

Supports Socket 478 for P4/Celeron processors (Willimate and Northwoodcore) with 400/533 MHz

Core Frequency from 1.3 GHz to 2.8 GHz and up

Chipset

SiS® 648 chipset

- Supports Intel Pentium 4 processors with data transfer rate up to 533 MHz

- Supports 64-bit high performance DDR333+/DDR333/DDR266 memorycontroller

- Supports AGP 8X/4X interface

- Supports bi-directional 16-bit data bus with 1 GHz bandwidth MuTIOL

SiS® 963 chipset

- Supports Dual-IDE ATA 66/100/133

- Integrated audio controller with AC97 interface

- Low pin count interface for SIO

- Advanced power management and PC2001 compliance

Main Memory

Supports two 184-pin DDR DIMMsSupports up to 2GB PC2700/2100/1600 DDR SDRAMs

Supports 2.5v DDR SDRAM

Slots

1 x AGP (Accelerated Graphics Port) 4x/8x slot

3 x 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE

Dual-IDE controller integrated in SiS 963 chipset

Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes

Can connect up to four IDE devices

Onboard IEEE1394

AGREE FW803 Integrated in SiS 963 SB

Audio

S/W RealTek ALC650 6-channel audio codec with SPDIF in/out

LAN

Realtek RTL8201BL

Internal I/O Connectors

1 x Floppy Disk Drive Connector (supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes)

2 x IDE Connectors

1 x JUSB1 Front USB Connector

1 x JVIDEO1 Connector

1 x JCD1 CD-In Connector

1 x JAUDIO1 Front Panel Audio Connector

1 x J7 IEEE1394 Firewire Connector

1 x J9 Joystick/Game Connector

1 x JSPDIF1 Connector

1 x Buzzer

1 x 3-Pin CPU FAN Connector

1 x JBAT1 CMOS Jumper

1 x Front Panel Connector

1 x 20-pin ATX Mainboard Power Connector

1 x 4-pin 12V CPU Power Connector

Back Panel I/O Ports

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

2 x USB ports

1 x LAN RJ-45 jack

1 x Coaxial SPDIF-In port

1 x Coaxial SPDIF-out port

1 x Serial port (COM)

1 x Parallel port

1 x Standard IEEE1394 Firewire port

1 x Mini IEEE1394 Firewire port

3 x Vertical Audio ports for 6-channel Line-Out

2 x Vertical Audio ports fpr MIC-In & Line-In

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension

M-ATX Form Factor, ca. 24.4 cm x 23.0 cm

Mounting

6 mounting holes

Others

Suspend to RAM/Disk (S3/S4)

PC2001 compliant

Chassis Intrusion Detection

Lieferumfang

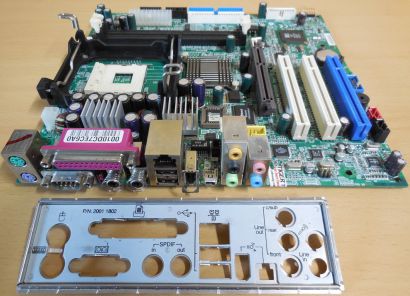

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
