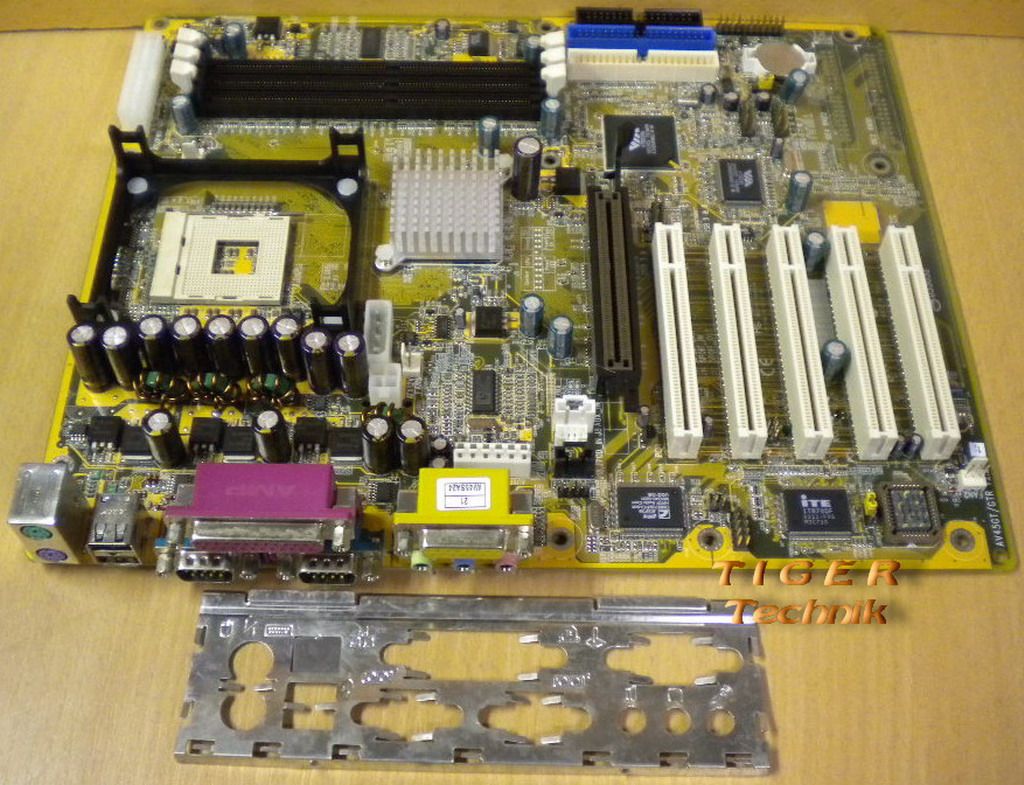

Shuttle AV45GT GTR V 2.2 Mainboard +Blende Sockel 478 AGP 4X Audio USB2.0* m587

Shuttle AV45GT GTR V 2.2 Mainboard + Blende

Sockel 478 AGP 4X Audio USB1.1 & USB2.0

Technische Daten

Chipset

VIA P4X266A for Pentium 4 processors with socket 478

Northbridge: VIA VT8753A (with passive-fan), Southbridge VIA VT8233

Socket 478 CPU Support

Intel Pentium 4 processor with Willamette- or Northwood-core with 400MHz FSB and from Board-Version 1.3 on even with 533MHz FSB successfully tested with: P4 Celeron up to 1,8 GHz, P4 (Willamette 256KB Cache) up to 2,2GHz, P4 (Northwood 400MHz FSB) up to 2,4GHz and P4 (Northwood 533MHz FSB) up to 2,8GHz

Info: Normally, there is no need to configure the processor. In BIOS the following parameters can also be adjusted manually:

- FSB-frequency infinitely adjustable from 100 up to 160 MHz

- Vcore CPU-voltage fine adjustment: 1,100 up to 1,850V

- DDR-voltage: 2,55 / 2,60 / 2,65V

Expansion Slots

1 x AGP (v2.0) slot supports 4X mode

5 x 32 Bit PCI (v2.2)

Onboard IDE Controller

2-Channel Enhanced PCI IDE for up to 4 IDE devices. Supports UltraDMA/100 (ATA100)

Integrated Multichannel Hardware Audio Function:

C-Media 8738 Hardware-Audio-Controller supports 5.1 sound, C3DX Positional Audio in 6-channel-speaker-mode

HRTF-3D Positional Audio, supports Direct Sound 3D and A3D-interface applicable to Legacy SBPRO

Connectors on the backpanel: line-in, line-out, microphone, MIDI/gameport, line in/out

Connector on the bracket: for bass/center, bracket optionally in delivery

Multichannel operation: line-out = front, line-in = rear and onboard connector for bass/center

More line-ins on the mainboard audio-in for CD-ROM and AUX.

Backpanel-connectors

1 x PS/2-Mouse

1 x PS/2-Keyboard

1 x Parallel (SSP/EPP/ECP)

2 x Serial (16550 compatible, Fifo)

2 x USB1.1

Audio: line-in, line-out, microphone, MIDI/gameport

Onboard-connectors

1 x Floppy drive (up to 2,88 MB)

4 x USB2.0 (via 2 USB2.0 Header)

2 x USB1.1 (via USB1.1 Header)

1 x Infrared (COM2 can be used for infrared communication, IrDA-adapter not included in delivery)

1 x WOL (Wake on Lan)

3 x Fan (CPU, AGP, chipset)

Memory

3 x 184-Pin DIMM-socket for PC1600 or PC2100 DDR SDRAM memory

supports modules sizes of 64, 128, 256, 512 and 1024MB with 100 or 133MHz clock frequency up to a total capacity of either 2GB unbuffered or 3GB registered DDR SDRAM.

Hardware-monitoring

CPU-temperature, system voltage and fan revolution can be monitored

Power Management

ACPI Version 1.0 (Advanced Configuration and Power Interface)

supports power saving modes: S1 (Snoop), S3 (Suspend to RAM), S5 (Soft-Off)

On/Off-button with two functions: Suspend-mode / soft-off

BIOS

Award V6.0PG  PnP Green BIOS

2 MBit Flash EPROM

ATX-power supply connector

Standard 20-Pin-ATX-power supply connector

Additional 4-Pin-connector for 12V

Additional 6-Pin-connector for 3,3 and 5V

Form Factor

ATX: 30,5 x 24,4 cm
