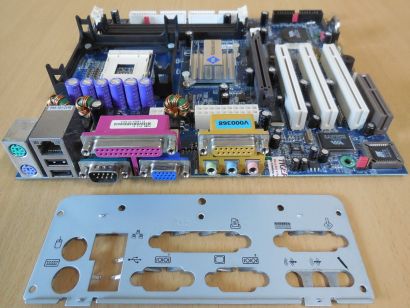

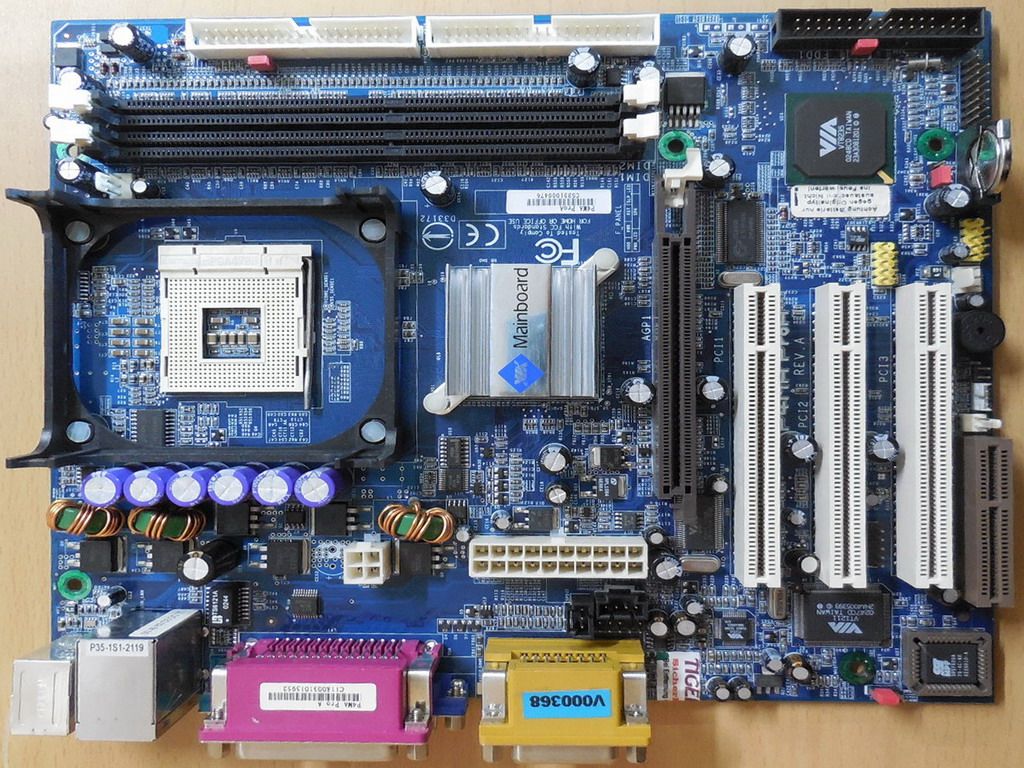

VIA P4MA Pro A Mainboard +Blende Sockel 478 P4M266 VGA LAN Audio AGP 4X DDR*m295

VIA P4MA Pro A Mainboard +Blende Sockel 478 P4M266 VGA LAN Audio AGP 4X DDR PCI USB2.0

Technische Daten

CPU

Supports Intel® Pentium® in the 478 pin package

Supports 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.2GHz and upwards

VIA P4M266/VT8235 Chipset

Supports Intel® (100MHz QDR) CPU Front Side Bus (FSB)

Integrated ProSavage8 AGP Graphics

External 4x AGP Bus

High Bandwidth V-Link Client controller

Integrated Hardware Sound Blaster/Direct Sound 6 channel AC'97 audio

Ultra DMA 66/100/133 master mode PCI EIDE controller

ACPI 1.0B and APM 1.2 compliant

Main Memory

2 x 184-pin DDR DIMM sockets

Supports up to 2GB of 2.5v DDR SDRAM (PC2100/PC1600)

Slots

1 x AGP (Accelerated Graphics Port) 4X slot

3 x PCI 2.2 32-bit PCI bus slots (supports 3.3v/5v PCI bus interface)

1 x CNR (Communication Network Riser) slot

Onboard IDE

Integrated IDE controller provides IDE HDD/CD-ROM with PIO, Bus Master and UltraDMA 66/100/133 operation modes. Can connect up to 2 channel for 4 IDE devices

Onboard LAN

VIA VT6103 10/100 Base-T Ethernet PHY

Onboard Audio

VIA VT1616 6 channel AC'97 Codec

Onboard I/O Connectors

1 x 20-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

2 x IDE Connectors

1 x FDD Connector

1 x Front Panel System Connector

2 x USB2.0 connectors for 4 additional USB 2.0 ports

1 x SPDIF (optical & coaxial) connector

1 x Front-panel audio connectors (Mic and Line Out)

1 x CD Audio-in connector

1 x FIR IrDA Infrared connector

1 x Wake-on-LAN connector

1 x Wake-on-Ring connector

1 x 3-pin CPU FAN connector

1 x 3-pin System FAN connector

1 x System intrusion connector

1 x Speaker/Buzzer

1 x Clear CMOS Jumper

1 x J4 Jumper

1 x J5 Jumper

1 x Audio Codec Auto Detect Jumper

Back Panel I/O

1 x PS2 mouse port

1 x PS2 keyboard port

1 x Parallel port

1 x Game/MIDI port

1 x VGA port

1 x Serial port

1 x RJ-45 LAN port

2 x USB 2.0 ports

3 x audio jacks: Line-out, Line-in and Mic-in (switched to 6 channel output during 6 channel operations)

BIOS

Award Plug & Play BIOS

Desktop Management Interface (DMI) function which records your mainboard specifications

Dimension & Mounting

MicroATX Form Factor; ca. 24.5 cm x 20.5 cm; 6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
