Produktbeschreibung

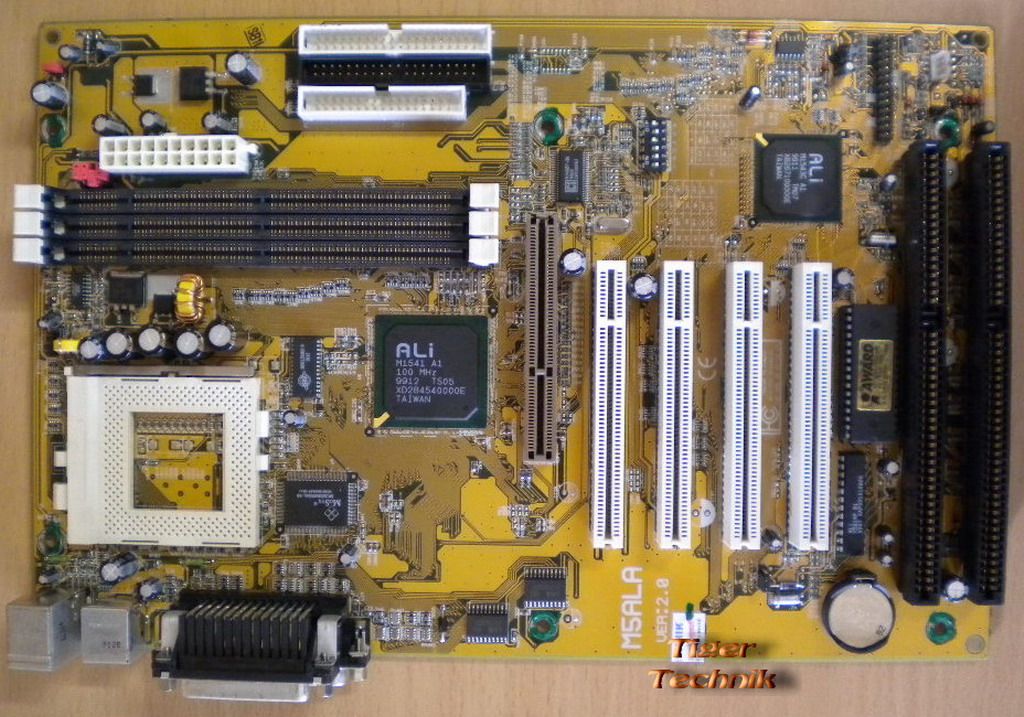

Biostar M5ALA Ver 2.0 Mainboard + Blende
Technische Daten
CPU
- Pentium™ processor P54C/CT/CS/CQS, MMXTM; Cyrix6x86™ 6x86/6x86MII procesor; AMD-K5™/AMD-K6™/AMD-K6™-2 processor; idt Win™ Chip/idt Win™ Chip-2 processor
- Provides 321-pin ZIF Socket (Socket 7).
Speed
- Supports CPU bus clock 60/66/75/83/95/100 MHz.
- Supports 30/33 MHz PCI Bus speed.
(when processors running at 75/83/95/100MHz, the clock generator will be divided it by 2.5 or 3 which makes PCI bus speed become 33MHz respectively)
- I/O clock 8MHz for ISA Bus.
- Supports 60/66MHz AGP Bus speed.
Chipset
- ALI M1541 A1 100MHz
DRAM Memory
- Supports 168-pin DIMM module sockets.
- Supports DRAM memory 8MB to 384MB on board.
- Supports Symmetrical DRAM.
- Supports 3 banks DIMM, 3.3V Unbuffered Synchronous DRAM.
Cache Memory
- Supports 512K Pipelined Burst SRAM.
Flash Memory
- Supports PnP function for better system compatibility.
- Allows you to easily upgrade system BIOS.
Shadow RAM
- A memory controller that provides shadow RAM and supports 8-bit ROM Bios
Green Function
- Support power management operation via BIOS
- Power down timer from 1 Min to 1 hour.
- Wakes from by any key press or any mouse activity
- Ringings resume on internal/external modem supported
- Power-On by keyboard or PS/2 mouse (optional)
BUS Slots
Two (2) 16-bit ISA slot
Four (4) 32-bit PCI slots
One (1) AGP slot
PCI Enhanced IDE Built-in On Board
- Supports four IDE hard disk drives.
- Supports PIO Modes up to Mode 4 Timings, and Multiword DMA Mode 0,1,2 with independent Timing of up to 4 Drives.
- Support Ultra DMA 33, Bus Master Mode.
- Supports IDE interface with CD-ROM.
- Supports high capacity hard disk drives.
- Support LBA mode.
- Supports booting from LS-120 "Super Disk" or Iomega ZIP 100MB disk.
ISA I/O Built-in Onboard
- Supports one multi-mode Parallel Port.
(1) Standard & Bidirection Parallel Port (SPP)
(2) Enhanced Parallel Port (EPP).
(3) Extended Capabilities Port (ECP).
- Supports two serial ports, 16550 UART with 16 byte FIFO.
- Supports one Infrared transmission (IR) port.
- Supports PS/2 mouse and PS/2 keyboard.
- Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drivers.
Universal Serial Bus
- Supports two Universal Serial Bus (U.S.B.) Ports.
- Supports 48MHz USB
Dimensions
- ATX form factor
- 20 cm X 30.5 cm (W x L)
BIOS
- AWARD legal friendly BIOS
- Supports PnP functions.
Lieferumfang

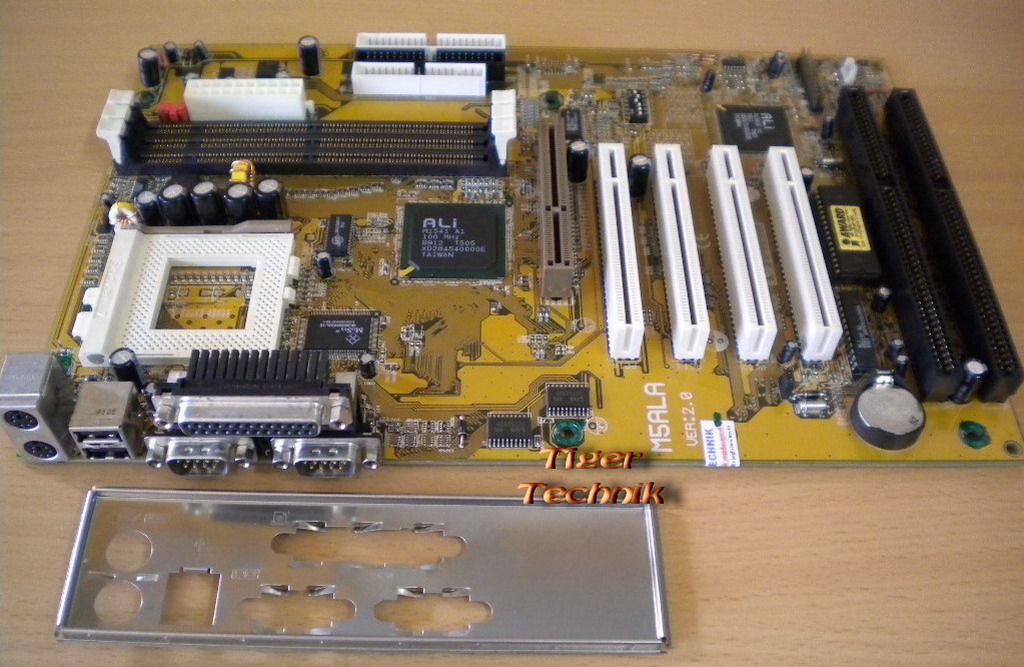

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
