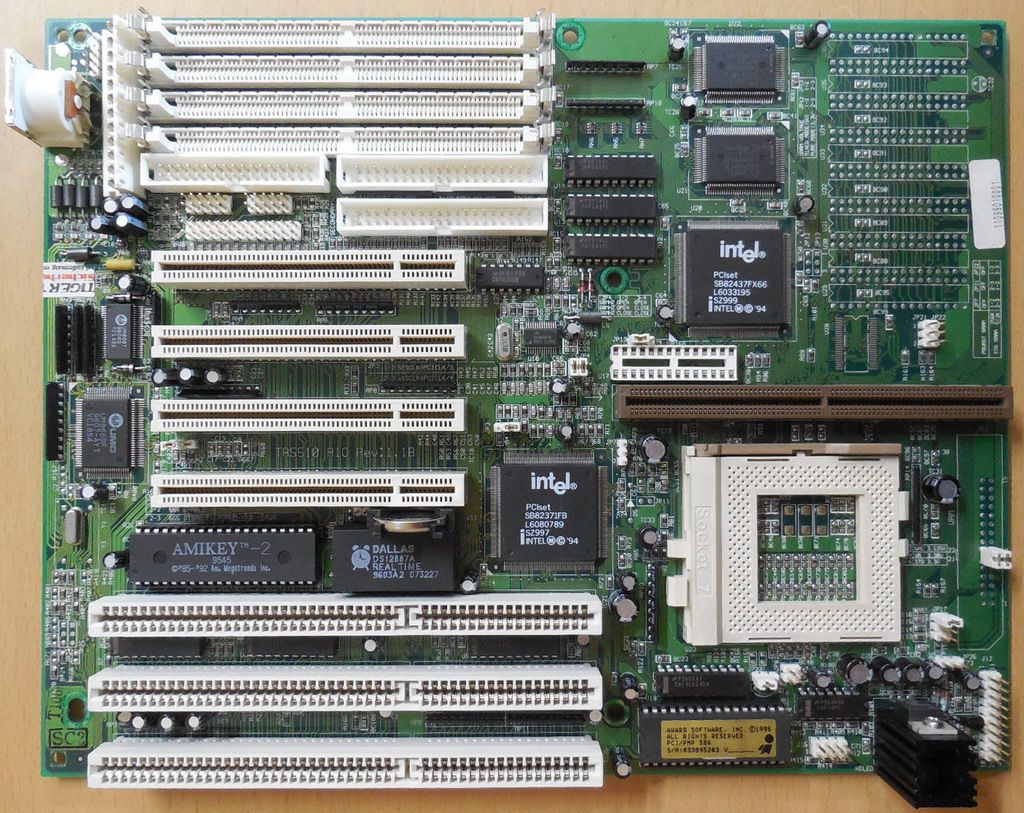

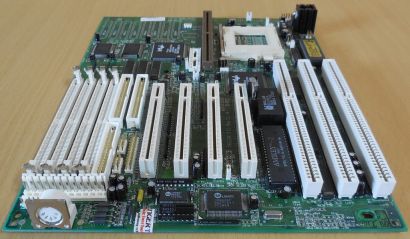

ECS Elitegroup TR5510 AIO 1.1B Retro AT Mainboard Sockel 7 EDO RAM 3x ISA* m1040

ECS Elitegroup TR5510 AIO Rev: 1.1B Retro AT Mainboard Sockel 7 EDO RAM 3x ISA PCI

Technische Daten

Hersteller       Elitegroup Computer Systems

Model       TR5510 AIO Rev: 1.1B

Sockel       ZIF Sockel 7

CPU-Unterstützung

Intel Pentium P54C 75/90/100/120/133/150/166 MHz, P54CT, P54CTB, Future CPU at 50/60/66 MHz host clock speed

Cyrix 6X86 - P120+, P133+, P150+, P166+

Cache

Supports the write -back architecture for CPU’s internal first level (L1) cache and external secondary level (L2) cache.

256KB or 512KB L2 cache size is supported by On-board asynchronous standard SRAM or One slot for synchronous Pipelined Burst SRAM module.

Direct mapped organization.

Cache hit read/write cycle timi ngs at 3 -1-1-1 with Pipelined Burst SRAM’s.

Back-to-Back read cycles at 3 -1-1-1-1-1-1-1 with Pipelined Burst SRAM’s.

Chipsatz

Intel® 430FX PCIset

UMC UM8667 (I/O TTL Integration)

UM8669 (Plug and Play Super AT I/O)

RAM

Four pieces of 72-pin SIMM sockets with memory size from 4MB to 128MB. All support double side SIMMs.

EDO/Hyper page mode (X -2-2-2 reads) or standard page mode DRAMs (X-3-3-3 reads) support.

4 Qword deep buffer for 3 -1-1-1 posted write cycles.

Supports symmetrical and asymmetrical DRAMs.

IDE       IDE-Festplatten-Controller für bis zu vier IDE-Laufwerke (z. B. IDE-Festplattenlaufwerke, ATAPI-CD-ROM-Laufwerke). Unterstützt DMA oder PIO Transfer.

BIOS      Award BIOS with 128KB Flash ROM support

PNP specification V1.0a

APM specification V1.1

PCI specification V2.0

CD-ROM boot

RTC (modified)

Uses Dallas 12887A compatible RTC module (Internal 128 byte of CMOS RAM).

Interne Steckplätze       3 x ISA, 4 x PCI, 1 x Cache Module Slot, 1 x LPT connector (Standard/ECP/EPP), 2 x Serial Ports (16550 compatible UARTs), 2 x IDE connectors, 1 x Floppy connector (FDD) (360K, 720K, 1.2MB, 1.44MB, or 2.88MB), 1 x J4 PS/2 Mouse connector, 1 x JP7/JP19/JP21/JP22 Cache Setting Jumpers, 1 x TAG socket, 1 x JP3 System Clock Jumper, 1 x JP1 Multi I/O Jumper, 1 x JP23 Bios Voltage Jumper, 1 x JP17 CPU Voltage Jumper, 1 x JP2 CMOS Jumper, 1 x JP26 Fan connector, 1 x JP16 IDE Hard Disk LED connector, 1 x J15 IR connector, 1 x J12 Front Panel connector, 1 x JP4/JP8 CPU Setting Jumpers, 1 x PS1 6+6-pin AT Mainboard Power connector

Externe Anschlüsse       1 x AT Tastatur

Formfaktor       Baby AT; ca. 279mm x 218mm

Bios Batterie wurde professionell modifiziert und kann nun mit einer handelsüblichen CR2032 betrieben werden! Siehe bitte Bilder!

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
