Produktbeschreibung

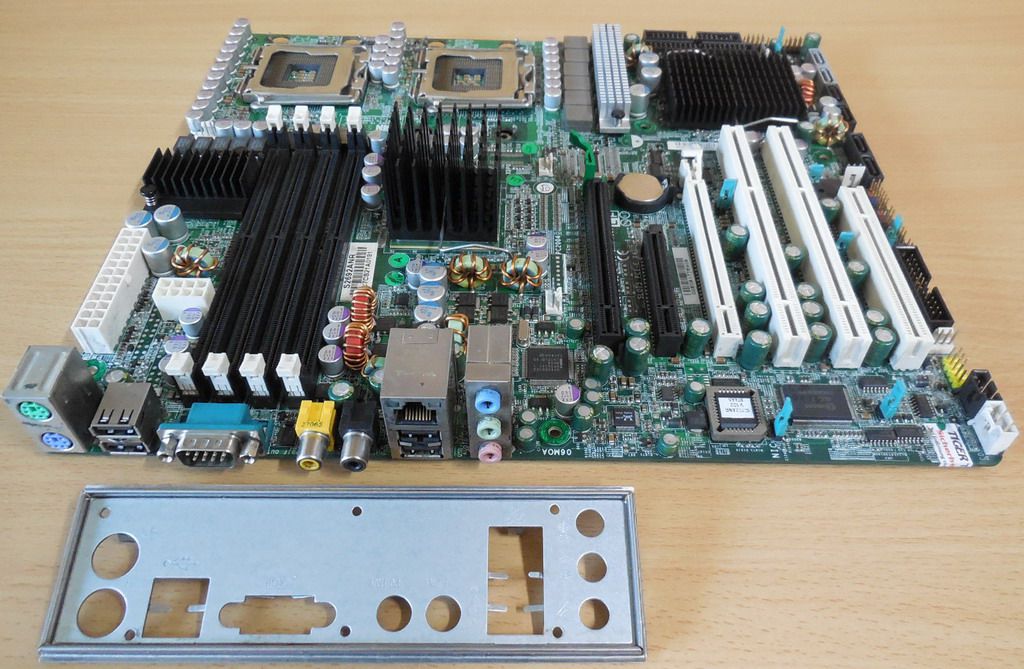

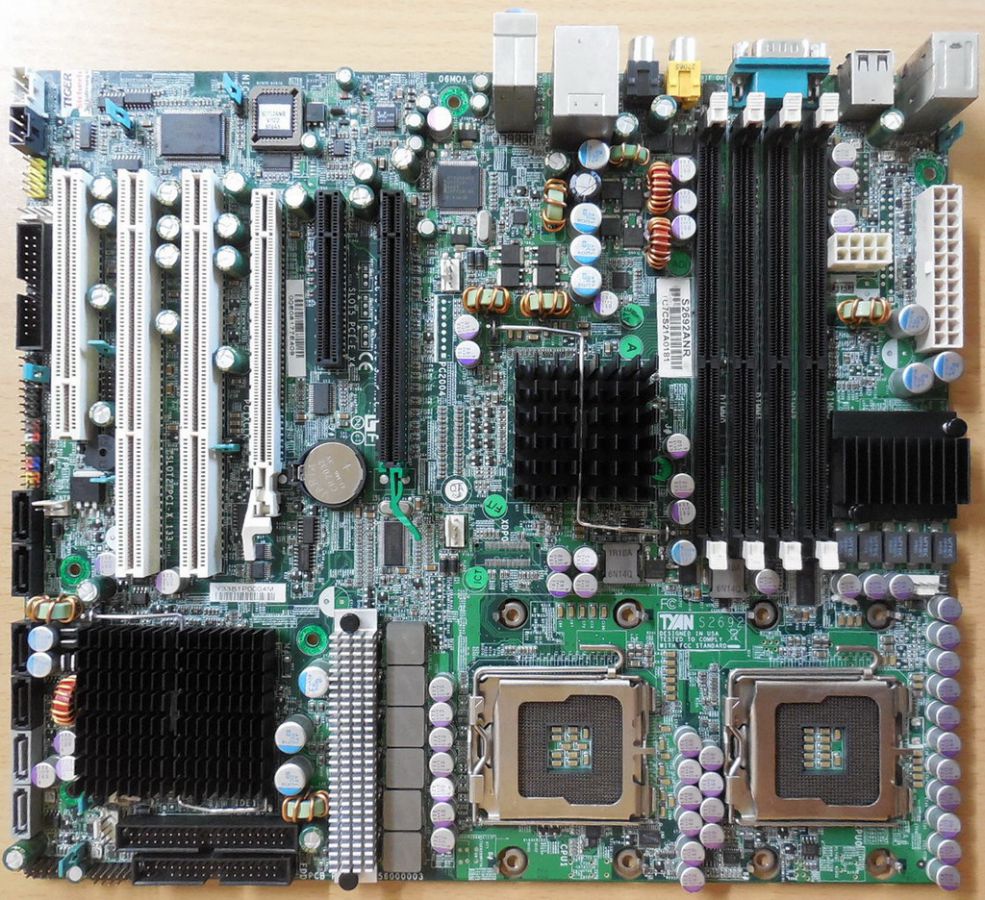

Tyan Tempest i5000XL S2692ANR Server Mainboard + Blende Intel Sockel 771 DUAL CPU DDR2 FB-DIMM
Technische Daten
Hersteller Tyan
Model Tempest i5000XL S2692ANR
CPU
Dual LGA771 sockets
Supports up to two Intel® Dempsey / Woodcrest processors
Supports Intel® Clovertown processor (w/ 5000X-G chipset)
1.06 / 1.33GHz FSB
VRD11.0
Intel 5000X (Greencreek) MCH + ESB2 chipset
Supports for 1.06/1.33GHz FSB
Winbond W82627EHG Super I/O chip
Memory
Four (4) 240-pin DDR2 FB-DIMM* sockets
Four memory channels
Supports ECC DIMMs
Maximum of 16 / 8GB DDR2-533 / 667
Integrated LAN Controllers
Intel GbE from ESB2 (w/ single port “Gilgal”) – ASF 2.0
One RJ-45 port with LEDs
Integrated Audio Controller
HDA link
RealTek ALC888 controller (High Definition Audio)
Line-in, Line-out, Mic-in rear ports
SPDIF In/Out in rear
Front panel audio header
CD-in, Aux headers (4-pin configuration)
Expansion Slots
Two (2) PCI Express x16 slots ― One x8 signal from EBS2
One (1) PCI Express x8 slot ― x4 signal from ESB2
Two (2) PCI-X 133/100MHz slots from ESB2
One (1) PCI 32-bit 33MHz slot
Total six (6) expansion slots
Integrated Serial ATAII (SATA-II) RAID
Six (6) SATA-II ports from ESB2
3.0 Gb/s per port
RAID 0, 1, 5, 10 support
(*Only Windows Operating System can support AHCI mode and SATA RAID)
Trusted Platform Management (TPM)
Infineon SLB9635TT 1.2 (w/ 5000X-G chipset)
Integrated I/O
One (1) 9-pin 16550 UART serial port
Eight (8) USB 2.0 ports (four at rear, four for two pin headers)
PS/2 mouse and keyboard connectors
Six (6) Standard/integrated SATA2 connectors
One (1) RJ-45 10/100/1000 LAN ports
One (1) IDE and one (1) Floppy connectors
BIOS
Phoenix BIOS on 8Mbit Flash ROM
Supports APM 1.2, ACPI 2.0
Serial Console Redirect
PXE via Ethernet, USB device boot
PnP, DMI 2.0 WfM 2.0 Power Management
User-configurable H/W monitoring
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support
System Management
ADI ADT7470 Hardware Monitor
CPU thermal & voltage monitor support
Five (5) fan headers (4-pin configuration)
Form Factor
CEB (12” x 10.5”)
EPS 12V/SSI (24+8 pin) power connectors
Stacked PS/2 keyboard and mouse connectors
One Serial port
Stacked USB 2.0 (2)
Stacked USB 2.0 (2) and RJ-45 (1) connectors
Stacked Line-in, Line-out, Mic-in audio connectors
SPDIF ports
Regulatory
FCC Class B (DoC)
European Community CE (DoC)
BSMI
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
