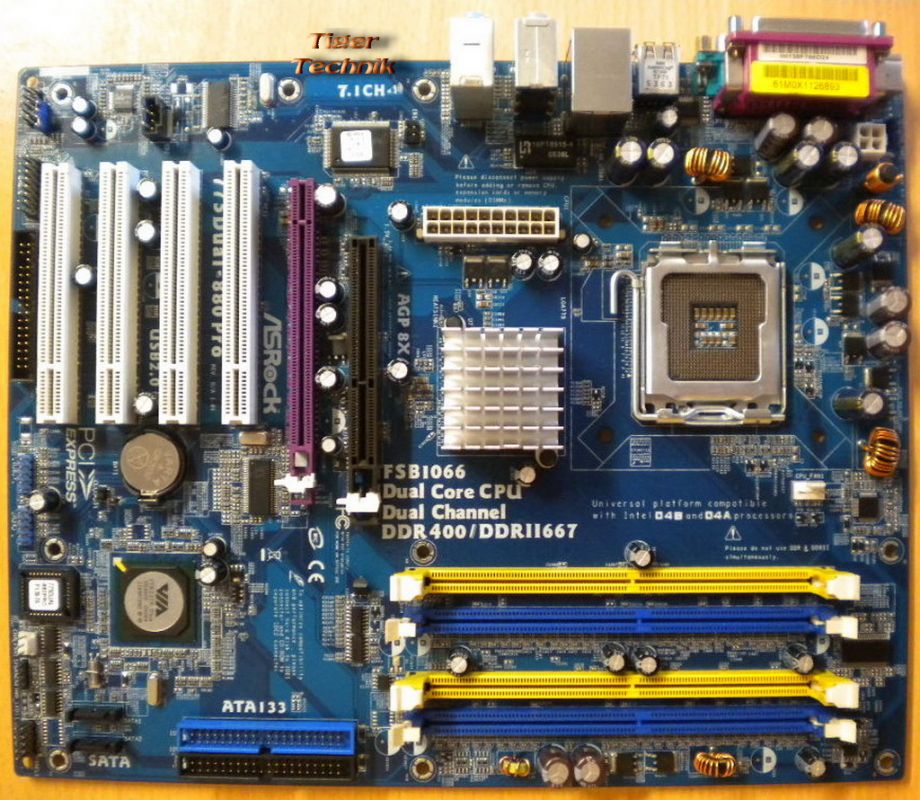

ASRock 775Dual-880Pro Rev 1.06 Mainboard +Blende Sockel 775 DDR1-2 AGP PCIe*m604

Sockel 775 DDR1 oder DDR2 / AGP oder PCIe

Technische Daten

CPU

- LGA 775 for Intel® Dual Core Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D processors

- FSB 1066/800/533 MHz

- Supports Hyper-Threading Technology

- supports Intel® EM64T CPU

Chipset

- Northbridge: VIA® PT880 Pro

- Southbridge: VIA® 8237R

Memory

- Dual Channel DDR memory technology

- Supports DDR2 667/533/400, DDR 400/333/266* non-ECC, un-buffered memory

- DIMM slots: 4 (2 for DDR2 and 2 for DDR)

- Max. capacity of system memory: 2GB for DDR2 and 2GB for DDR

*DDR2 and DDR are supported separately

BIOS

- 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Audio

- Realtek ALC850 8 channel AC'97 audio codec

LAN

- VIA® 6103L 10/100 Ethernet LAN PHY

- 802.3u, WOL supported

- Supports PXE

Slots

- 1 x PCI Express Graphics slot (@ x4 mode)

- 1 x AGP8X/4X slot (1.5V only)

- 4 x PCI slots

Connector

- 2 x SATA 1.5Gb/s connectors

- 2x ATA133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD audio in header

- Front panel audio connector

- 2 x USB 2.0 headers (to support 4 USB2.0 ports)

- 1x Game port header

Rear Panel I/O

ASRock 8CH I/O Plus

- 4 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x Serial port (COM1)

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x 8 channel Audio ports ( Line In/Out, Mic In)

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Form Factor

- ATX, 305mm x 244mm

OS

- Microsoft® Windows® 98SE / ME / 2000 / XP / XP 64-bit compliant

Certifications

- FCC, CE

Lieferumfang

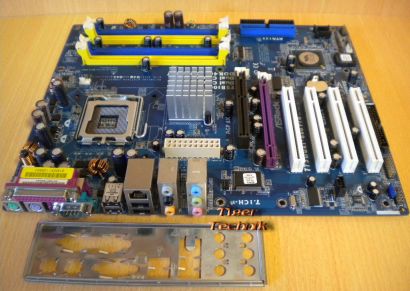

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
