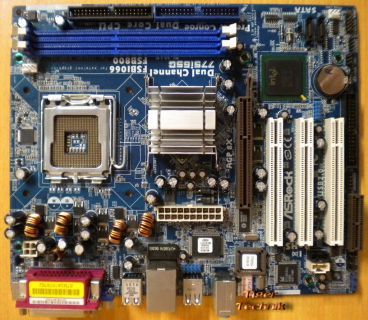

ASRock 775i65G Rev. 2.03 Mainboard + Blende Sockel 775 AGP 8X PCI VGA SATA* m516

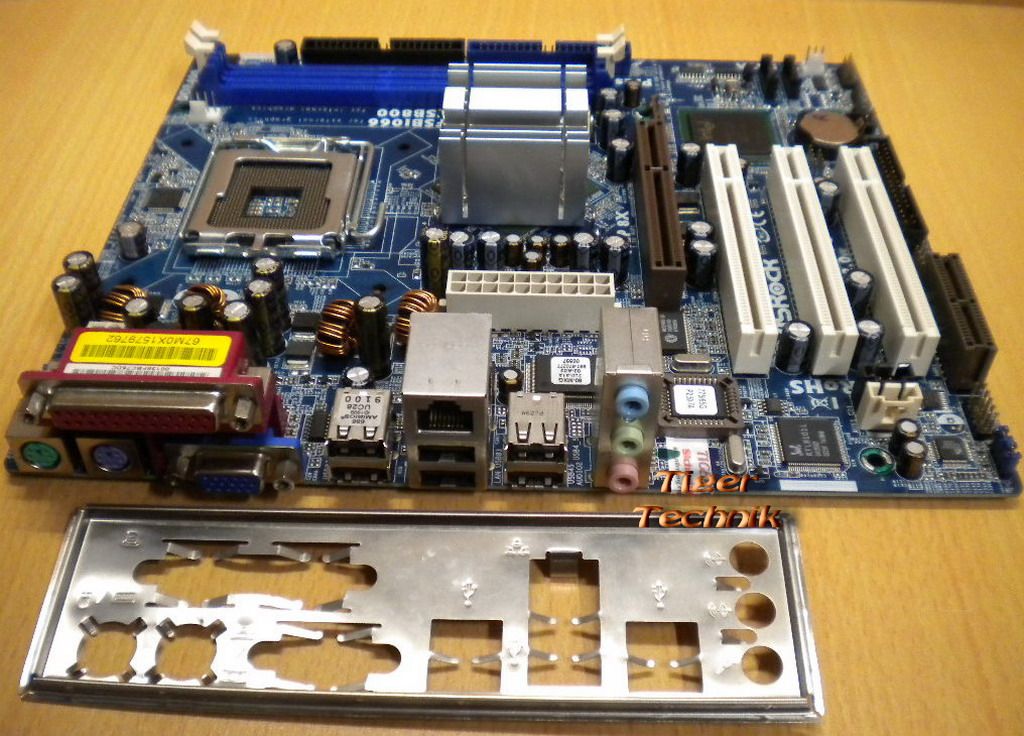

ASRock 775i65G Rev. 2.03 Mainboard + Blende

Technische Daten

CPU:

- LGA 775 for Intel® Pentium® XE / Pentium® D / Pentium® 4 / Celeron® D

- FSB 1066* MHz for external graphics (by overclocking)

- FSB 800/533 MHz for internal graphics

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

*FSB1066-CPU is supported by overclocking only when you adopt an external VGA card and DDR400 CL2.5 memory modules.

Chipset

- Northbridge: Intel® 865G

- Southbridge: Intel® ICH5

Memory

- Dual Channel DDR memory technology

- 2 x DDR DIMM slots

- Supports DDR400/333/266 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB

BIOS

- 4Mb AMI BIOS

- AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports Jumperfree

- SMBIOS 2.3.1 Support

Graphics

- Integrated Intel® Extreme Graphics 2

- DirectX 8.0

- Max. shared memory 96MB

Audio

- Cmedia 9761A 5.1 channel audio CODEC

LAN

- Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Slots

- 3 x PCI slots

- 1 x AGP 8X slot

- 1 x AMR slot

Connector

- 2 x SATA 1.5 Gb/s connectors

(No Support for "RAID" and Hot Plug functions )

- 2 x ATA100 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM header

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- AUX in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)

Rear Panel I/O

ASRock I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Hardware Monitor

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Overheat Shutdown to Protect CPU Life

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS

- Microsoft® Windows® 98SE / ME / 2000 / XP compliant

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
