ASRock 775i65PE Rev. 1.03 Mainboard + Blende Sockel 775 AGP SATA DDR400 LAN*m451

ASRock 775i65PE Rev. 1.03 Mainboard + Blende

Sockel 775 AGP PCI LAN Seriell SATA DDR400

Technische Daten:

CPU

- LGA 775 for Intel® Pentium® 4/Celeron® D processors
- Support Intel® Dual Core Processors*, including Pentium® D and Extreme Edition
- FSB 1066/800/533 MHz
- Supports Hyper-Threading and EM64T
- 3-phase power interface, Intel® 04B/04A processor compatible

*Only supported with PCB version R1.03 or higher, and BIOS version P1.40 or higher.

Chipset

- Northbridge: Intel® 865PE
- Southbridge: Intel® ICH5

Memory

- Supports Dual Channel DDR400/333/266 non-ECC, un-buffered memory
- DIMM slots: 4
- Max. capacity of system memory: 4GB*

*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® XP 64-bit.

BIOS

- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
- Bypass Access Technology offering selection for users to achieve the enhanced system performance

Audio

- ALC850 8 channel AC'97 audio codec

LAN

- Realtek RTL8101 PCI 10/100 Fast Ethernet controller
- 802.3u, WOL supported
- Supports PXE

Slots

- 1 x AGP8X/4X slot, 1.5V
- 5 x PCI slots

Connector

- 2 x SerialATA 1.5Gb/s connectors
- 2 x ATA 100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin headers (to support 4 extra USB 2.0 ports)
- 1 x Game/MIDI port pin header

Rear Panel I/O

ASRock 8 CH I/O Plus
- 4 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x 8channel Audio ports ( Line In/Out, Mic In)

Unique Feature

Hybrid Booster:
- CPU Frequency Stepless Control
- AGP/PCI Frequency Fix
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Bypass Access Technology

Hardware Monitor

- CPU Temperature Sensing
- Motherboard Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- ATX, 304mm x229mm

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

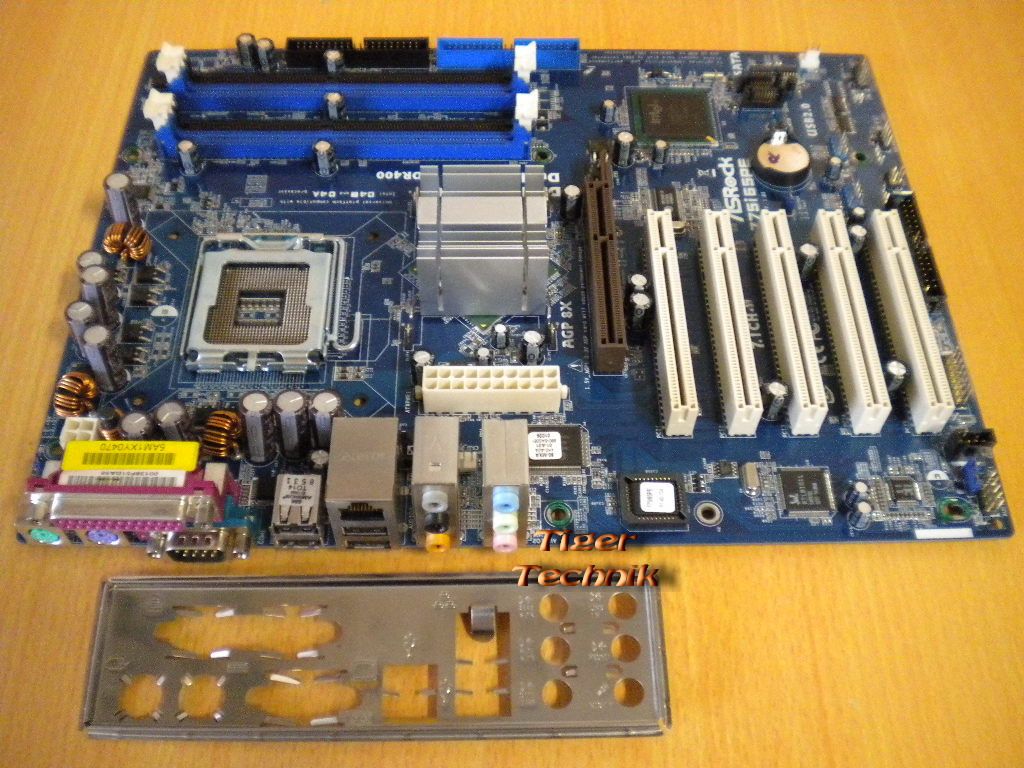

Abbildung ähnlich
