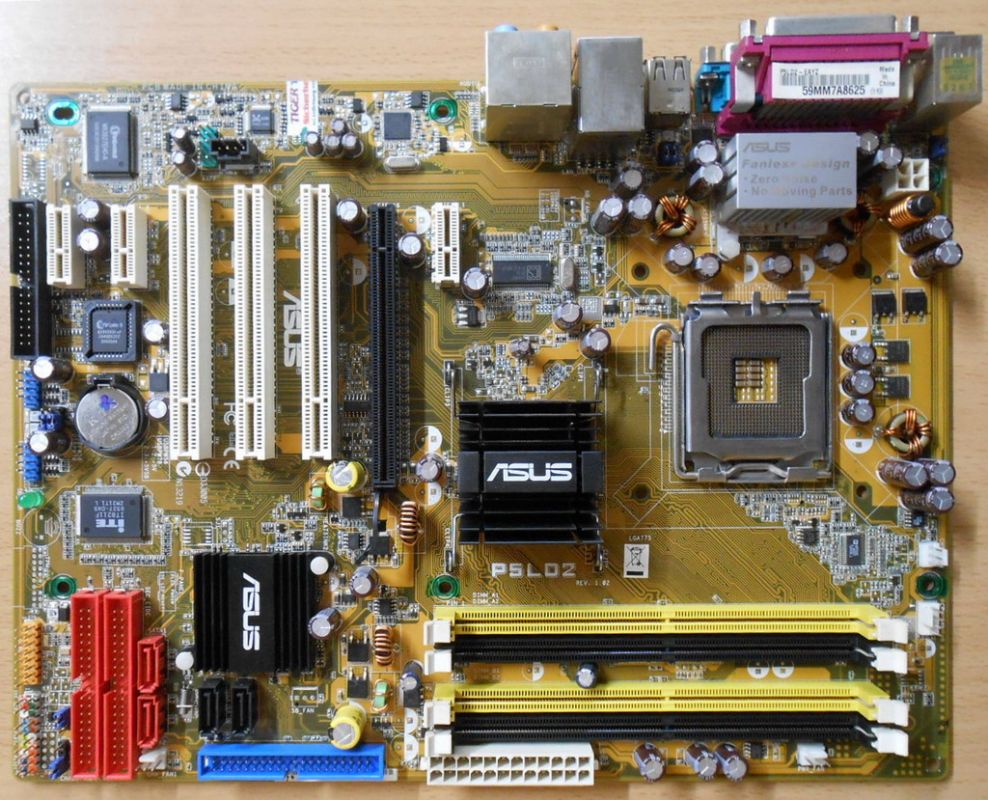

ASUS AiLife Series P5LD2 Rev 1.02 Mainboard +Blende i945P Sockel 775 PCIe* m717

ASUS AiLife Series P5LD2 Rev 1.02 Mainboard +Blende

i945P Sockel 775 PCIe SATA II RAID IDE-RAID

Technische Daten

CPU

LGA775 socket for Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D Processors

Intel EM64T / EIST / Hyper-Threading Technology

Chipset

Intel 945P

Intel ICH7R

Front Side Bus

1066/800/533 MHz

Memory

4 x DIMM, max. 4GB, DDR2 667/533/400, Non-ECC, un-buffered memory

Dual Channel Architecture

* Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.

Expansion Slots

1 x PCI-E x16

3 x PCI-E x1

3 x PCI

Storage/RAID

Intel ICH7R Southbridge:

- 1 x UltraDMA 100/66/33

- 4 x Serial ATA (3Gb/s)

- RAID 0, RAID 1, RAID 5, RAID 10 and Intel Matrix Storage technology.

ITE 8211F controller:

- 2 x UltraDMA 133 support four hard drives

Audio

Realtek ALC882 8-ch High-Definition Audio CODEC

Jack Sensing and Enumeration

Universal Audio Jack

S/PDIF out interface

LAN

Marvell 88E8053 PCI-E Gb LAN controller

USB

8 USB2.0 ports

ASUS Unique Features

AI Net2, AI Quiet, AI NOS(Non-delay Overclocking System)

Overclocking Features

ASUS HyperPath, ASUS PEG Link, ASUS CPU Lock Free

Precision Tweaker:

- vDIMM: 8-step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0125 V increment

- SFS (Stepless Frequency Selection): allowing FSB tuning from 100MHz up to 450MHz at 1MHz increment

- PCIe x16 Frequency: allowing PCIe x16 frequency from 90MHz up to 150MHz at 1MHz increment

AI Overclocking

Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.

ASUS AI Booster utility

ASUS C.P.R.(CPU Parameter Recall)

Other ASUS Special Features

ASUS Q-Fan

Back Panel I/O Ports

1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x RJ45

1 x S/PDIF Out (Coaxial+Optical)

4 x USB2.0

Internal I/O Connectors

2 x USB connector supports additional 4 USB2.0 ports

1 x CPU / 2 x Chassis / 1 x Power FAN connectors

24-pin ATX Power connector

4-pin ATX 12V Power connector

IDE LED connector, power LED connector

Chassis Intrusion

CD audio in

1 x GAME/MIDI connector

Front panel audio connector

BIOS

4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2, ASUS MyLogo

Manageability

WOL by PME,WOR by PME, Chassis Intrusion

Form Factor

ATX 12"x 9" (30.5 cm x 23 cm)

Lieferumfang

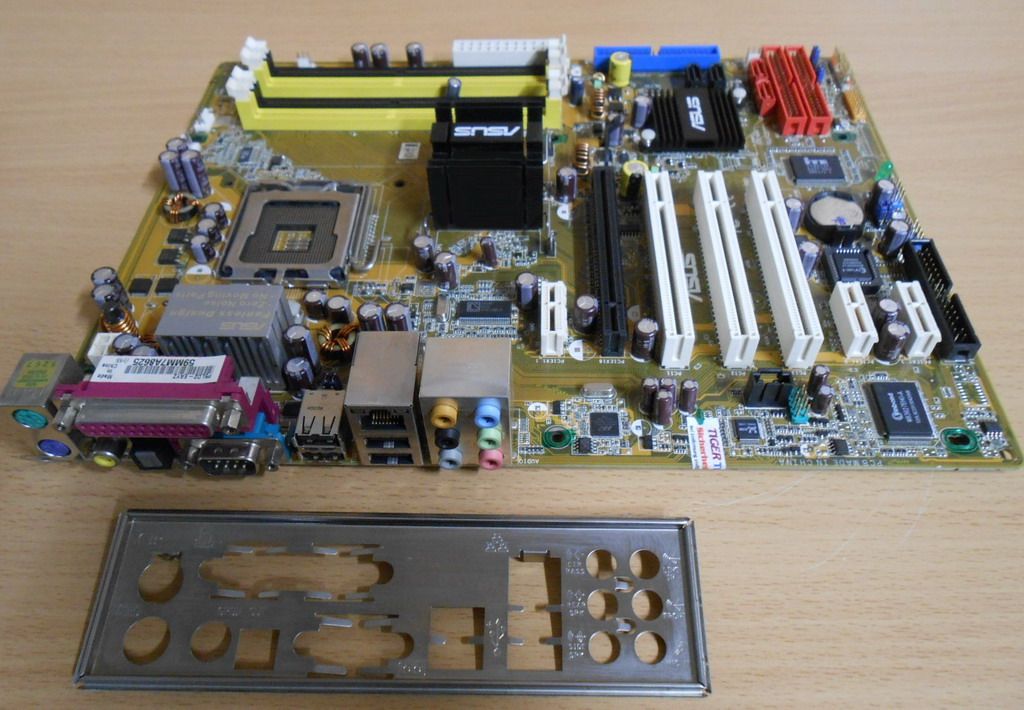

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
