Produktbeschreibung

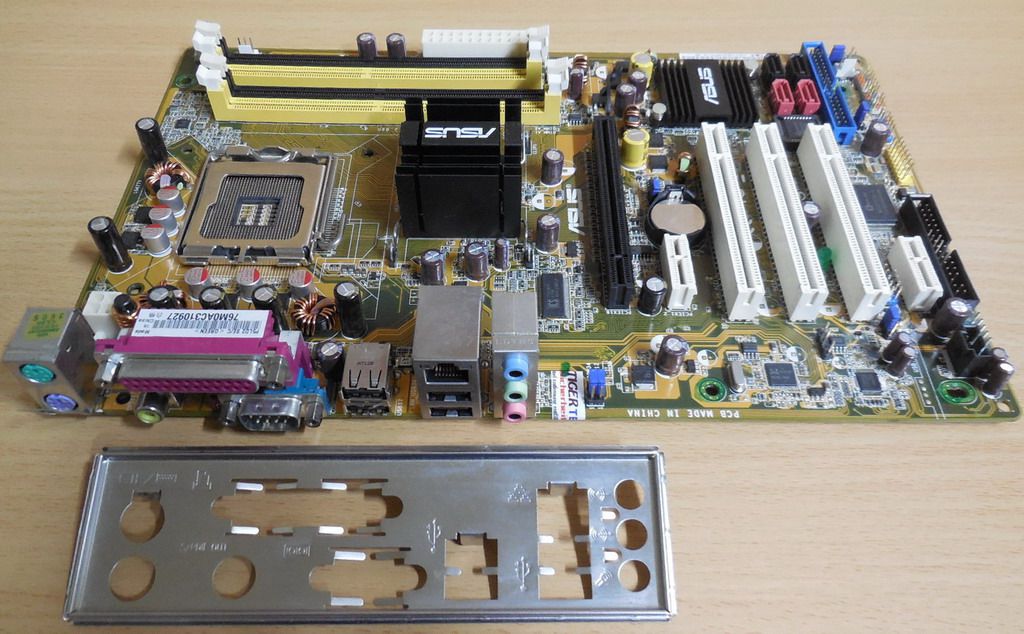

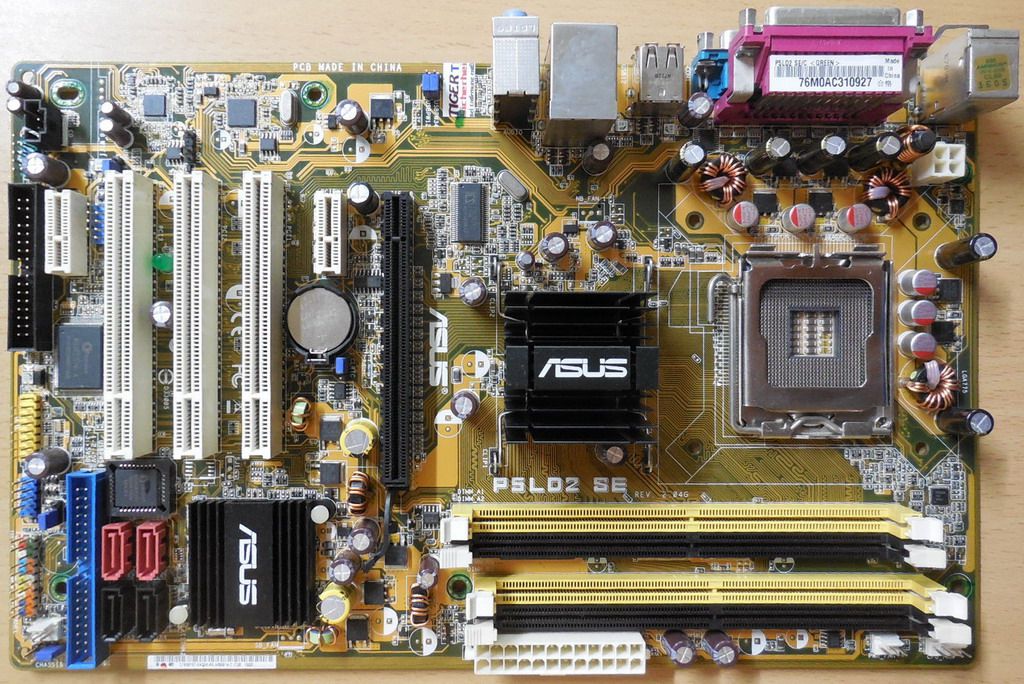

ASUS AiLife Series P5LD2 SE Rev 2.04G Mainboard + Blende Intel Sockel 775
Technische Daten
CPU
LGA775 socket for Intel® Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D Processors
Intel® EM64T / EIST / Hyper-Threading Technology
New power design supports Intel® next generation 04B/04A & 05B/05A CPU
*Only PCB R2.0(or higher) support Intel® Core™2 processor
Chipset
Intel 945P/G + Intel ICH7
Front Side Bus
1066/800/533 MHz
Memory
4 x DIMM, max. 4GB, DDR2 667/533/400, Non-ECC, un-buffered memory
Dual Channel Architecture
*Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.
Expansion Slots
1 x PCI-E x16
2 x PCI-E x1
3 x PCI
Storage/RAID
1 x UltraDMA 100/66/33
4 x Serial ATA (3Gb/s)
Audio
ADI1986A 6-ch Audio CODEC
Jack Sensing and Enumeration
S/PDIF out interface
LAN
RTL8111B PCI-E Gb LAN controller
USB
6 x USB2.0 ports
Overclocking Features
SFS (Stepless Frequency Selection): from 100MHz up to 450MHz at 1MHz increment
ASUS PEG Link
vCore: Adjustable CPU voltage at 0.025 V increment
ASUS EZFlash
Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.
4-step DRAM voltage control
ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special Features
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x RJ45
1 x S/PDIF Out (Coaxial)
4 x USB
Audio I/O
Internal I/O Connectors
4 x SATA2 ports for 4 SATA II devices
1 x Floppy connector
2 x USB connector supports additional 4 USB ports
1 x CPU (4pin) / 1 x Chassis (3pin) / 1 x Power FAN (3pin) connectors
24-pin ATX Power connector
4-pin ATX 12V Power connector
Chassis Intrusion
CD audio in
GAME/MIDI connector
Front panel audio connector (AAFP)
System Panel
CMOS Jumper
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2, ASUS MyLogo2
Manageability
WOL by PME,WOR by PME, Chassis Intrusion
Form Factor
ATX 12"x 7.5" (30.5 cm x 19 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
