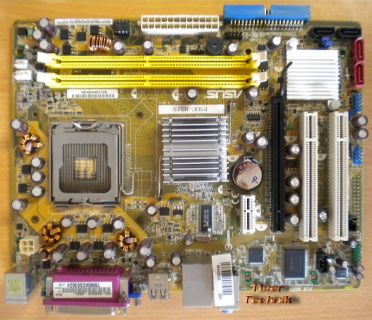

ASUS P5GC-MX/S i945GC Rev 3.04G Mainboard + Blende Sockel 775 VGA LAN Audio*m446

ASUS P5GC-MX/S i945GC Rev 3.04G Mainboard + Blende

CPU

Intel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready

Chipset

Intel 945GC

Front Side Bus

800/533 MHz

Memory

2 x DIMM, Max. 2 GB, DDR2 533/400 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)

Expansion Slots

1 x PCIe x16
1 x PCIe x1
2 x PCI 2.2

VGA

Intel Graphics Media Accelerator 950
Supports RGB with max. resolution 2560x1600 @60Hz Max. Vertical Refresh Rate 1920x1440 @85Hz

Storage

Southbridge
1x UltraDMA 100/66/33
4x SATA 3 Gb/s ports

LAN

PCIe 100/10 LAN controller

Audio

Realtek ALC883 6 -Channel High-Definition Audio CODEC

USB

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Back Panel I/O Ports

1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x LAN(RJ45) port
4 x USB 2.0/1.1
6- Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
CD/AUX audio in
System Panel Connector

Form Factor

uATX Form Factor
9.6 inch x7.2 inch ( 24.5cm x18.3cm )

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
