Produktbeschreibung

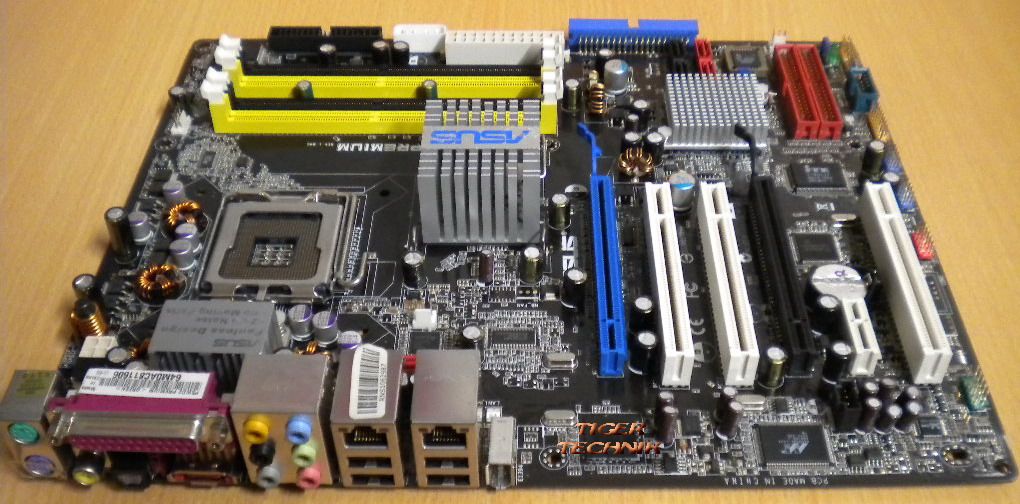

ASUS P5WD2 Premium Rev 1.04G Mainboard
CPU
- LGA775 socket for Intel® Pentium 4/Celeron CPU
- Intel Pentium® Processor Extreme Edition & Intel Pentium® D Processor ready
- Compatible with Intel® 05B/ 05A and 04B/04A processors
- Intel® Hyper-Threading Technology ready
Chipset
Intel 955X
Intel ICH7R
Front Side Bus
1066/ 800/ 533 MHz
Memory
Dual channel memory architecture
4 x 240-pin DIMM sockets support max. 8GB DDR2 800/ 667/ 533 ECC and non-ECC memory
Native DDR2 800 Support
Intel MPT (Intel Memory Pipeline Technology)
Expansion Slots
1 x PCI Express x16 slot for discrete graphics card
1 x Universal PCI-E x16 Slot (x4 mode)
1 x PCI Express x1
3 x PCI
Storage/RAID
Intel ICH7R South Bridge:
*1 x UltraDMA 100/66/33
*4 x Serial ATA I/II 3.0Gb/s with Intel Matrix Storage Technology with RAID 0, 1, 5, 10 support
Silicon Image 3132 SATA controller:
*1 x Internal Serial ATA I/II
*1 x External Serial ATA
ITE IDE controller:
* 2 x UltraDMA 133/100/66
LAN
Dual Gigabit LAN controllers:
*1 x Intel PCIe Gigabit LAN Controller
*1 x Marvell 88E8001 Gigabit LAN Controller, featuring AI NET2
Audio
Realtek ALC882D High Definition Audio 8-channel CODEC
Support Multi-streaming, Jack-sensing and Jack-retasking functions
Coaxial, Optical S/PDIF out on back I/O port
Features Dolby Digital Live technology
IEEE 1394
TI 1394a controller supports 2 x 1394a ports
USB
Max. 8 USB2.0/1.1 ports
ASUS Unique Features
Stack Cool 2 patented fanless cooling system
"SATA on the Go" External SATA connector
AI Quiet
Overclocking Features
AI NOS™ (Non-delay Overclocking System)
ASUS CPU Lock Free
Precision Tweaker:
- vDIMM: 8-step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125 increment
- SFS (Stepless Frequency Selection): allowing FSB tuning from 100MHz up to 450MHz at 1MHz increment
- PCIe x16 Frequency: allowing PCIe x16 frequency from 90MHz up to 150MHz at 1MHz increment
AI Overclocking (intelligent CPU frequency tuner)
Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.
ASUS AI Booster utility
ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special Features
CrashFree BIOS 2
Q-Fan2
Multi-language BIOS
MyLogo2
BIOS
8 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Manageability
WOL by PME,WOR by PME, Chassis Intrusion
Back Panel I/O Ports
1 x Parallel
1 x Optical + 1 x Coaxial S/PDIF Output
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x RJ45
4 x USB 2.0/1.1
1 x IEEE1394a
1 x External SATA port
8-Channel Audio I/O
Internal I/O Connectors
2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
1 x IEEE1394a connectors
1 x COM connector
1 x GAME/MIDI connector
CPU / 2 x Chassis / Power Fan connectors
Front panel High Definition Audio connector
Chassis Intrusion connector
CD audio-in connector
24-pin ATX Power connector
4-pin ASUS EZ Plug connector
Form Factor
ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)
Lieferumfang
Das Mainboard ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
