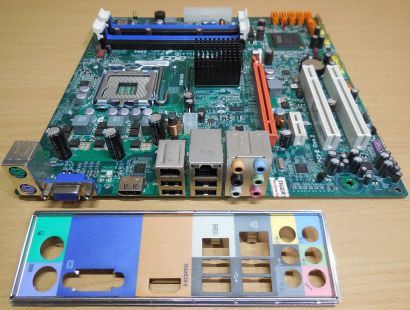

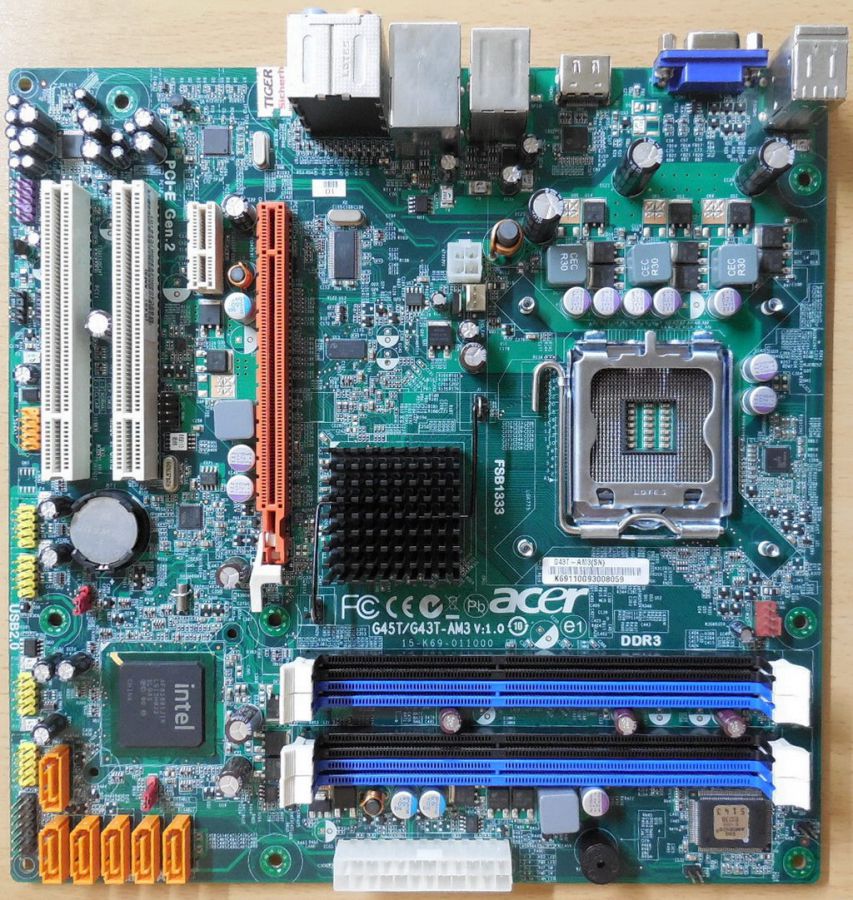

Acer Aspire M3800 Mainboard +Blende G45T G43T-AM3 V1.0 HDMI VGA DDR3 PCIe* m883

Acer Aspire M3800 Mainboard + Blende G45T/G43T-AM3 V1.0 HDMI VGA DDR3 PCIe

Technische Daten

CPU/Processor

Socket: 775

FSB: 1333/1066/800 MHz

Intel® Core™2 Quad processor; Intel® Core™2 Duo processor; Intel® Pentium® processor; Intel® Celeron® processor

Processor Type: Intel Conroe / Kensfield / Wolfdale / Yorkfield

Chipset

Intel G43 / Intel ICH10R

Memory

Dual Channel DDR3 800/1066/1333; Unbuffered non-ECC DIMM; Support 4x DDR3 DIMM (8 GB Maximum capacity)

Steckplätze

1x PCI Express® x16 Slot, 1x PCI Express® x1 Slot, 2x PCI Slot

Onboard Audio

Realtek ALC888S HD 7.1 Audio

Onboard LAN

Intel Boazman 82567V PCI-E 10/100/1000 Gigabit Ethernet LAN

SATA Interface

6 x SATA II 3Gb/s connectors for up to 6 SATA devices

USB

12 x USB2.0/1.1 (Rear 4 ports, Intern 4 header for additional 8 ports)

1394a

1x back panel and 1x via 1394 header

Buzzer

One onboard buzzer

Back panel I/O

PS/2 keyboard (purple)

PS/2 mouse (green)

VGA Sub-D

HDMI

Four USB (2.0)

One IEEE 1394a port

One RJ-45 networking port (LAN)

Audio ports:

line in (light blue)

line out (lime)

microphone (pink)

side speaker out (gray)

rear speaker out (black)

center/subwoofer (yellow orange)

Internal connectors

One ATX 24-pin power connector

One ATX 4-pin +12v power connector

Six Serial ATA connectors

One IEEE 1394a connector

One CPU fan connector

One System fan connector

One front panel audio connector

One front panel connector

Two SPDIF-Out connectors

Four USB connectors supporting 2.0 ports for up to 8 ports

One SP1_ROM1 connector

Bios

AMI Kernel with Acer Skin

Form factor

Micro ATX size

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
