Produktbeschreibung

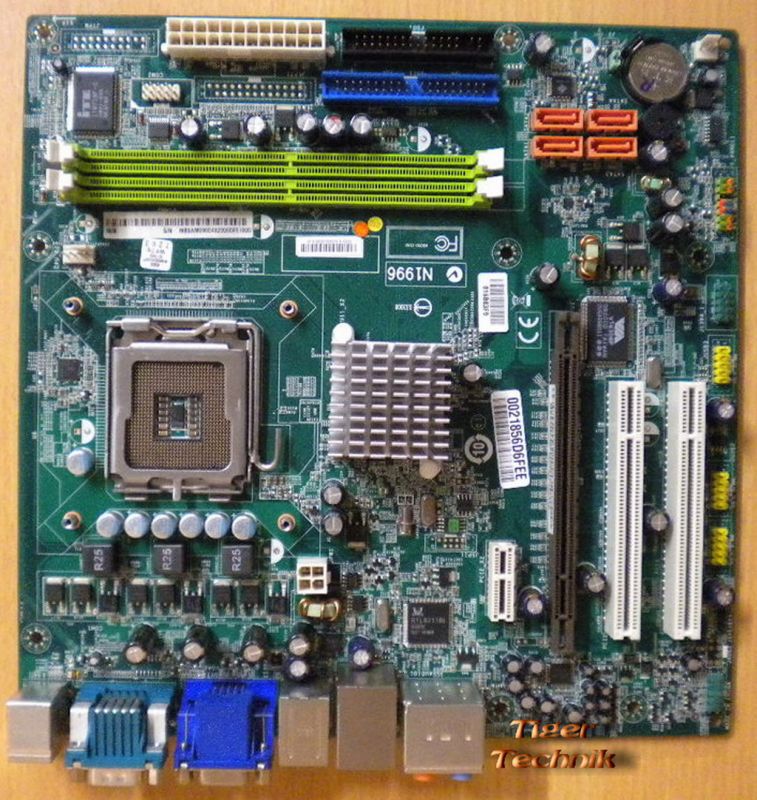

Acer MB.SAM09004 Mainboard
z.B. für Aspire M5640/M5641
Technische Daten
HP M5640/M5641 Mainboard, Part No.: MB.SAM09004
CPU/Processor
Socket: 775
Supports the following processors:
- Intel® Core™ 2 Duo Prozessor
- Intel® Core™ 2 Quad Prozessor
Front-side bus (FSB)
1333/1066/800/533 MHz (processor dependent)
Chipset
NVIDIA® MCP73PV Chipsatz
Form factor
Micro ATX size form factor
Memory
bis zu 4GB Dual-Channel DDR2 SDRAM (max. 4GB, 2 DIMM Steckplätze)
Steckplätze
1x PCI Express® X16 Slot (1 belegt), 1x PCI Express® X1 Slot, 2x PCI Slot
Video graphics
Integrated
Supports PCI Express x16 graphics cards
Onboard audio
Built-in Azalia 8 channel audio
High-Definition Audio mit 7.1 Kanal Unterstützung
Onboard LAN
Realtek RTL8211BL 10/100/1000 Mbps Gigabit Ethernet controller
Back panel I/O
PS/2 keyboard (purple)
PS/2 mouse (green)
One COM port
One HDMI port
One VGA out port
Four USB (2.0)
One IEEE 1394a port
One RJ-45 networking port (LAN)
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
Internal connectors
One IDE connector
One floppy drive connector
One ATX 24-pin power connector
One ATX 4-pin +12v power connector
Four Serial ATA connectors
One IEEE 1394a connector
One CPU fan connector
One PC fan connector
One COM2 connector
One front panel audio connector
One PC panel connector
Three USB connectors supporting 2.0 ports
Lieferumfang

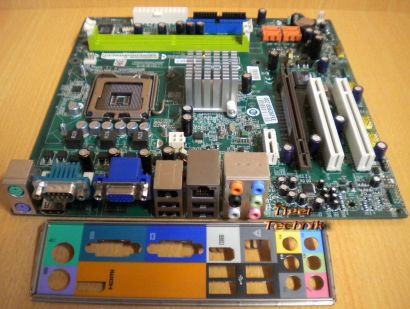

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
