Produktbeschreibung

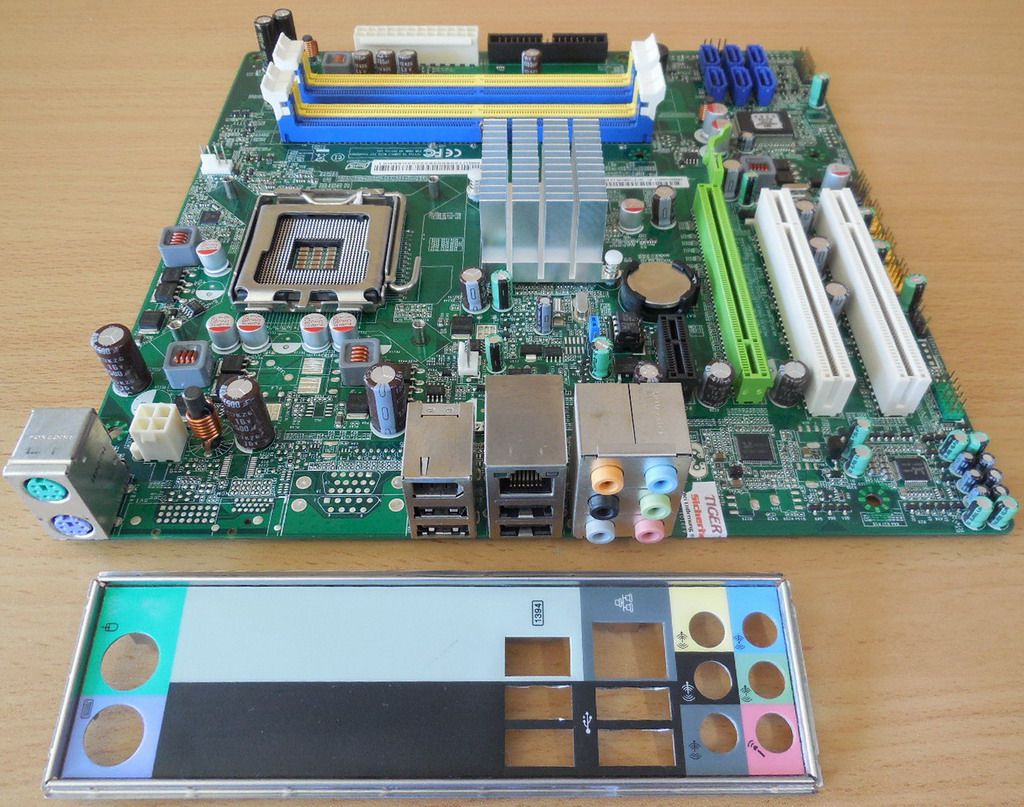

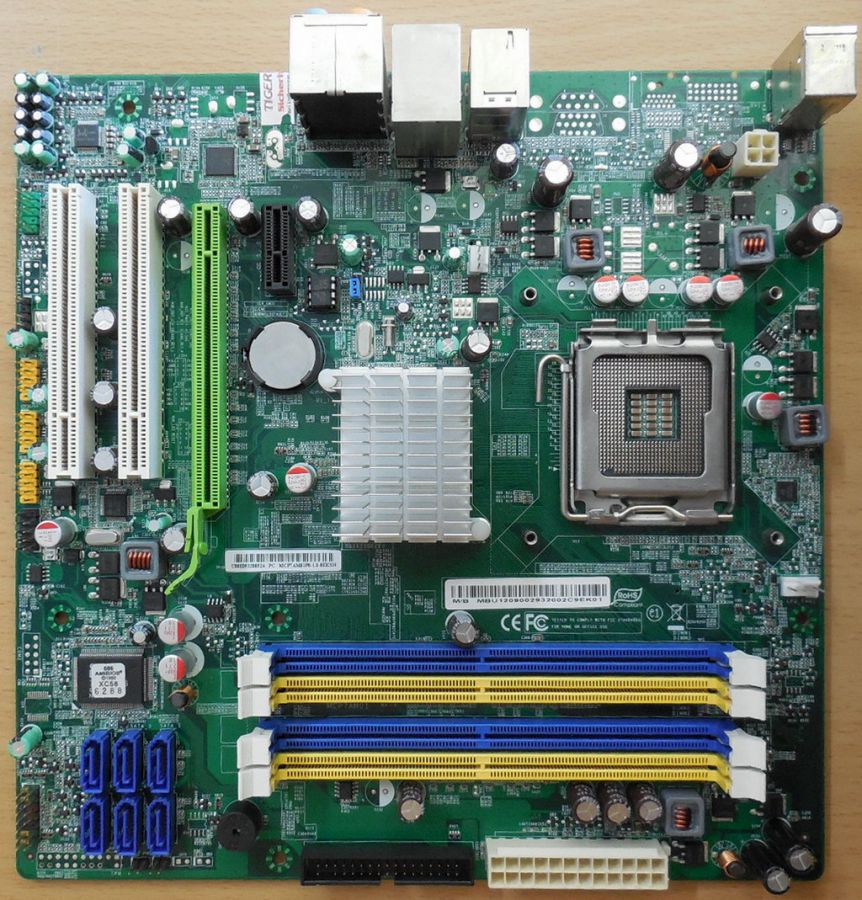

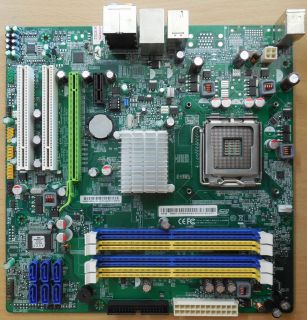

Acer Aspire Packard Bell iMedia MB.U1209.002 MCP7AM01P8-1.0-8EKSH Mainboard + Blende
Part No. MB.U1209.002 (MBU1209002)
z.B. für einige Acer Aspire oder Packard Bell iMedia Geräte geeignet
Technische Daten
CPU/Processor
Socket: 775
Intel® Core™2 Quad processor (up to 1333 MHz FSB); Intel® Core™2 Duo processor (up to 1333 MHz FSB); Intel® Pentium® processor; Intel® Celeron® processor
Memory
Dual Channel DDR2 800/667/533; Unbuffered non-ECC DIMM; Support 4x DDRII DIMM (8 GB Maximum capacity)
Steckplätze
1x PCI Express® x16 Slot, 1x PCI Express® x1 Slot, 2x PCI Slot
Onboard Audio
Realtek ALC888S HD 7.1 Audio
Onboard LAN
Realtek 10/100/1000 Gigabit Ethernet LAN
Floppy Disk Drive
One slot, 1.44MB/3 mode 3.5" devices support
SATA Interface
6 x SATA II 3Gb/s connectors for up to 6 SATA devices
USB
10 x USB2.0/1.1 (Rear 4 ports, Front 6ports)
1394a
1x back panel and 1x via 1394 header
Buzzer
One onboard buzzer
Back panel I/O
PS/2 keyboard (purple)
PS/2 mouse (green)
Four USB (2.0)
One IEEE 1394a port
One RJ-45 networking port (LAN)
Audio ports:
line in (light blue)
line out (lime)
microphone (pink)
side speaker out (gray)
rear speaker out (black)
center/subwoofer (yellow orange)
Internal connectors
One floppy drive connector
One ATX 24-pin power connector
One ATX 4-pin +12v power connector
Six Serial ATA connectors
One IEEE 1394a connector
One CPU fan connector
One System fan connector
One front panel audio connector
One front panel connector
One Speaker connector
Three USB connectors supporting 2.0 ports for up to 6 ports
Form factor
Micro ATX size 245x245mm (9.6" x 9.6")
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
