Acer MG43M Ver1.0 Mainboard +Blende MSI MS-7607 Extensa E470 Veriton M480* m922

Acer MG43M Ver 1.0 Mainboard + Blende MSI MS-7607 Intel G43 VGA DVI Extensa E470 Veriton M480

Technische Daten

CPU/Processor

Socket: 775

FSB: 1333/1066/800 MHz

Intel® Core™2 Quad processor; Intel® Core™2 Duo processor; Intel® Pentium® Dual-Core processor; Intel® Pentium® processor; Intel® Celeron® processor

Chipset

Intel G43 Express / Intel ICH10R

Memory

4 x DDR3 800(PC3-6400)/1066(PC3-8500) DIMM Steckplätze für non-ECC unbuffered DIMMs; Max. 8GB; Dual Channel unterstützt

VGA

Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500)

Intel® Dynamic Video Memory Technology 5.0 (Intel® DVMT 5.0) support

Intel® Clear Video Technology, Microsoft® DirectX® 10 support

Steckplätze

1x PCI Express® x16 Slot (Gen2.0), 1x PCI Express® x1 Slot, 2x PCI Slot

Onboard Audio

Realtek ALC662 HD 5.1-channel Audio

Onboard LAN

Marvell 88E8071 Gigabit Ethernet LAN 10/100/1000 Mbits

Storage

6 x SATA II 3Gb/s connectors for up to 6 SATA devices

USB

12 x USB2.0/1.1 (Rear 6 ports, Intern 3 headers for additional 6 ports)

I/O Controller

Super I/O ITE8720

Buzzer

1 x onboard buzzer

Back panel I/O

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x VGA Sub-D

1 x DVI

1 x Seriell RS232 COM port

6 x USB2.0 ports

1 x RJ-45 networking port (LAN)

5.1-channel Audio ports: line in (light blue); line out (lime); microphone (pink)

Internal connectors

6 x Serial ATA connectors

1 x Floppy Disk Drive connector

1 x COM2 connector

1 x LPT Printer connector

1 x CPU fan connector (4-pin)

1 x System fan connector (3-pin)

1 x Front Audio connector

1 x Front Panel connector

1 x SPDIF-Out connector

3 x USB connectors supporting 2.0 ports for up to 6 additional ports

1 x JSP11 connector

1 x OBR connector

1 x TPM connector

1 x Internal Speaker connector

1 x Chassis Intrusion connector

1 x CMOS Jumper

ATX 24-pin power connector

ATX 4-pin +12v power connector

Bios

AMI Kernel with Acer Skin

Form factor

Micro ATX size; ca. 244mm x 244mm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

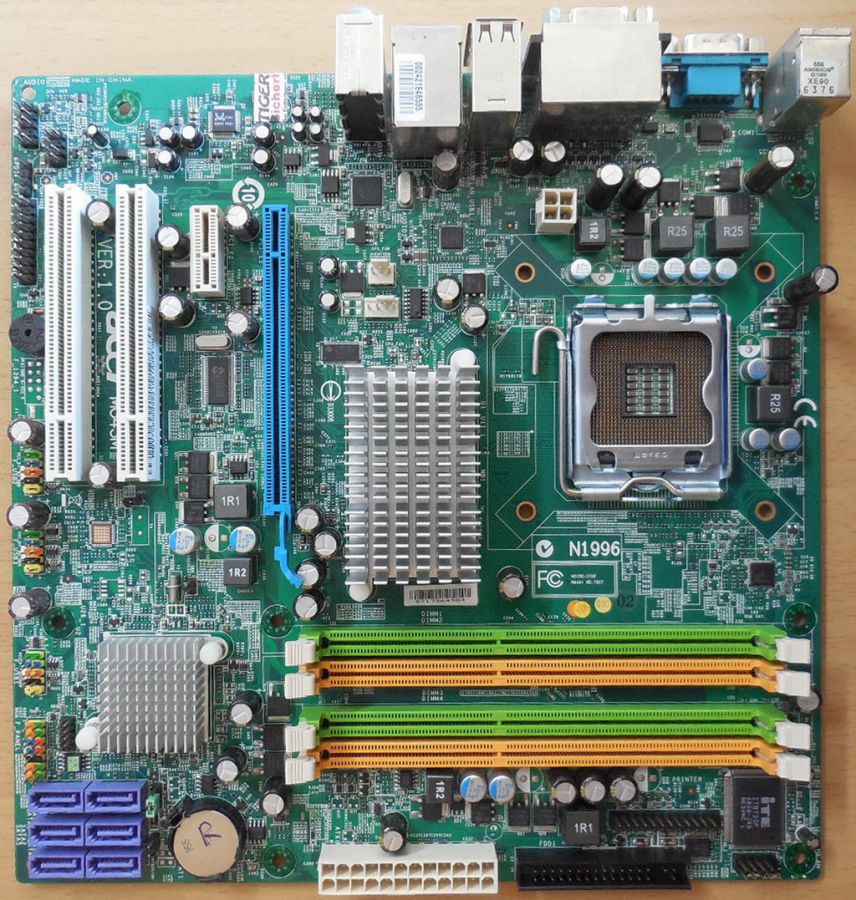

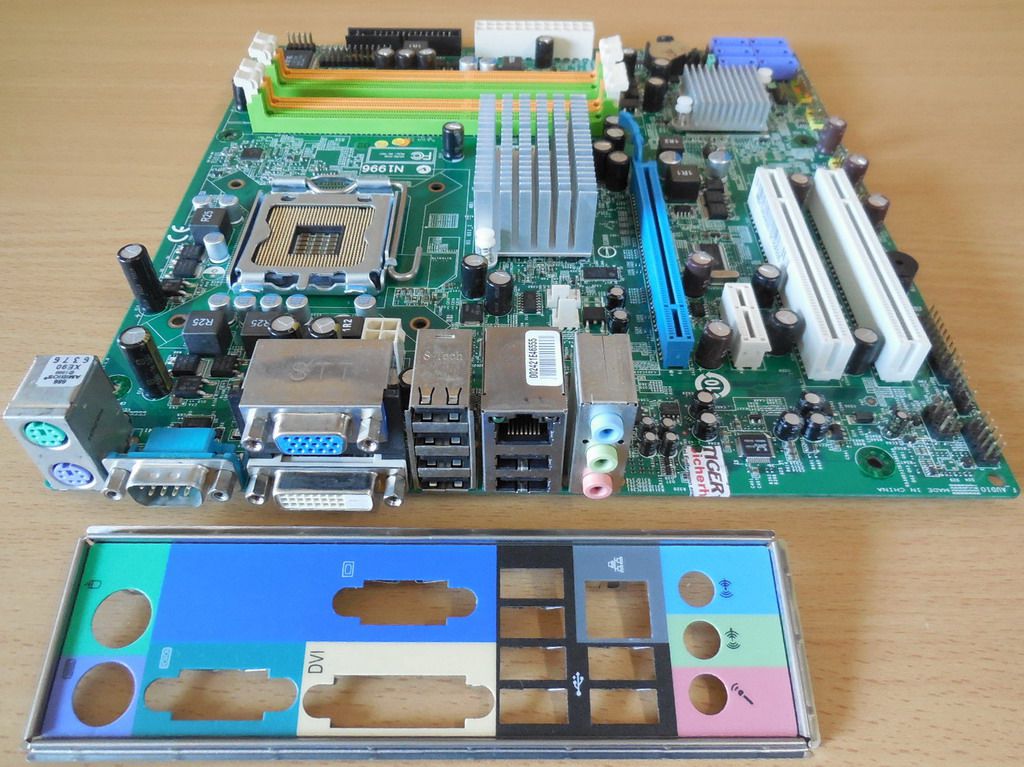

Abbildung ähnlich
