Produktbeschreibung

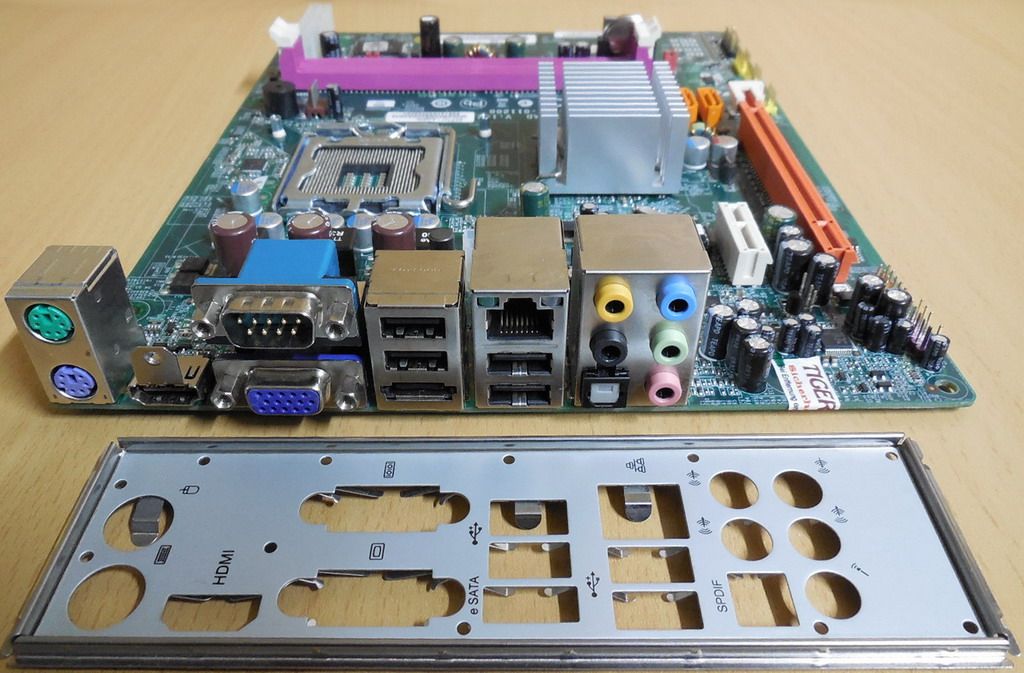

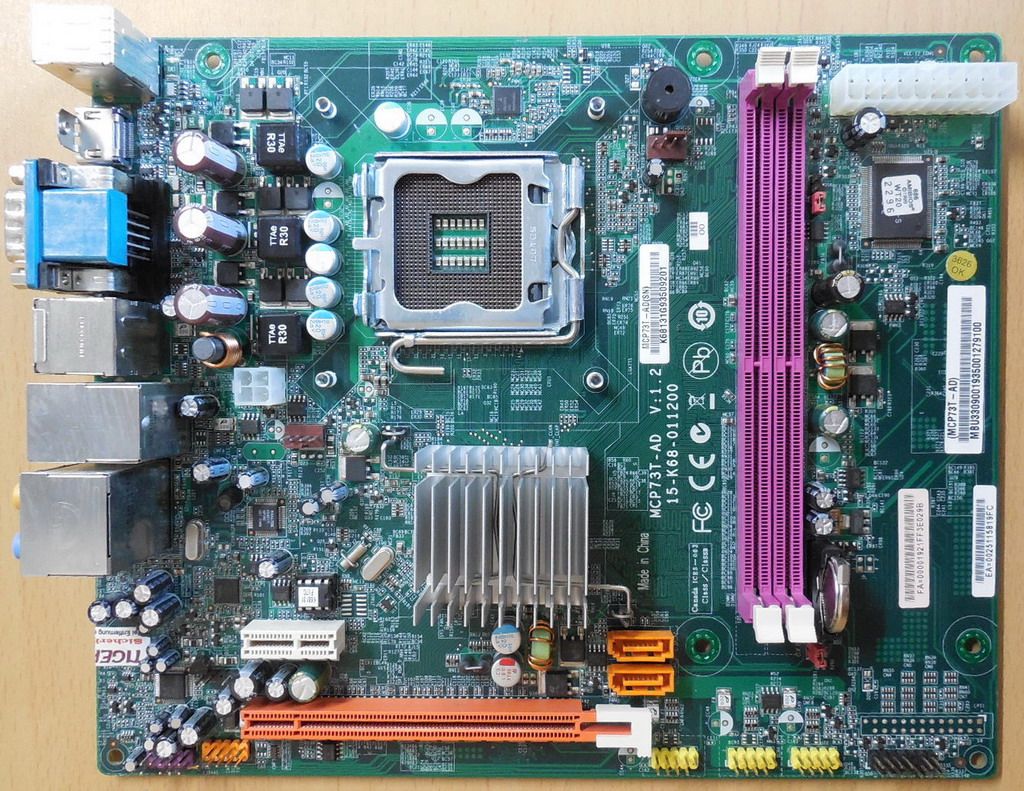

Acer X1700 Mainboard MCP73T-AD V1.2 Sockel 775 + Blende PCIe x16 SATA DDR2
Technische Daten
CPU
Supports Socket 775 for Intel® Pentium 4, Pentium D, Celeron D, Core 2 Duo and Core 2 Quad processors
Supports FSB 1333/1066/800/533MHz
Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control
Supports Hyper-Threading (HT) Technology
Chipset
nVidia NVIDIA MCP73PV
Grafik
nVidia GeForce 7100 mit HDMI und VGA
Main Memory
Supports two unbuffered 240-pin DIMM of 1.8 Volt DDR2 SDRAM
Supports up to 4GB memory size
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
On-Board IDE
Serial ATA/ATA II controller integrated. Can connect up to 2 Serial ATA drives
Audio
Realtek Chip integrated by nVidia chipset
6-channel Audio 5.1
Realtek RTL8211CL LAN
Supports 10/100/1000 Gigabit Ethernet
Internal I/O Connectors
1 x ATX 20-Pin power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU fan connector
1 x 4-pin System fan connector
1 x SPDIF connector
1 x Clear CMOS jumper
1 x General Purpose Input/Output jumper
1 x Firewire IEEE1394 connector
3 x USB 2.0 connector support additional 6 ports
1 x Front panel audio connector
1 x Front panel connectors
2 x Serial ATA device connectors
1 x Buzzer
Back Panel I/O Ports
1 x Serial port (COM 1)
1 x VGA
1 x HDMI
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O (6 in 1) with optical SPDIF
1 x e-SATA
4 x USB 2.0
1 x RJ45 LAN jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.
Dimension
Small Form Faktor für Acer Aspire X1700, Acer Aspire X1800, PackardBell iMedia S1710, iMedia S3720 X3575GE oder baugleich
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
