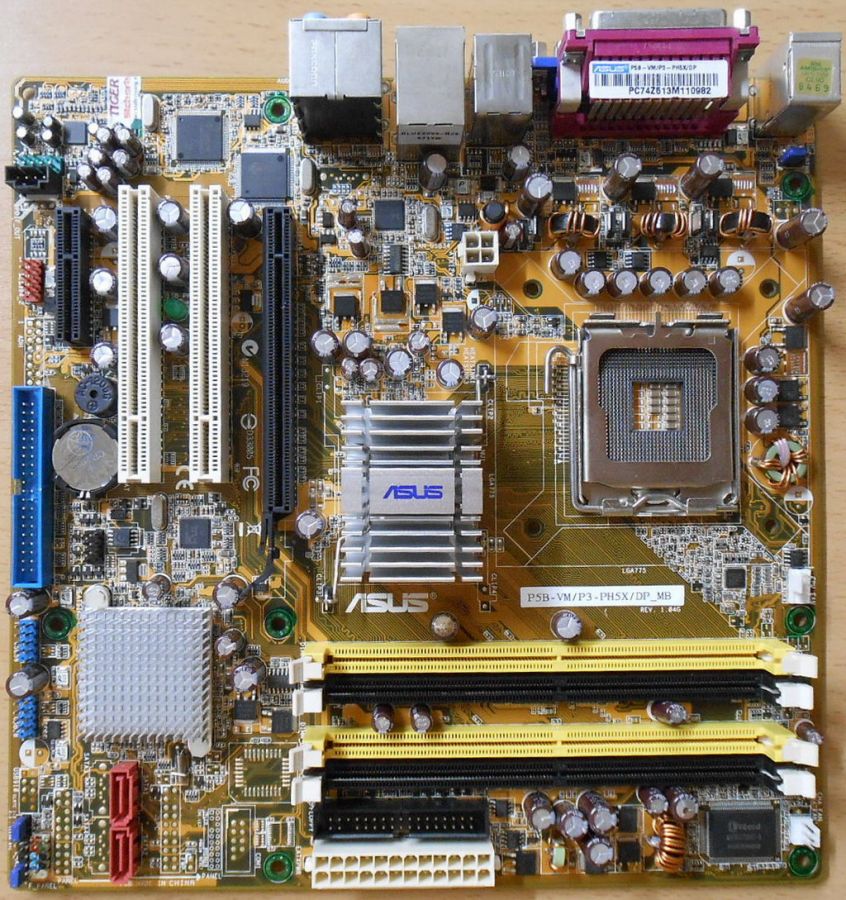

Asus P5B-VM Rev 1.04G P3-PH5X Mainboard Sockel 775 Intel G965 VGA LAN DDR2*m733

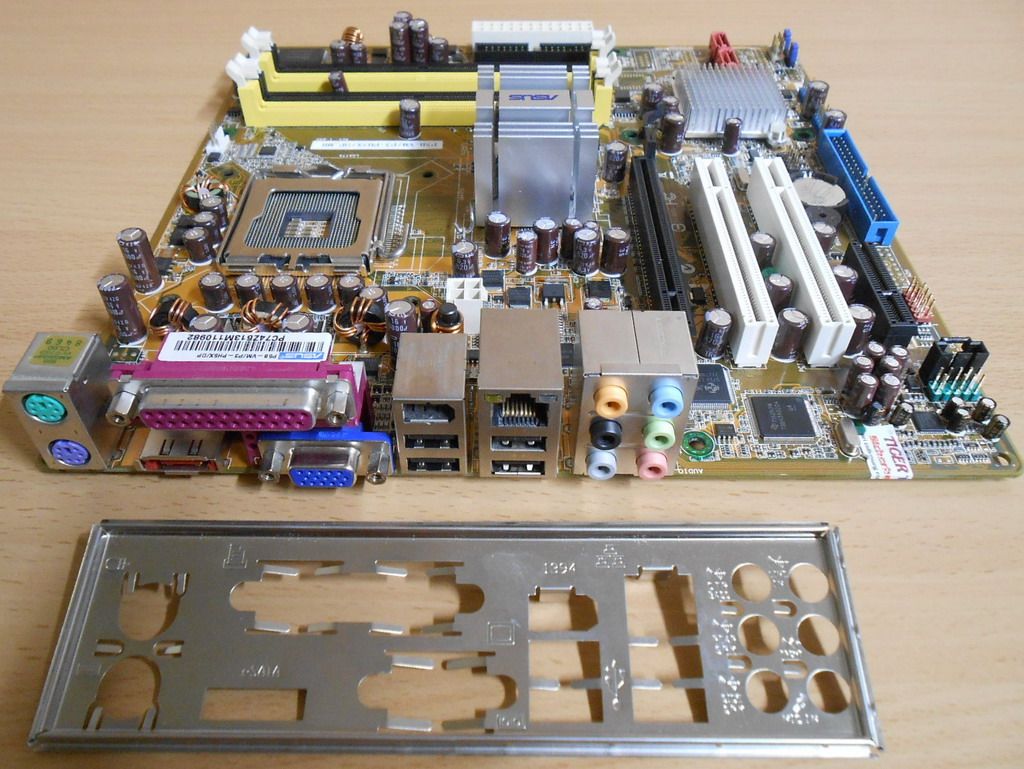

Asus P5B-VM Rev 1.04G P3-PH5X Mainboard + Blende

aus P3-PH5X Mini-PC Sockel 775 Intel G965 eSATA

PCI-e VGA Audio LAN DDR2 SATA2 IDE IEEE1394 Firewire

Technische Daten

CPU

Intel® Quad-core CPU Ready

LGA775 socket for Intel® Core™2 Extreme / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D Processors

Compatible with Intel 05B/05A/06 processors

Intel Hyper-Threading Technology ready

* Refer to the Website of Asus for Intel CPU support list

* Please update the latest BIOS to support Intel Quad-core CPU

Chipsatz

Intel G965 / ICH8 with Intel® Clear Video Technology

Front Side Bus

1066 / 800 / 533 MHz

Memory

4 x DIMM, max. 8GB, DDR2 800* / 667 / 533 MHz, non-ECC, un-buffered memory

Dual channel memory architecture

* Refer to the Website of Asus or user manual for Memory QVL (Qualify Vendor List)

Expansion Slots

1 x PCI-E x16

1 x PCI-E x4

2 x PCI 2.2

VGA

Intel® Graphics Media Accelerator X3000 (Intel® GMA X3000) integrated

High Definition Video Processing with max. resolutions to 2048 x 1536 bpp(@ 75Hz)

Max. shared memory of 256MB

Support Microsoft® DX 9, OpenGL 1.5, Pixel Shader 3.0

Storage

Southbridge

- 2 x SATA 3.0 Gb/s ports

JMicron® JMB363 PATA and SATA controller

- 1 x UltraDMA 133/100/66/33 for up to 2 PATA devices

- 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)

LAN

Realtek® PCI-E Gigabit LAN controller

Audio

ADI® AD1988 8-channel High Definition Audio CODEC

- Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking

- Coaxial S/PDIF out port onboard

- ASUS Noise Filter

IEEE 1394

TI® 1394a controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)

USB

8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS Quiet Thermal Solution:

- ASUS AI Gear

- ASUS AI Nap

- ASUS Advanced Q-Fan

ASUS Crystal Sound:

- Noise filter

ASUS EZ DIY:

- ASUS Q-Connector

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Other ASUS Special Features

ASUS C.P.R.(CPU Parameter Recall)

ASUS MyLogo 2

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel port

1 x External SATA

1 x VGA port

1 x IEEE1394a

1 x RJ45 port

4 x USB 2.0/1.1

8-Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector for two devices

2 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x IEEE1394a connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

BIOS

8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL

Form Factor

uATX Form Factor, 9.6"x 9.6"(24.5cm x 24.5cm)

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
