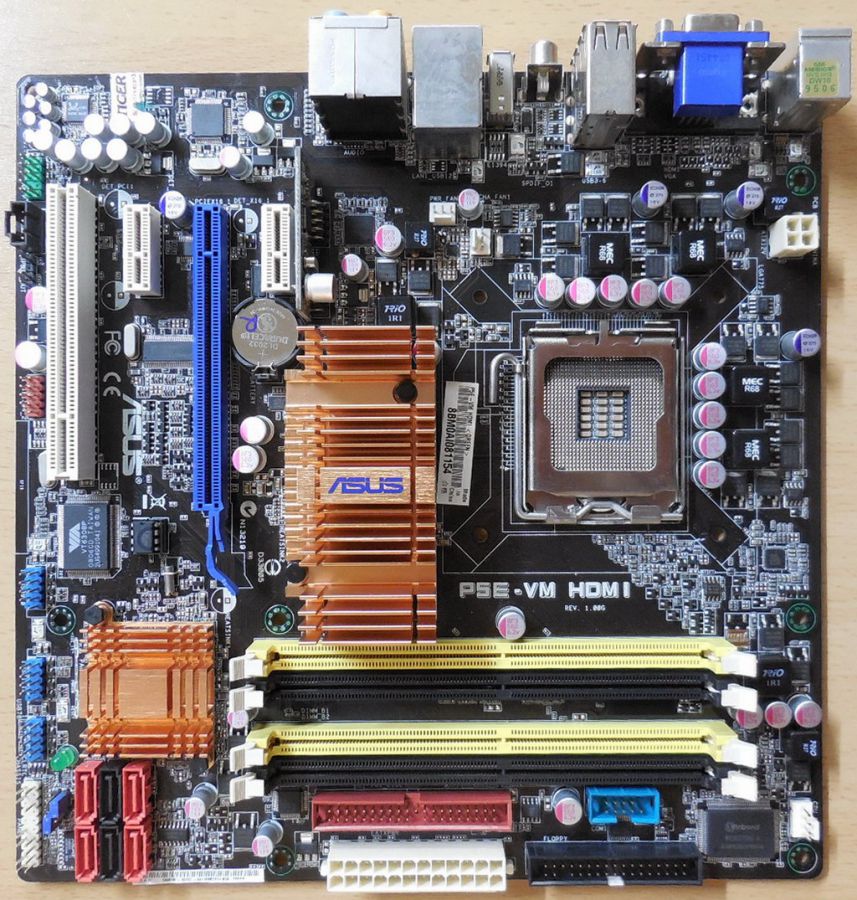

Asus P5E-VM HDMI Rev1.00G Mainboard +Zubehör Sockel 775 Intel G35 DDR2 PCIe*m868

Asus P5E-VM HDMI Rev 1.00G Mainboard + Zubehör Sockel 775 Intel G35 DDR2 PCIe

Technische Daten

CPU

LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm Multi-Core CPU

Chipsatz

Intel® G35 / ICH9R support Intel® Fast Memory Access Technology

Front Side Bus

1333 / 1066 / 800 MHz

Memory

4 x DIMM, max. 8GB, DDR2 800 / 667 MHz, non-ECC, un-buffered memory

Dual channel memory architecture

Expansion Slots

1 x PCIe x16

2 x PCIe x1

1 x PCI

VGA

Integrated Intel® Graphics Media Accelerator X3500

Dual VGA output support: HDMI/DVI-D and RGB

Supports RGB with max. resolution 2048 x 1536@75Hz

Supports HDMI with max. resolution 1920 x 1200@60Hz

Supports DVI with max. resolution 1920 x 1200@60Hz

Maximum shared memory of 384 MB

Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0 (*The DirectX® 10 driver will be provided by the chipset vendor later.)

Storage

by Southbridge

6 x SATA 3.0 Gb/s ports

Intel Matrix Storage Technology Support RAID 0,1,5,10

by JMicron® JMB368 PATA controller

1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

Atheros L1 PCI-E Gigabit LAN controller

Audio

Realtek® ALC883, 8-channel High-Definition Audio CODEC

ASUS Noise Filter

Support Jack-Sensing, Enumeration, Multi-streaming

Coaxial S/PDIF out ports at back I/O

IEEE 1394

VIA VT6308P controller supports 2 x 1394a ports (one at midboard; one at back panel)

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS AI Lifestyle: ASUS Splendid

ASUS Quiet Thermal Solution: ASUS AI Gear 2; ASUS AI Nap; ASUS Q-Fan 2; ASUS Fanless Design

ASUS Crystal Sound: ASUS Noise Filter

ASUS EZ DIY: ASUS Q-Connector; ASUS O.C. Profile; ASUS CrashFree BIOS 3; ASUS EZ Flash 2

Other ASUS Special Features

ASUS MyLogo 3

Overclocking Features

Precision Tweaker 2: vCore Adjustable CPU voltage at 0.0125V increment; vChipset (N.B.): 24-step chipset voltage control; vDRAM: 33-step DRAM voltage control; vFSB: 16-step FSB voltage control; vCPU PLL: 16-step CPU PLL voltage control

SFS (Stepless Frequency Selection): FSB tuning from 200MHz up to 800MHz at 1MHz increment; Memory tunning from 533MHz up to 1333 MHz; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA port

1 x HDMI port

1 x Coaxial SPDIF Out

1 x IEEE1394a

1 x LAN RJ45 port

6 x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector

6 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x IEEE1394a connector

1 x COM connector

Front panel audio connector

1 x S/PDIF Out connector

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

System Panel

BIOS

8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)

Lieferumfang

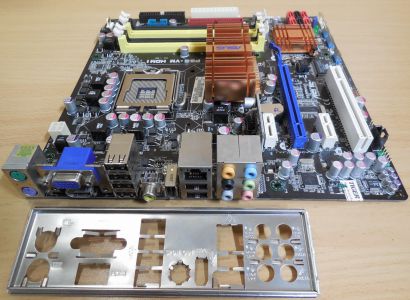

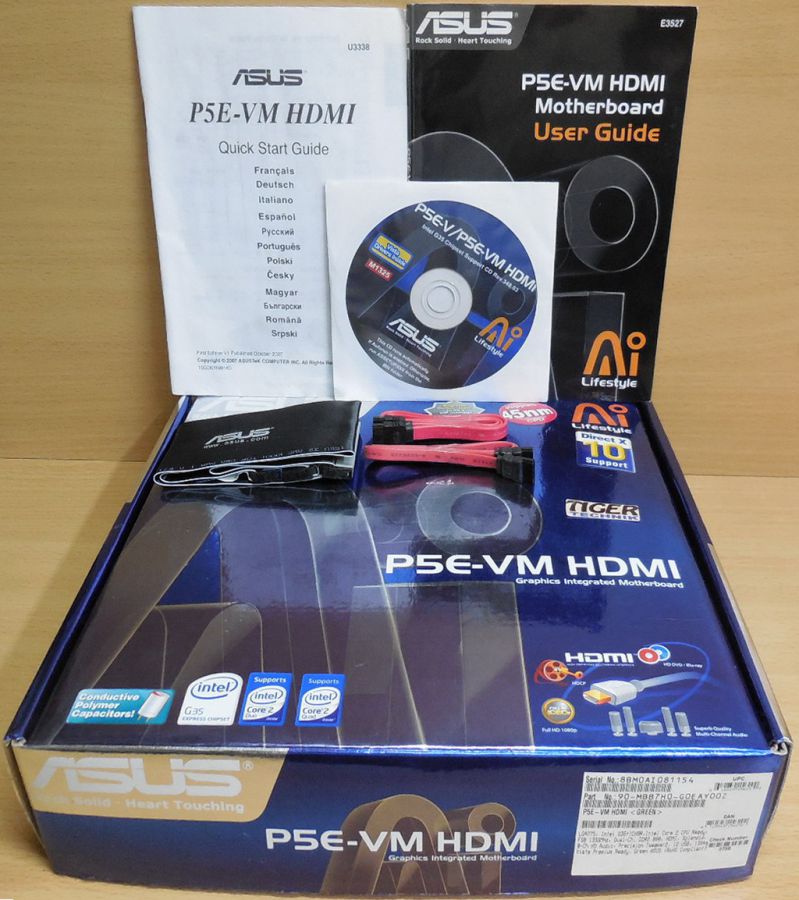

Das Mainboard inkl. Blende + 2x SATA Datenkabel + 1x IDE Kabel + Benutzerhandbuch + Treiber-CD + Quick Start Guide * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
