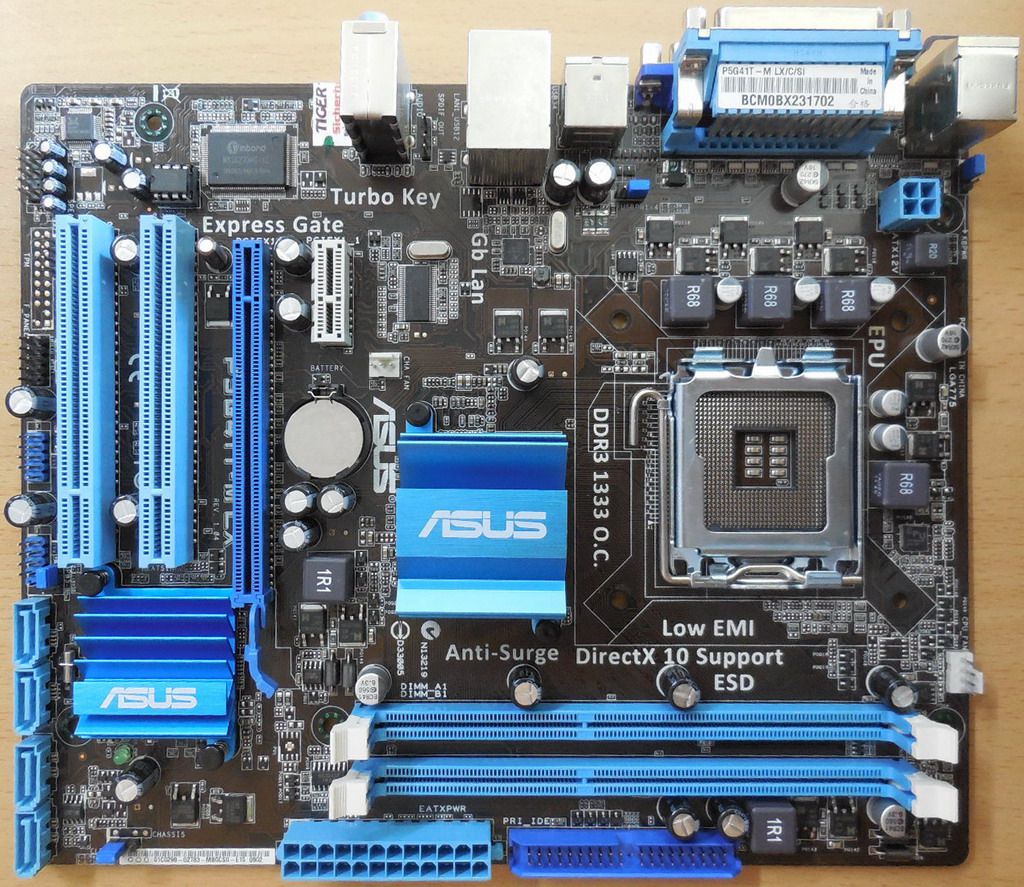

Asus P5G41T-M LX Rev 1.01G Mainboard +Blende Sockel 775 Intel G41 VGA DDR3* m562

Asus P5G41T-M LX Rev 1.01G Mainboard +Blende Sockel 775 Intel G41 VGA DDR3

Technische Daten

CPU

Intel Socket 775 Core™2 Quad / Pentium® dual-core / Core™2 Extreme / Core™2 Duo / Celeron dual-core / Celeron® Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® 45nm Multi-Core CPU

Refer to the Asus Website for Intel CPU support list

Chipsatz

Intel G41 / ICH7

Front Side Bus

1333 / 1066 / 800 MHz

Memory

2 x 240-pin DIMM, 8 GB, DDR3 1333*/1066/800 Non-ECC, Un-buffered Memory

Dual Channel memory architecture

Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe x16

1 x PCIe x1

2 x PCI

VGA

Integrated Intel GMA X4500 graphics

Maximum shared memory of 1G

Supports RGB with max. resolution 2048 x 1536 (@75Hz)

Supports Microsoft® DirectX® 10

Storage

Southbridge

1 x UltraDMA 100/66/33

4 x SATA 3 Gb/s ports

LAN

PCIe GbE 10/100/1000 Mbits Ethernet LAN

Audio

ALC887 8-Channel AUDIO CODEC

Supports Jack-detect and Multi-Streaming teconologies

Supports S/PDIF out interface

Choose the chassis with HD audio module in front panel to support 8-Channel audio output

USB

8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS MyLogo 2; ASUS EZ Flash 2; ASUS CrashFree BIOS 3; ASUS Q-Fan; ASUS Anti-Surge; ASUS EPU-L; ASUS Express Gate; Turbo Key; AI NET2

Overclocking Features

SFS (Stepless Frequency Selection):   FSB tuning from 200MHz to 800MHz 1MHz increment

Overclocking Protection:   ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x Parallel

1 x D-Sub

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45 port

4 x USB 2.0/1.1

1 x COM port

3 x Audio jacks

Internal I/O Connectors

2 x USB connectors supports additional 4 USB 2.0 ports

1 x High Definition front panel audio connector

1 x S/PDIF Out connector

1 x System Panel

1 x Internal Speaker connector

1 x IDE connector

4 x SATA connectors

1 x CPU Fan connector (4-pin)

1 x Chassis Fan connector (3-pin)

24-pin EATX power connector

4-pin ATX 12V Power connector

BIOS

8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Form Factor

uATX Form Factor; 9.6 inch x 7.9 inch ( 24.4 cm x 20.1 cm )

Lieferumfang

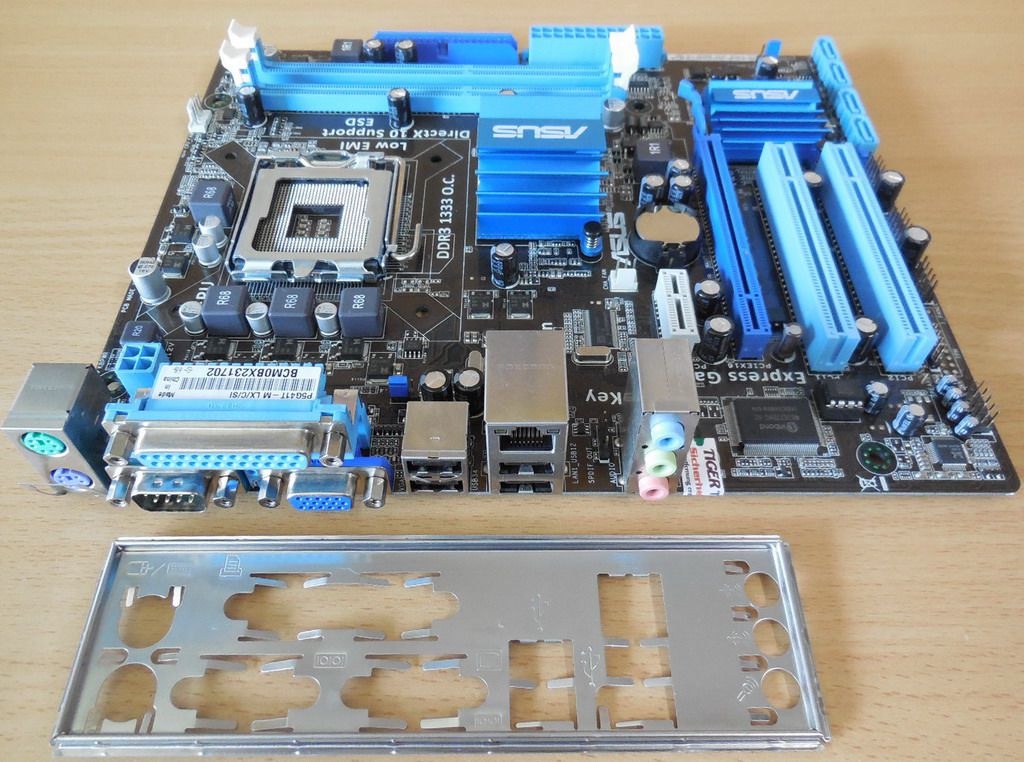

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
