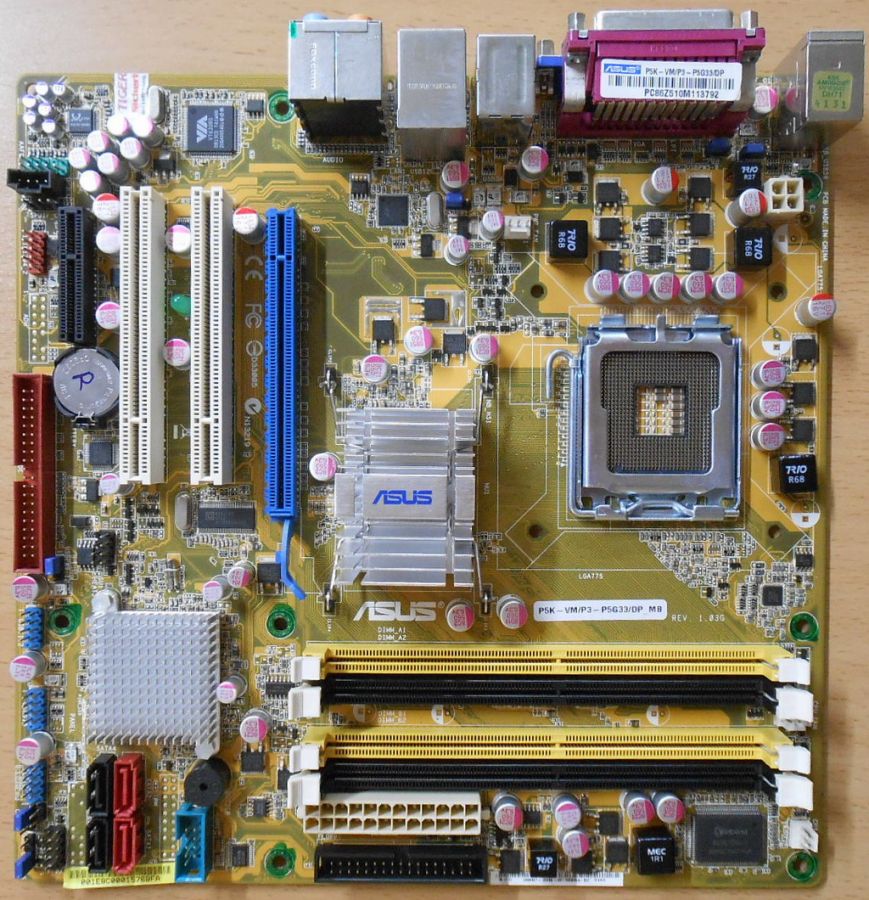

Asus P5K-VM Rev 1.03G P3-P5G33 Mainboard Sockel 775 Intel G33 VGA LAN DDR2*m732

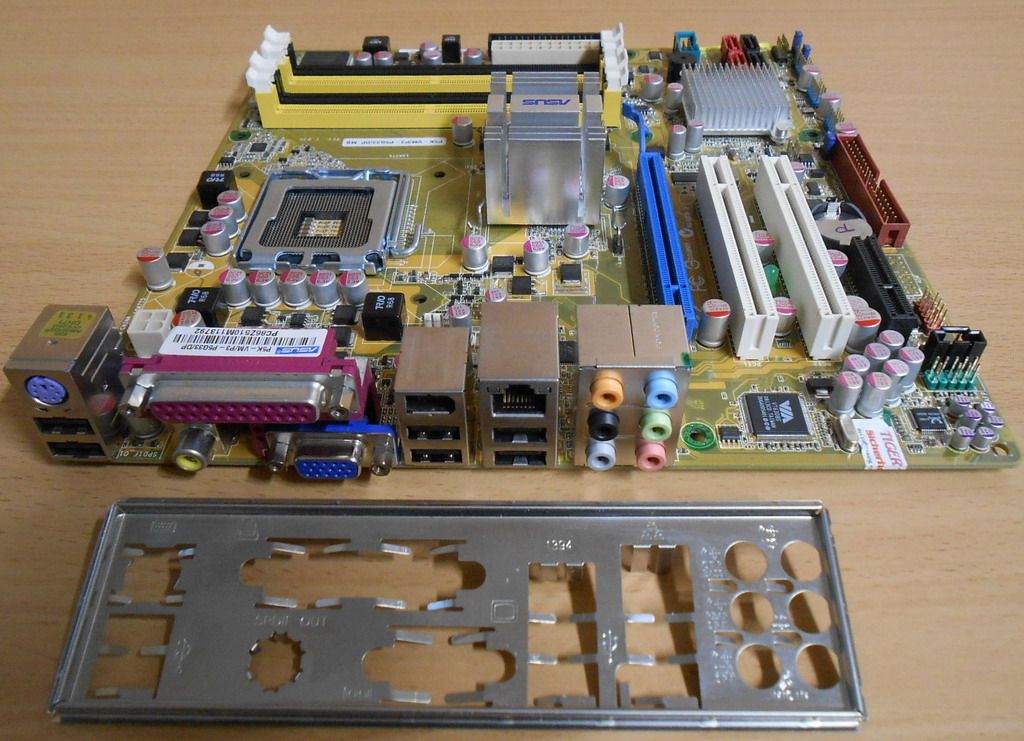

Asus P5K-VM Rev 1.03G P3-P5G33 Mainboard + Blende

aus P3-P5G33 Mini-PC Sockel 775 Intel G33

PCI-e VGA Audio LAN DDR2 SATA2 IDE IEEE1394 Firewire

Technische Daten

CPU

LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm Multi-Core CPU

*Please update the latest BIOS to support Intel 45nm CPU

Chipsatz

Intel® G33 / ICH9 with Intel® Fast Memory Access Technology

Front Side Bus

1333 / 1066 / 800 MHz

Memory

4 x DIMM, max. 8GB, DDR2 1066*/800 / 667 MHz, non-ECC, un-buffered memory

Dual channel memory architecture

* The chipset officially supports the memory frequency up to DDR3 1066MHz/DDR2 800. Due to the tuning by ASUS exclusive technology, this motherboard natively supports up to DDR3 1333/DDR2 1066MHz. Please refer to the Website of Asus or user manual for Memory QVL

VGA

Intel® Graphics Media Accelerator 3100 integrated

High-definition video processing with a maximum resolution of 2048 x 1536 bpp @75 Hz

Maximum shared memory of 256 MB

Supports Microsoft® DirectX® 9, OpenGL® 1.5, Pixel Shader 2.0

Expansion Slots

1 x PCI-E x16

1 x PCI-E x4

2 x PCI

Storage

Southbridge

- 4 x SATA 3.0 Gb/s ports

JMicron® JMB368 PATA and SATA controller

- 1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

Marvell88E8056® PCI-E Gigabit LAN controllers

PCIe Gb LAN controller featuring AI NET2

Audio

Realtek ALC 883, 8-channel High-Definition Audio CODEC

- Support Jack-Sensing, Enumeration, Multi-streaming

- Coaxial S/PDIF out ports at back I/O

- ASUS Noise Filter

IEEE 1394

VIA VT6308S controller supports 2 x IEEE 1394a ports (one at midboard; one at back panel)

USB

12 x USB 2.0 ports (6 ports at mid-board, 6ports at back panel)

ASUS AI Lifestyle Features

ASUS AI Lifestyle Features:

- AP Trigger

- ASUS AI Gear2

- ASUS AI Nap

- ASUS Q-Fan

ASUS Crystal Sound:

- ASUS Noise Filter

ASUS EZ DIY:

- ASUS Q-Connector

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Overclocking Features

ASUS Super Memspeed Technology

vCore: Adjustable CPU voltage at 0.0125V increment

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 800MHz at 1MHz increment

- Memory tunning from 667MHz up to 1333MHz for DDR2

- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection:

- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x Parallel port

1 x S/PDIF Out (Coaxial)

1 x IEEE1394a

1 x RJ45 port

6x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

4 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x IEEE1394a connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

1 x AP Trigger connector

CD audio in

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

System Panel(Q-Connector)

BIOS

8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

uATX Form Factor, 9.6"x 9.6" (24.4cm x 24.4cm)

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
