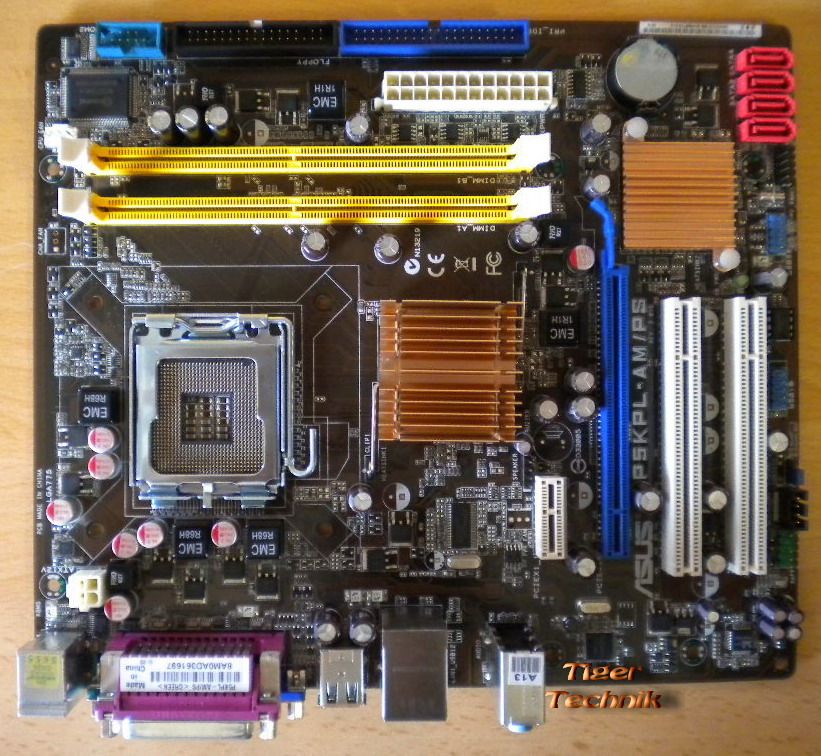

Asus P5KPL-AM/PS Rev. 2.01G Mainboard Sockel 775 VGA + Blende* m208

Asus P5KPL-AM/PS Rev. 2.01G Mainboard

Sockel 775 VGA + Blende

Technische Daten:

CPU:

Intel® Socket 775 for Intel® Core™2 Extreme/Core™2 Quad / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D / Celeron® Processors

Compatible with Intel® 05B/05A/06 processors

Intel® Hyper-Threading Technology ready

* Refer to www.asus.com for Intel CPU support list

Chipset:

Intel® G31 Intel ICH7

Front Side Bus

1600*/1333/1066/800 MHz *Overclock speed

Memory:

2 x DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)

**When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots:

1 x PCIe x16

1 x PCIe x1

2 x PCI

VGA:

Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)

Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz

Storage:

Southbridge

1 xUltraDMA 100/66/33

4 xSATA 3 Gb/s ports

LAN:

Realtek RTL8111C Gigabit LAN

Audio:

Realtek ALC662 6 -Channel High-Definition Audio CODEC

Anti-Pop Function

Jack-detect & Multi-Streaming

Support S/PDIF Out connector

USB:

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

ASUS Unique Features

ASUS CrashFree BIOS 3

ASUS Q-Fan

ASUS EZ Flash 2

ASUS MyLogo 2

Power Stabilizer

Back Panel I/O Ports:

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA

1 x COM

1 x Parallel port

1 x LAN (RJ45) port

4 x USB 2.0

6 Channel Audio I/O

Internal I/O Connectors:

2 x USB connectors support additional 4 USB ports

4 x SATA connector

1 x IDE connector

1 x Floppy disk connector

1 x internal speaker connector

1 x CPU Fan connector

1 x High Definition front panel audio connector

1 x S/PDIF Out connector

1 x CD audio-in connector

24-pin EPS 12V Power connector

4-pin ATX 12V Power connector

1 x System panel connector

1 x COM connector

BIOS:

8 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.5

ACPI 2.0

Manageability:

WOL,PXE,RPL,WOR ,PME Wake Up

Form Factor:

uATX Form Factor

9.6 inch x 8.35 inch ( 24.4 cm x 21.2 cm )

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
