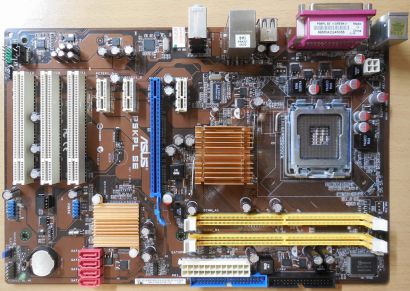

Asus P5KPL SE Rev 2.01G Mainboard +Blende Sockel 775 Intel G31 DDR2 PCIe* m864

Asus P5KPL SE Rev 2.01G Mainboard + Blende Sockel 775 Intel G31 DDR2 PCIe

Technische Daten

CPU

Intel® Socket 775 Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron

Support Intel next generation 45nm multi-core CPU

Intel Hyper-Threading Technology ready

Support Intel E64MT Technology

Support Enhanced Intel SpeedStep Technology (EIST)

Chipsatz

Intel® G31 + Intel ICH7

Front Side Bus

1600(O.C)/1333/1066/800 MHz

Memory

2 x 240-pin DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC, Un-buffered Memory

Dual Channel memory architecture

Expansion Slots

1 x PCIe x16

3 x PCIe x1

3 x PCI

Storage by ICH7 Southbridge

1 x UltraDMA 133/100

4 x SATA 3 GB/s

LAN

PCIe 10/100/1000 Gigabit Lan RTL 8111C

Audio

ALC662 High Definition Audio 6 -Channel CODEC

Audio Jack-detect Technology

USB

8 USB 2.0 ports

Overclocking Features

SFS (Stepless Frequency Selection) from 200MHz to 600MHz at 1MHz increment

ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS CrashFreeBIOS3; ASUS EZ Flash2; Q-Fan; ASUS MyLogo2; AI Net2

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x COM

1 x RJ45

4 x USB 2.0/1.1

6-channel Audio I/O

Internal I/O Connectors

Azalia High definition Analog Front panel Audio connector

System Panel connector

2 x USB 2.0 connector supports additional 4 USB 2.0 ports

CPU FAN connector

SPIDF Output connector

CD audio in connector

Speaker connector

24-pin EATX12V Power connector

4-pin ATX 12V Power connector

4 x SATA connectors

1 x IDE connector for up to 2 devices

1 x Floppy connector

BIOS

8 Mb Flash ROM

AMI BIOS, Special H/W write production, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0

Manageability

WOL by PME, WOR by PME, WOR by Ring

Form Factor

ATX Form Factor; 12" x 8" ( 30.5 cm x 20.3 cm )

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
