Asus P5L-VM1394 Rev 1.00G P3-PH4C Mainboard +Blende Sockel 775 LAN VGA PCIe*m731

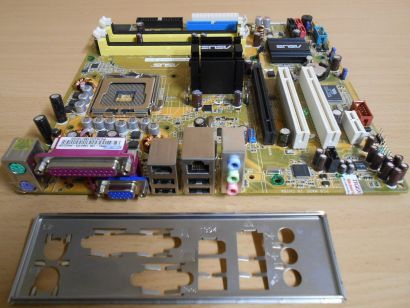

Asus P5L-VM1394 Rev 1.00G P3-PH4C Mainboard + Blende

aus P3-PH4C Mini-PC Sockel 775 Intel 945

PCIe VGA Audio GLAN DDR2 SATA2 IDE IEEE1394 Firewire

Technische Daten

CPU

Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron D Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm CPU

Support Intel® EM64T/EIST/Hyper-Threading Technology

Chipset

Intel 945G + Intel ICH7

Front Side Bus

1066/800/533 MHz

Memory

4 x 240-pin DIMM, Max. 4 GB, DDR2 667/533/400 Non-ECC, Un-buffered Memory

Dual Channel memory architecture

* Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.

VGA

Integrated Intel® Graphics Media Accelerator 950 Graphics

Max. resolution: 2048x1536 (at 75Hz)

Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440

Expansion Slots

1 x PCIe x16 slot for discrete graphics card

1 x PCIe x1

2 x PCI 2.2

Storage

Southbridge

1 x UltraDMA 100/66/33

4 x SATA 3 Gb/s ports

LAN

Attansic PCIe Gigabit LAN Controller

Audio

Realtek ALC883 High Definition Audio CODEC, 6 -Channel audio port

Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking

IEEE 1394a

VIA 6308 1394 controller supports 2 x 1394a ports (one at mid-board, one on the rear panel)

USB

8 x USB 2.0 ports

Special Features

ASUS MyLogo; ASUS EZ Flash 2; ASUS CrashFree BIOS 2; ASUS C.P.R.(CPU Parameter Recall); ASUS O.C. Profile

BIOS

4 Mb Flash ROM; DMI 2.0; AMI BIOS; PnP; WfM 2.0; SM BIOS 2.3

Manageability

WOL by PME,WOR by PME,Chasis Intrusion,PXE

Back Panel I/O Ports

1 x Parallel

1 x VGA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

6 -Channel Audio I/O

Internal I/O Connectors

2 x USB connectors supports additional 4 USB 2.0 ports

1 x Floppy disk drive connector

1 x IDE connector

4 x SATA connectors

1 x IEEE 1394a connector

1 x S/PDIF Out connector

1 x 4-pin ATX 12V Power connector

1 x 24-pin ATX Power connector

Front panel audio connector

COM connector

CD/AUX audio in

System Panel Connector

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
