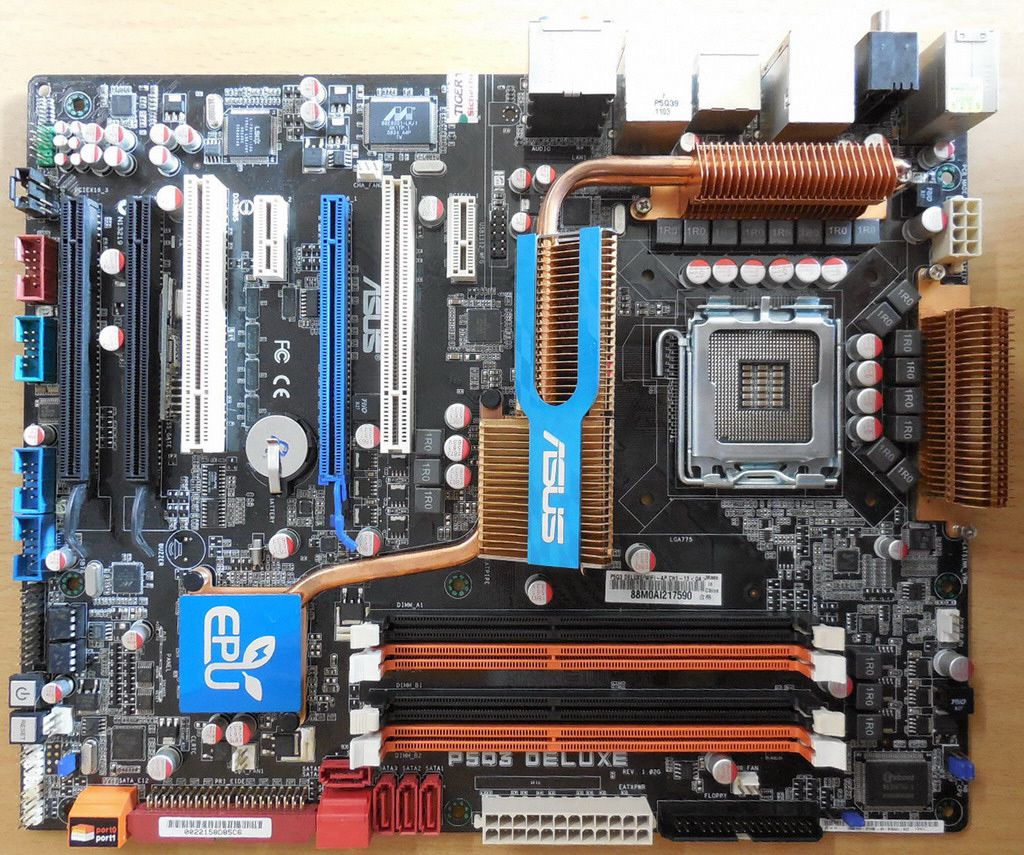

Asus P5Q3 Deluxe Rev1.02G Mainboard +Blende So 775 Intel P45 FSB1600 DDR3* m962

Asus P5Q3 Deluxe Rev 1.02G Mainboard + Blende Sockel 775 Intel P45 FSB1600 DDR3

Technische Daten

CPU

LGA775 socket for Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® dual-core / Celeron® dual-core / Celeron® Processors

Compatible with Intel® 05B/05A/06 processors

Supports Intel® 45nm Multi-Core CPU

Chipsatz

Intel P45 / ICH10R with Intel® Fast Memory Access (FMA) support

Front Side Bus

1600/1333/1066/800 MHz

Memory

4 x DIMM, 16 GB, DDR3 2000(O.C)/1600/1333/1066 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Refer to the Asus Website or user manual for the Memory QVL (Qualified Vendors Lists).

**DDR3 2000(O.C.)/1600, it is suggested to use one DIMM per channel

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

2 x PCI Express 2.0 x16 slots, support ATI CrossFireX™ technology at x8 link (PCIe x16_1 blue, PCIe x16_2 black*)

1 x PCI Express x16 slot at max. x4 link (black)

2 x PCI Express x1 slots

2 x PCI slots

*PCI Express x16_2 slot (black at max. x8 link)

CrossFire

Support ATI CrossFireX™ technology up to Quad CrossFireX

Storage

by Southbridge

6 x SATA 3 Gb/s ports

Intel® Matrix Storage Technology with RAID 0,1,5,10 support

by Marvell 88SE6121

1 x Ultra DMA 133 / 100 / 66 for up to 2 PATA devices

1 x External SATA 3Gb/s port (SATA On-the-Go)

by Silicon Image Sil5723 (Drive Xpert technology*):

2 x SATA 3Gb/s ports

Supports EZ Backup and Super Speed functions

*Drive Xpert function is available only when the hard disk drives are set as data drives.

Dual Gigabit LAN

Marvell 88E8056/88E8001® Gigabit LAN controller featuring AI NET2, Teaming, Redundant

Audio

ADI® AD2000B 8-channel High Definition Audio CODEC

- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking

- Coaxial / Optical S/PDIF out ports at back I/O

- ASUS Noise-Filtering

IEEE 1394

LSI® L-FW3227 controller supports 2 x IEEE 1394a ports (one at mid-board; one at back panel)

USB

10 USB 2.0 ports (4 ports at mid-board; 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Exclusive Features:

- ASUS WiFi-AP @n

- ASUS True 16-Phase Power Design

- ASUS Express Gate SSD

ASUS Power Saving Solutions:

- ASUS EPU-6 Engine

- ASUS AI Nap

ASUS Quiet Thermal Solutions:

- ASUS Fanless Design: heat pipe solution

- ASUS Fanless Design: Stack Cool 2

- ASUS Fan Xpert

ASUS Crystal Sound:

- AI Audio 2

- ASUS Noise Filtering

ASUS EZ DIY:

- ASUS Drive Xpert

- ASUS DieHard BIOS

- ASUS Q-Shield

- ASUS Q-Connector

- ASUS O.C. Profile

- ASUS EZ Flash 2

- AI Direct Link

- Onboard Switch

Overclocking Features

ASUS AI Booster Precision Tweaker 2

- vCore: Adjustable CPU voltage at 0.00625V increment

- vDIMM: 64-step DRAM voltage control

- vChipset (N.B.): 48-step Chipset voltage control

- vCPUPLL: 64-step reference voltage control

- vFSB Termination: 40-step voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 800MHz 1MHz increment

- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% Japan-made Solid Capacitor (5000 hrs VRM)

ASUS MyLogo 3

Back Panel I/O Ports

1 x PS/2 Keyboard / Mouse combo port

1 x Optical S/PDIF Output port

1 x Coaxial S/PDIF Output port

1 x IEEE 1394a port

1 x External SATA port

2 x Gigabit LAN (RJ45) ports

6 x USB 2.0/1.1 ports

8-channel Audio I/O ports

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports

1 x USB1112-WFG WiFi Modul connector

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

6 x SATA connectors (red)

2 x Drive Xpert SATA connectors (orange)

1 x 4-pin CPU Fan connector

3 x 3-pin Chassis Fan connectors

1 x 3-pin Power Fan connector

1 x IEEE1394a connector

1 x Front panel audio connector (AAFP)

1 x S/PDIF Out Header

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

8-pin ATX 12V Power connector

System Panel (Q-Connector)

1 x TPM connector

1 x Power On switch

1 x Reset switch

BIOS

16 Mb AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.4

Manageability

WOR by Ring, WOL by PME, WOR by PME, Chasis Intrusion, PXE

Form Factor

ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Lieferumfang

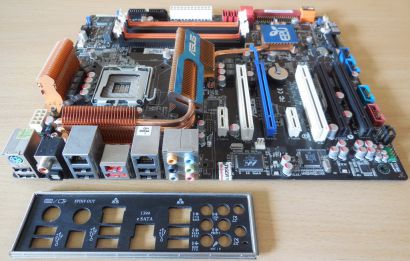

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
