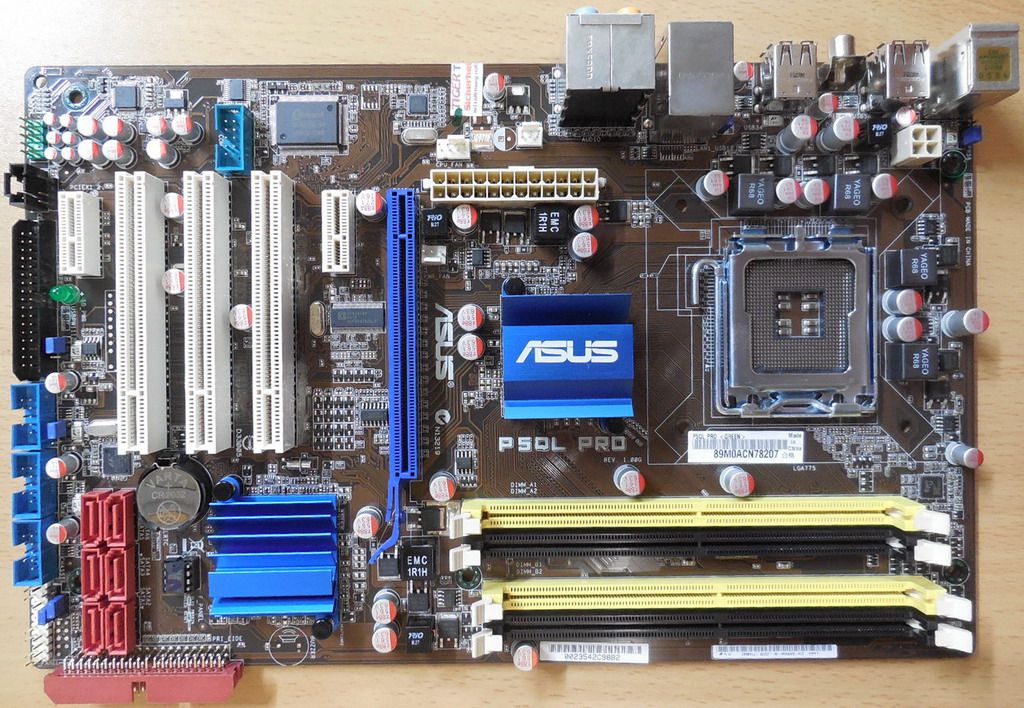

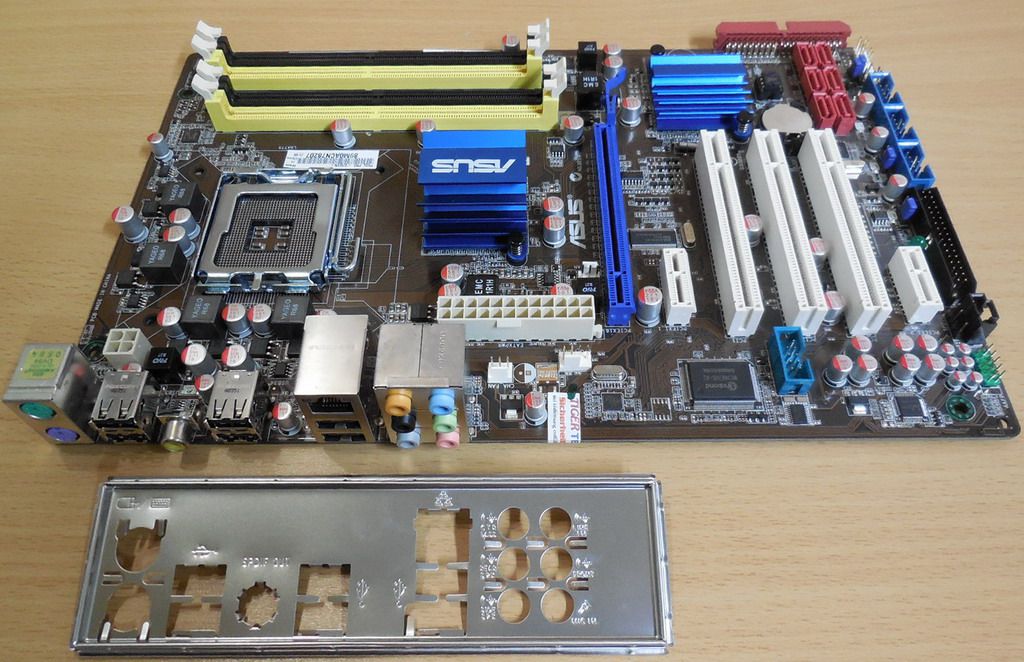

Asus P5QL Pro Rev1.00G Mainboard NEU OVP Sockel 775 Intel P43 PCIe DDR2 LAN*m819

Asus P5QL Pro Rev 1.00G Mainboard NEU OVP Sockel 775 Intel P43 PCIe DDR2 Gigabit LAN

Technische Daten

CPU

Intel Socket 775 Intel® Core™2 Extreme/Core™2 Quad/Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron® Processors

Compatible with Intel® 05B/05A/06 processors

Supports Intel® 45nm Multi-Core CPU

Chipsatz

P43 / ICH10 with Intel® Fast Memory Access Technology

Front Side Bus

*1600/1333/1066/800; *Overclock speed MHz

Memory

4 x DIMM, 16 GB, DDR2 1066/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

Refer to the Website of Asus or the user manual for the Memory QVL(Qualified Vendors Lidts).

**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16

2 x PCIe x1

3 x PCI

Storage

by Southbridge

6 x SATA 3 Gb/s ports

by Marvell 88SE6102

1 x UltraDMA 133/100/66 for up to 2 PATA devices

LAN

PCIe Gigabit LAN controller featuring AI NET2

Audio

Realtek ALC1200 8 -Channel High-Definition Audio CODEC

- Support Jack Detection and Multi-streaming

- Coaxial S/PDIF out ports at back I/O

- ASUS Noise Filter

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Power Saving Solution: ASUS EPU- 4 Engine; ASUS AI Nap

ASUS AI Life Features: ASUS Express Gate

ASUS Quiet Thermal Solution: ASUS Fan Xpert

ASUS Crystal Sound: ASUS Noise Filter

ASUS EZ DIY: ASUS Q-Connector; ASUS O.C. Profile; ASUS Q-Connector; ASUS CrashFree BIOS 3; ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools: ASUS AI Booster utility

Precision Tweaker: vCore: Adjustable CPU voltage at 6.25mV increment; vDIMM: 5-step DRAM voltage control

SFS (Stepless Frequency Selection): FSB tuning from 200MHz up to 800MHz at 1MHz increment; Memory tuning from 667MHz up to 1333MHz for DDR2; PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS MyLogo 2

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x S/PDIF Out (Coaxial)

1 x RJ45 port

6 x USB 2.0/1.1

8-channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

6 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

System Panel

BIOS

8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.3; ACPI 2.0a; ASUS EZ Flash 2; ASUS CrashFree BIOS 3

Manageability

WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,WOR by PME

Accessories

UltraDMA 133/100/66 cable; FDD cable; 2 x Serial ATA cables; 1 x 2-port Serial ATA power cable; I/O Shield; User's manual; Support CD(Drivers; ASUS PC Probe II; ASUS AI Suite; Anti-virus software (OEM version), ASUS Update)

Form Factor

ATX Form Factor

12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )

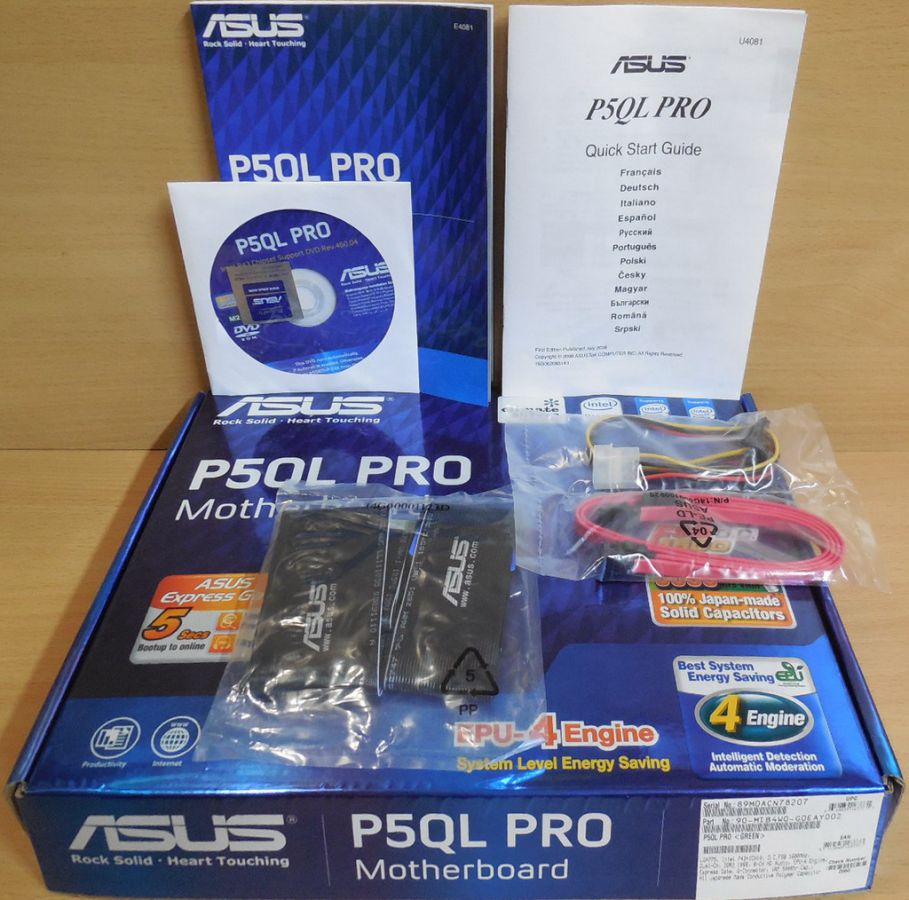

Lieferumfang

Mainboard mit Zubehör * NEU & OVP *

Abbildung ähnlich
