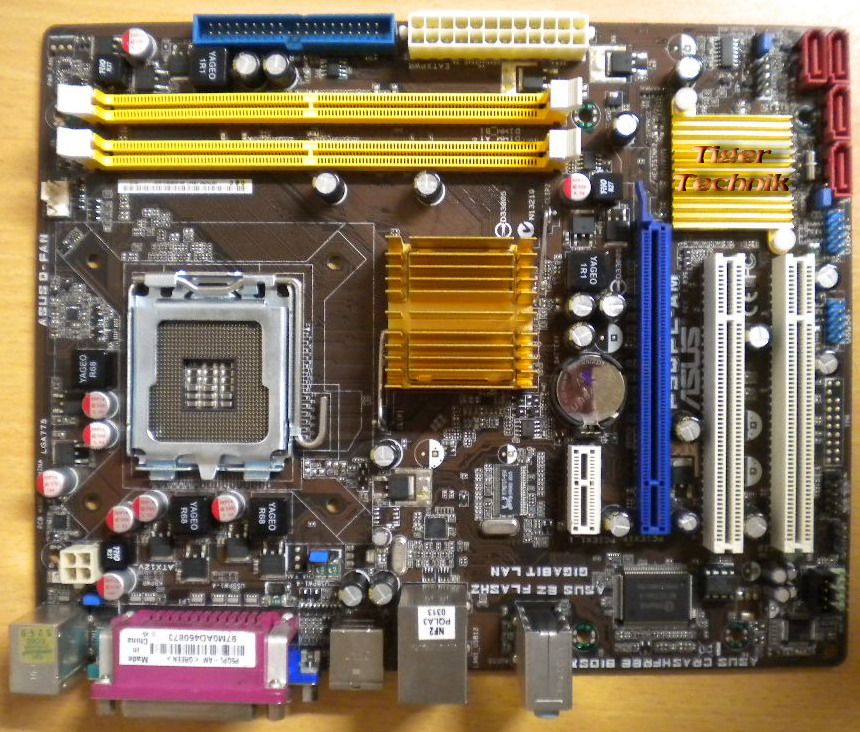

Asus P5QPL-AM Rev1.03G Mainboard +Blende Sockel 775 Intel G41 PCIe DDR2 VGA*m458

Asus P5QPL-AM Rev 1.03G Mainboard + Blende Sockel 775 Intel G41 PCIe DDR2 VGA

Technische Daten

CPU

Intel Socket 775 Core™2 Quad/Pentium® dual-core/Core™2 Extreme/Core™2 Duo/Celeron dual-Core /Celeron® Processors

Support Intel® 45nm Multi-Core CPU

*Refer to the Asus Website for Intel CPU support list

Chipsatz

Intel G41 /ICH7

Front Side Bus

1333/1066/800 MHz

Memory

2 x 240-pin DIMM, 8 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

*** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1x PCIe x16 Support PCIe 1.1 Architecture

1x PCIe x1

2x PCI

VGA

Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)

- Supports Microsoft® DirectX 10, OpenGL 2.1

- Supports RGB with max. resolution 2048 x 1536@75Hz

Storage by Southbridge

1 x UltraDMA 100

4 x SATA 3 Gb/s ports

LAN

PCIe Gb LAN

Audio

High Definition Audio 6-Channel CODEC

Supports Jack-detect and Multi-Streaming teconologies

Supports S/PDIF out interface

USB

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Overclocking Features

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz to 800MHz 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Special Features

Turbo Key, AI NET2 ASUS MyLogo 2, ASUS CrashFree BIOS 3,  ASUS Q-Fan,  ASUS EZ Flash 2

Back Panel I/O Ports

1 x Parallel

1 x D-Sub

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45 port

4 x USB 2.0/1.1

1 x COM port

6 Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 4 USB 2.0 ports

1 x High Definition front panel audio connector

1 x Internal Speaker connector

1 x CD audio-in connector

24-pin EATX power connector

4-pin ATX 12V Power connector

1 x IDE connector

4 x SATA connectors

1 x S/PDIF Out connector

System Panel

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Form Factor

uATX Form Factor

9.6 inch x 7.6 inch 24.4 cm x 19.3 cm )

Lieferumfang

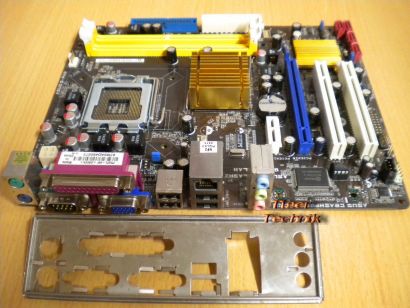

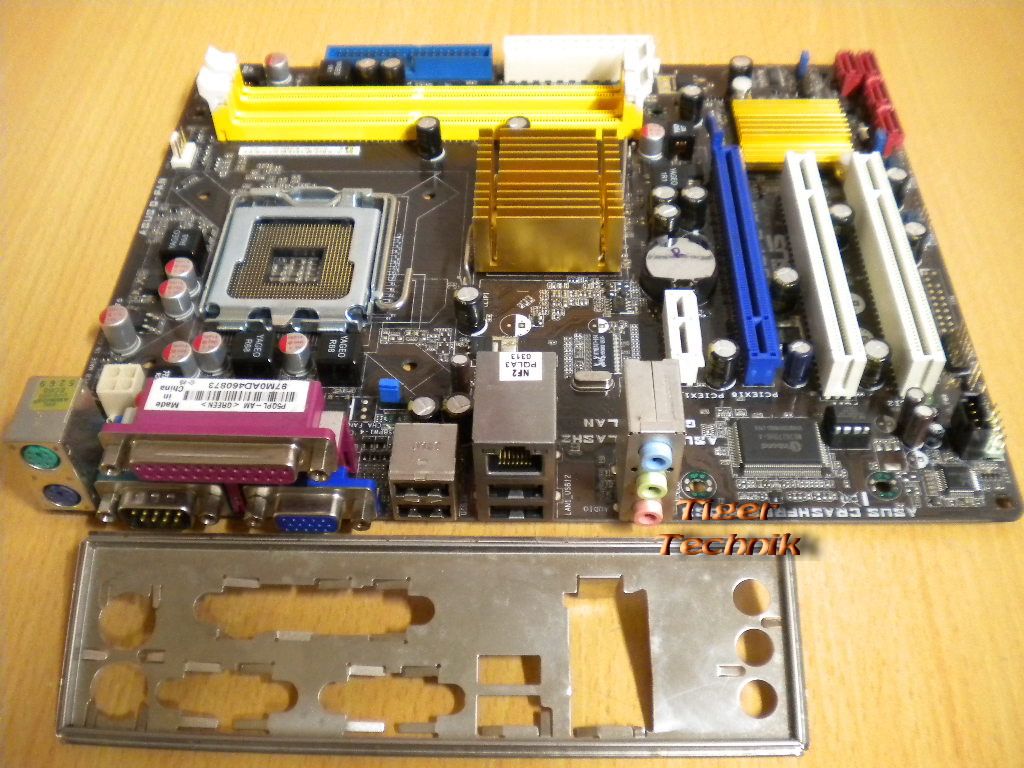

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
