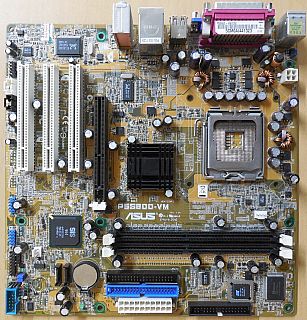

Asus P5S800-VM Rev 1.01 Mainboard + Blende Sockel 775 SATA AGP VGA LAN Audio

Technische Daten

CPU

LGA775 socket for Intel® Pentium® 4 / CeleronD processor

Compatible with the Intel® PCG 04A and 04B processors

Supports Intel® Hyper-Threading Technology

Chipset

SiS 661FX Northbridge + SiS 964 Southbridge

Front Side Bus

800/533 MHz

Memory

2 x 184-pin DIMM sockets support up to 2GB of unbufferred non-ECC 400/333/266 MHz DDR DIMMs

Expansion Slots

3 x PCI slots

1 x AGP 8x (1.5V only)

VGA

Integrated SIS Real 256E Graphics

Storage

2 x UltraDMA 133/100/66/33

2 x Serial ATA with RAID 0 and RAID 1 configuration

Audio

Realtek ALC655 6-Channel CODEC

S/PDIF out interface support

Universal Audio Jack (UAJ ®) Sensing Technology support

LAN

Realtek RTL8100C 10/100 Mbps Ethernet Controller

USB

Support up to 8 x USB 2.0 ports

Special Features

ASUS AI Audio, MyLogo 2, ASUS EZ Flash, ASUS CrashFree BIOS 2

Power Loss Restart

Instant Music Lite

Back Panel I/O Ports

1 x Parallel port

1 x VGA port

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

1 x Serial port

1 x LAN (RJ-45) port

4 x USB 2.0/1.1 ports

Audio I/O ports

Internal I/O Connectors

2 x USB2.0 connectors support additional 4 USB 2.0 ports

1 x CPU Fan connector (4-pin)

1 x Chassis Fan connector (3-pin)

1 x Front Panel connector (10-pin panel for IDE LED, Power LED, Power Switch, Reset)

1 x S/PDIF Out connector

1 x 4-pin ATX 12V Power connector

1 x 20-pin ATX Power connector

1 x Speaker connector

1 x Front Audio Panel connector

1 x Game/MIDI port connector

1 x Power LED connetor

1 x Chassis Intrusion connector

1 x CD/AUX audio in

1 x COM2 connector

1 x CLRTC CMOS Jumper

1 x KBPWR1 Jumper

1 x Floppy FDD connector

2 x IDE connectors

2 x SATA connectors

BIOS

4 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ASUS C.P.R.(CPU Parameter Recall), ASUS EZ Flash, ASUS CrashFree BIOS 2

Industry standard

PCI 2.2, USB2.0

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, Chasis Intrusion

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
