Asus P5S800-VM S Rev 1.01 Mainboard +Blende Sockel 775 SATA AGP VGA LAN Aud*m702

Asus P5S800-VM S Rev 1.01 Mainboard + Blende Sockel 775 SATA AGP VGA LAN Audio

Technische Daten

ausgebaut aus einem Maxdata-PC. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.

CPU

Intel Socket 775 Pentium® 4 / Celeron Processors

Compatible with Intel® 05B/05A/06 processors

Chipset

SiS 671FX + SiS 964

Front Side Bus

800/533 MHz

Memory

2 x DIMM, Max. 2 GB, DDR SDRAM, Non-ECC unbuffered Memory

Expansion Slots

3x PCI

1x AGP 8x (1.5V only)

VGA

Integrated SIS Real 256E Graphics

Storage

2x UltraDMA 133/100/66/33

2x SATA 1.5Gb/s ports Support RAID 0,1

Audio

Realtek ALC655 6 -Channel CODEC

Support Jack-Sensing, Enumeration, Multi-streaming

S/PDIF out on back I/O port

LAN

Realtek 10/100 Mbps Ethernet Controller

USB

8 USB 2.0 ports Integrated

Special Features

ASUS MyLogo 2, ASUS EZ Flash, ASUS CrashFree BIOS 2

Power Loss Restart

Support S/PDIF out interface

ASUS Instant Music Lite

Back Panel I/O Ports

1x Parallel

1x VGA

1x Audio I/O

1x PS/2 Keyboard

1x PS/2 Mouse

1x Serial port

1x LAN(RJ45) port

4x USB 2.0/1.1

Internal I/O Connectors

2x USB connectors support additional 4 USB 2.0 ports

1x CPU Fan connector

1x Chassis Fan connector

10-pin panel connector (IDE LED, Power LED, Power Switch, Reset)

1x S/PDIF Out connector

1x 4-pin ATX 12V Power connector

20-pin ATX Power connector

Buzzer

Front Audio Panel connector

Game/MIDI port connector

Power LED connetor

Chassis Intrusion connector

CD/AUX audio in

1x COM2 port connector

BIOS

4 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ASUS C.P.R.(CPU Parameter Recall), ASUS EZ Flash, ASUS CrashFree BIOS 2

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, Chasis Intrusion

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch ( 24.5 cmx 24.5 cm )

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

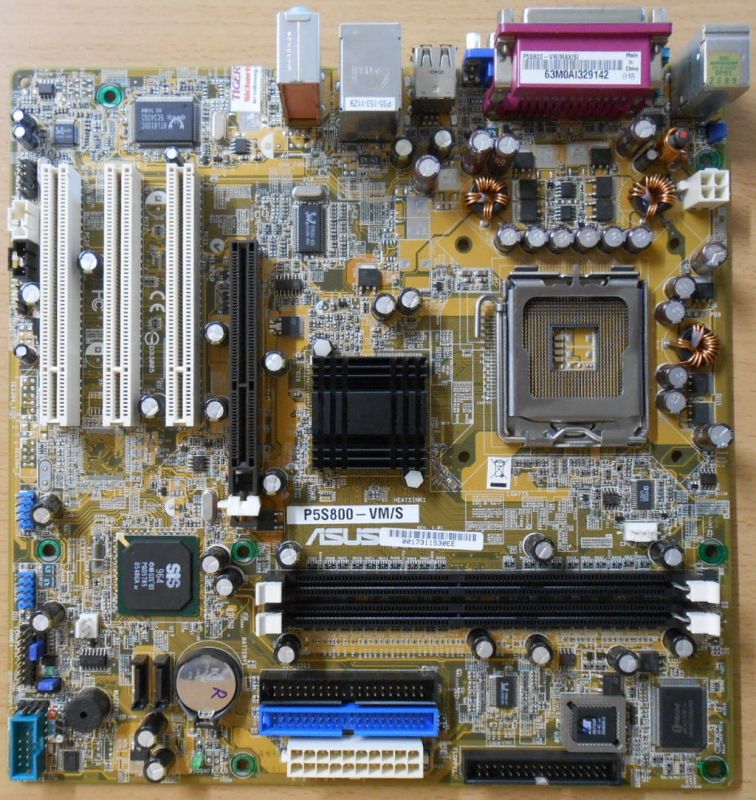

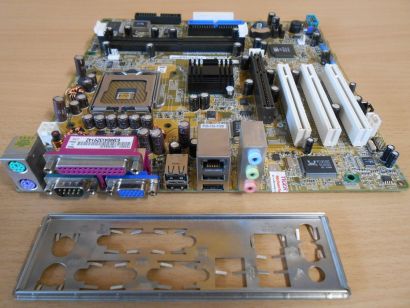

Abbildung ähnlich
