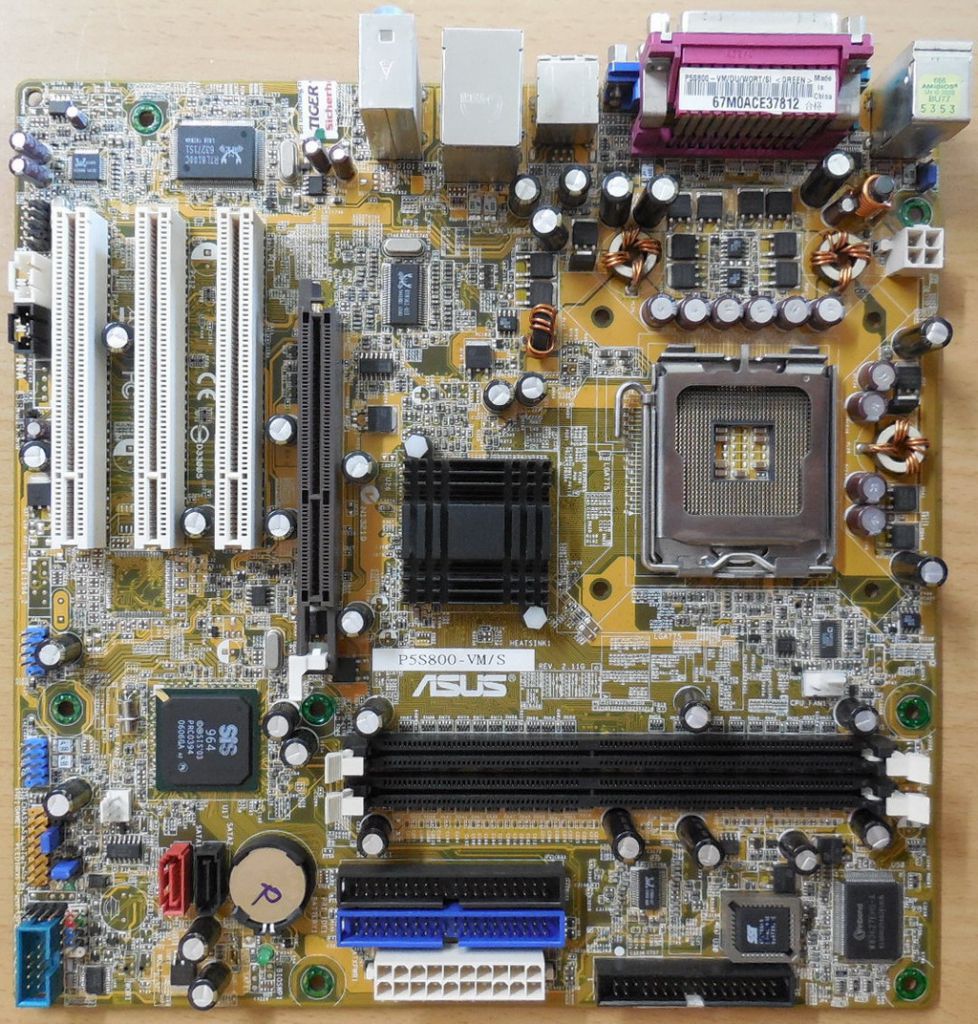

Asus P5S800-VM S Rev 2.11G Mainboard +Blende Sockel 775 SATA AGP VGA LAN* m950

Asus P5S800-VM/S Rev 2.11G Mainboard + Blende Sockel 775 SATA AGP VGA LAN Audio

Technische Daten

ausgebaut aus einem Wortmann-PC. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.

CPU

Intel Socket 775 Pentium® 4 / Celeron Processors

Compatible with Intel® 05B/05A/06 processors

Chipset

SiS 671FX + SiS 964

Front Side Bus

800/533 MHz

Memory

2 x DIMM, Max. 2 GB, DDR SDRAM, Non-ECC unbuffered Memory

Expansion Slots

3 x PCI

1 x AGP 8x (1.5V only)

VGA

Integrated SIS Real 256E Graphics

Storage

2 x UltraDMA 133/100/66/33

2 x SATA 1.5Gb/s ports

Audio

Realtek ALC655 6 -Channel CODEC

Support Jack-Sensing, Enumeration, Multi-streaming

S/PDIF out on back I/O port

LAN

Realtek RTL8100C 10/100 Mbps Ethernet Controller

USB

8 x USB 2.0 ports Integrated

Special Features

ASUS MyLogo 2, ASUS EZ Flash, ASUS CrashFree BIOS 2

Power Loss Restart

Support S/PDIF out interface

ASUS Instant Music Lite

Back Panel I/O Ports

1 x Parallel

1 x VGA

1 x Audio I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x LAN(RJ45) port

4 x USB 2.0/1.1

Internal I/O Connectors

2 x USB connectors support additional 4 USB 2.0 ports

1 x CPU Fan connector (4-pin)

1 x Chassis Fan connector (3-pin)

1 x Front Panel connector (10-pin panel for IDE LED, Power LED, Power Switch, Reset)

1 x S/PDIF Out connector

1 x 4-pin ATX 12V Power connector

1 x 20-pin ATX Power connector

1 x Speaker connector

1 x Front Audio Panel connector

1 x Game/MIDI port connector

1 x Power LED connetor

1 x Chassis Intrusion connector

1 x CD/AUX audio in

1 x COM2 port connector

BIOS

4 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ASUS C.P.R.(CPU Parameter Recall), ASUS EZ Flash, ASUS CrashFree BIOS 2

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, Chasis Intrusion

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch ( 24.5 cmx 24.5 cm )

Lieferumfang

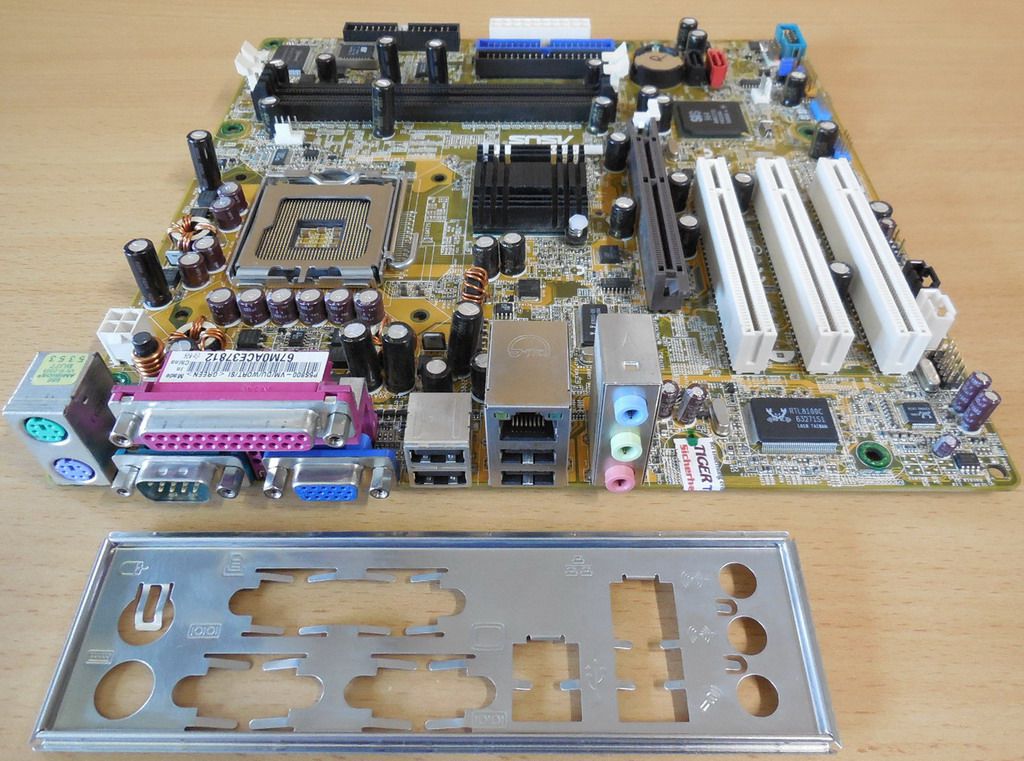

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
