Biostar P4M900-M7 SE Ver7.0 Mainboard +Blende VIA Sockel 775 VGA PCIe DDR2* m766

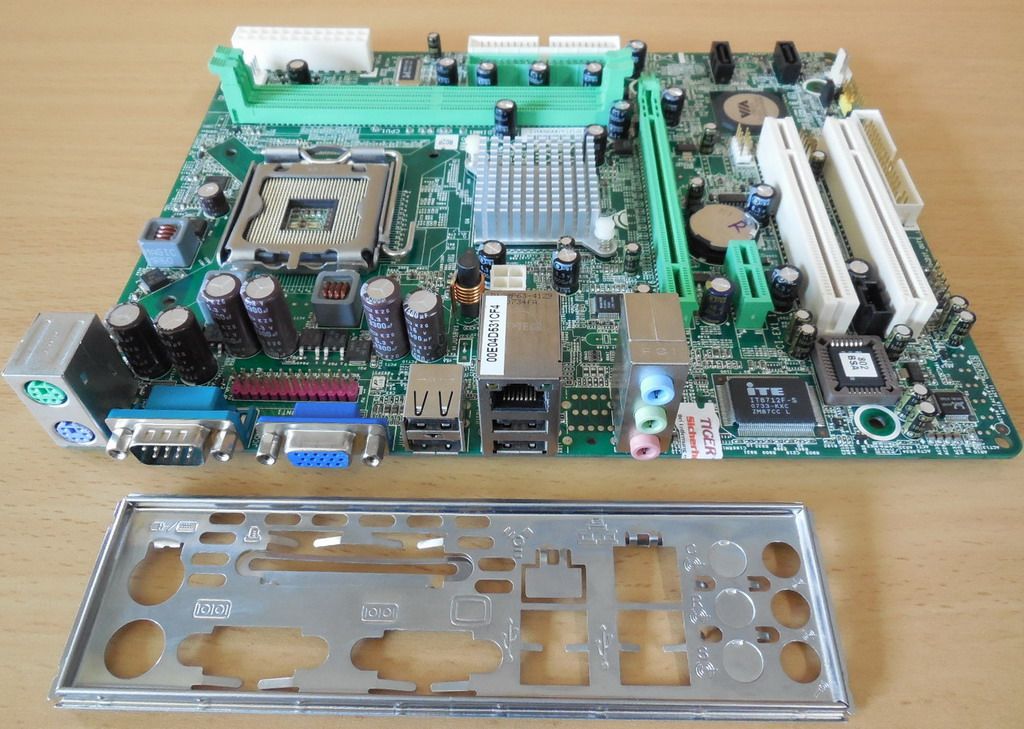

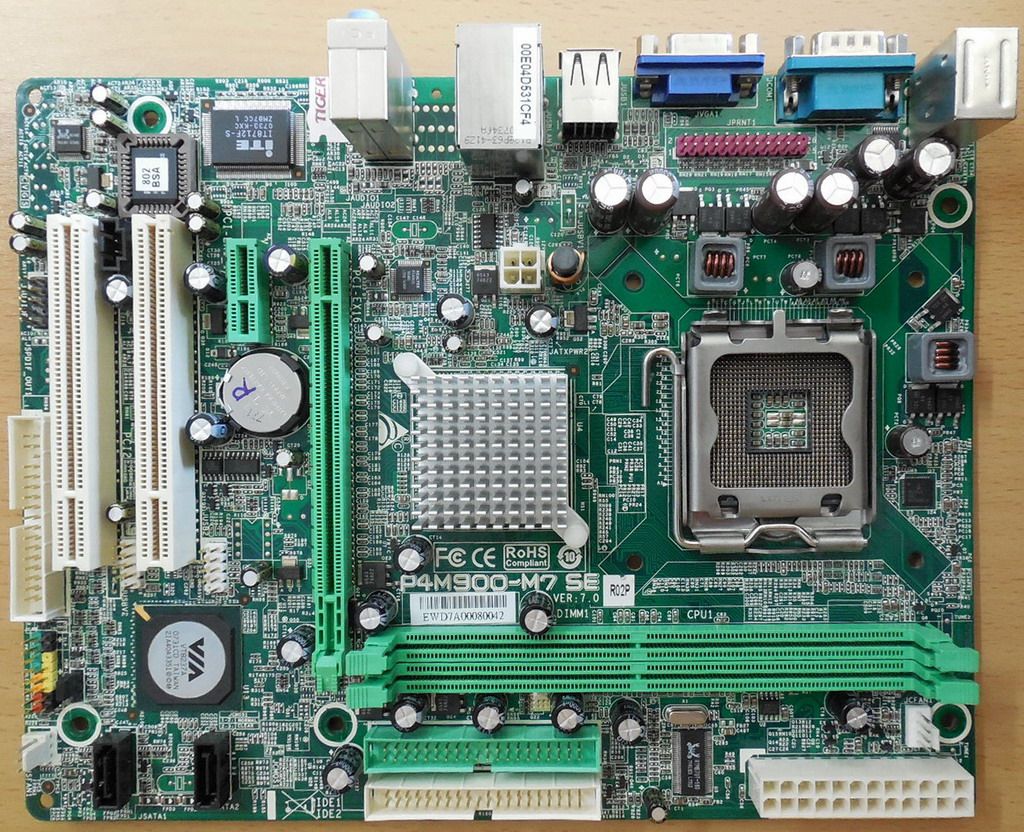

Biostar P4M900-M7 SE Ver 7.0 Mainboard + Blende

VIA Sockel 775 VGA PCIe DDR2

Technische Daten

CPU

Intel® Core™2 Duo Processor

Intel® Pentium® Dual-Core Processor

Intel® Pentium® D Processor

Intel® Pentium® 4 Processor

Intel® Celeron® D Processor

Intel® Celeron® Processor 400 Sequence

Maximum CPU TDP (Thermal Design Power) : 95Watt

FSB

Support FSB 533/800/1066MHz

CHIPSET

VIA® P4M900 & VT8237A

North Bridge: VIA® P4M900

South Bridge: VIA® VT8237A

GRAPHICS

Integrated Chrome9™ HC IGP

Share Memory: Maximum up to 256MB

MEMORY

Support DDR2 533/667 MHz

2 x DDR2 DIMM Memory Slot

Max. Supports up to 4GB Memory

EXPANSION SLOT

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

STORAGE

2 x SATA Connectors

2 x IDE Connector

Support SATA RAID: 0,1

AUDIO

Realtek ALC662 6-Channel HD Audio

LAN

Realtek RTL8201CL - 10/100 PHY

USB

4 x USB 2.0 Port + 2 x USB 2.0 Header; Max. 8 x USB2.0

REAR PANEL I/O

1 x PS/2 Mouse

1 x PS/2 Keyboard

4 x USB2.0 Port

1 x COM Port

1 x VGA Port

1 x LAN port

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 24-pin ATX Power Supply connector

1 x 4-pin ATX 12V connector

1 x FDD Floppy connector

2 x IDE connectors

2 x Serial ATA connectors

2 x USB 2.0 headers support additional 4 USB 2.0 Ports

1 x LPT Parallel port header

1 x Clear CMOS Jumper

1 x Front panel switch/LED header

1 x Front panel audio header

1 x CD in header

1 x CPU Fan Connector

1 x System Fan Connector

FORM FACTOR

Micro-ATX Size, 19 cm x 24.4 cm (WxL)

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
