Produktbeschreibung

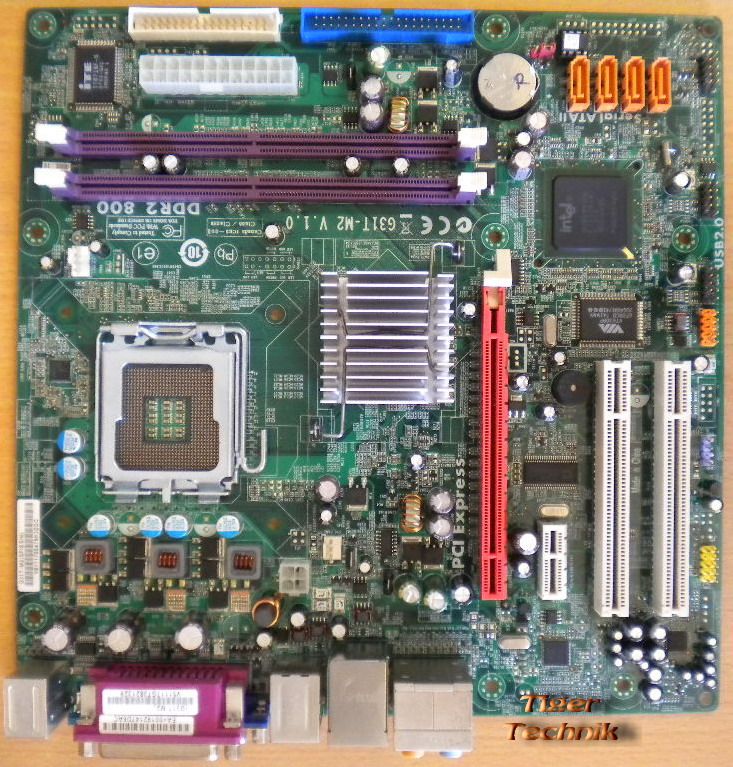

ECS Elitegroup G31T-M2 V1.0 Mainboard + Blende Sockel 775 PCIe x16 SATA DDR2
Technische Daten
CPU
LGA 775 / Socket T
Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core, Pentium, Celeron processors
FSB
1333/1066/800 Mhz
Chipsatz
Intel G31 Northbridge + ICH7 Southbridge
VGA
Integrated Intel GMA3100
Memory
Dual-Channel DDR memory architecture
2 x 240-pin DDR2 DIMM Socket support up to 4GB
Supports DDR2 800/667 DDR SDRAM
Expansion Slot
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage
2 x Ultra DMA100/66 devices
4 x Serial ATA 3Gb/s devices
Audio
Realtek 6-channel HD audio Codec
LAN
Realtek 10/100Mbps Fast Ethernet LAN
Rear Panel
1 x PS/2 keyboard connector
1 x PS/2 mouse connector
4 x USB2.0 ports
1 x VGA port
1 x Serial port (COM1)
1 x Parallel port (LPT)
1 x RJ45 LAN connector
6ch Audio ports
Internal
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports one 360K~2.88MB FDD
1 x IDE connector for up to two devices
4 x Serial ATA II connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x IEEE1394 header support additional 1 Firewire Port
1 x Clear CMOS Jumper
1 x Front System Panel Header
1 x Front Audio Panel header
1 x SPDIF out header
1 x CPU FAN connector (4-pin)
1 x SYS FAN connector (3-pin)
1 x Buzzer
Formfaktor
Micro-ATX
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
