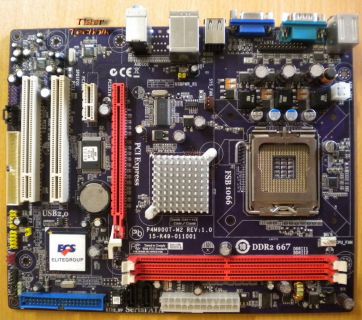

ECS Elitegroup P4M900T-M2 Ver1.0 Mainboard+Blende Sockel 775 PCIe SATA DDR2*m614

ECS Elitegroup P4M900T-M2 Ver 1.0 Mainboard + Blende

Sockel 775 PCIe SATA DDR2

Technische Daten

CPU

LGA775 socket for latest Intel® Core™ 2 Quad / Core™ 2 Duo / Pentium 4 / Celeron D processor

FSB 1066/800/533 MHz

Supports Hyper-Threading Technology CPU (siehe Herstellerseite!)

CHIPSET

VIA® P4M900CD & VT8237S

North Bridge: VIA® P4M900CD

South Bridge: VIA® VT8237S

GRAPHICS

Integrated Chrome9™ HC IGP

Share Memory: Maximum up to 256MB

MEMORY

Single-channel DDR2 memory architecture

2 x 240-pin DDR2 DIMM socket support up to 4 GB

Support DDR2 667/533/400 DDR2 SDRAM

EXPANSION SLOT

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

STORAGE

Support by VIA® VT8237S

2 x Ultra DMA133/100/66 devices

2 x Serial ATA 3.0Gb/s devices

RAID0 & RAID1 configuration

AUDIO

VIA® VT1708A 6-channel High Definition audio CODEC

LAN

VIA® VT6103L 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

1 x PS/2 keyboard & PS/2 mouse connectors

1 x Serial port (COM1)

1 x VGA port

4 x USB ports

1 x RJ45 LAN connector

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 24-pin ATX Power Supply connector

1 x 4-pin ATX 12V connector

1 x FDD connector

1 x IDE connector

2 x Serial ATA connectors

2 x USB 2.0 headers support additional 4 USB 2.0 Ports

1 x IrDA for SIR header

1 x Clear CMOS header

1 x SPDIF out header

1 x Front panel switch/LED header

1 x Front panel audio header

1 x CD in header

CPUFAN/SYSFAN connectors

SYSTEM BIOS

AMI BIOS with 4Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR

Micro-ATX Size, 244mm*200mm

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
