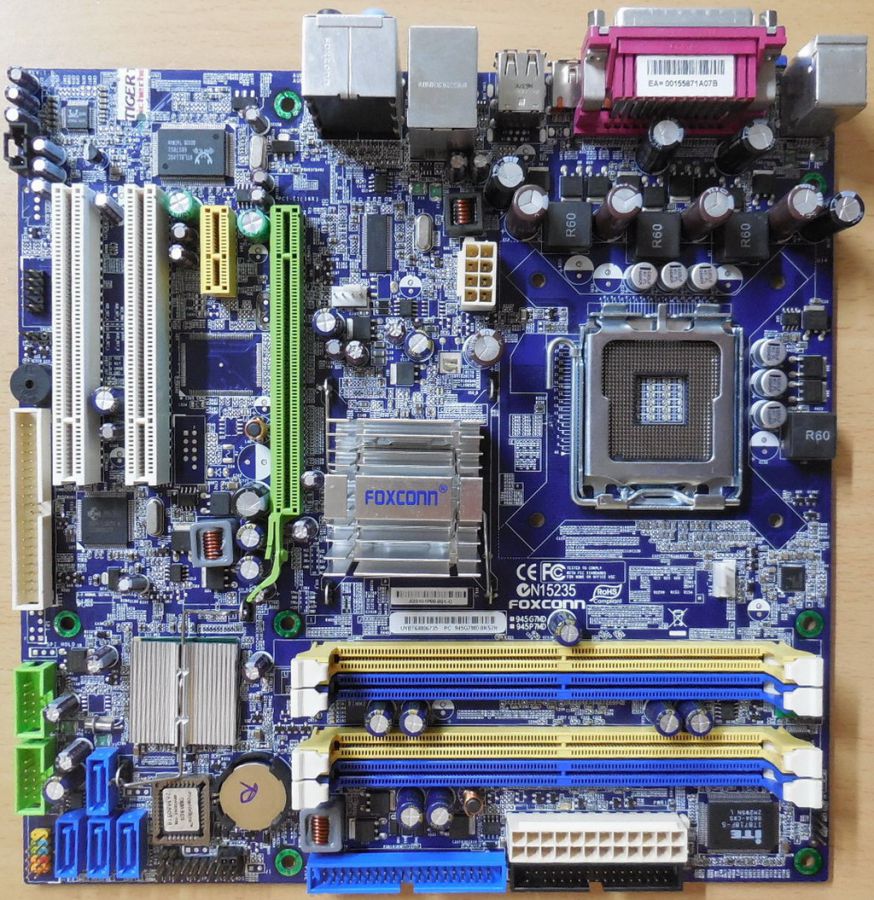

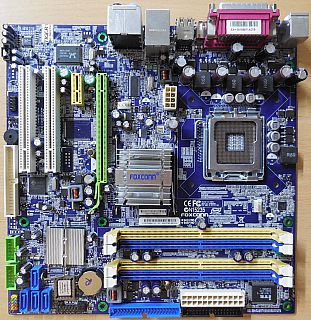

Foxconn 945G7MD 8KS2H Mainboard +Blende Sockel 775 Intel 945G DDR2 PCIe LAN*m895

Foxconn 945G7MD-8KS2H Mainboard + Blende Sockel 775 Intel 945G DDR2 PCIe GBLAN

Technische Daten

CPU

Supports Intel® Core 2 Duo, Core 2 Extreme Edition, Pentium® 4 Extreme Edition, Pentium® D, Pentium® 4, Celeron® D processors in an LGA775 package

Supports Hyper-Threading Technology

Chipset

Intel® 945G (North Bridge) + ICH7R (South Bridge)

Front Side Bus

1066 MHz / 800 MHz / 533 MHz (FSB)

Memory

Four 240-pin DIMM slots

Supports Dual-Channel DDR2 667/533/400

Supports up to 4GB DDR2 memory

Expansion Slots

2 x PCI slots

1 x PCI Express x16 Graphics slot*

1 x PCI Express x1 slot

*PCI Express x16 Support

Supports 4 GB/sec (8 GB/sec concurrent) bandwidth

Low power consumption and power management features

Storage/SATA/RAID

1 x UltraDMA 133/100/66/33 (blau)

1 x UltraDMA 100/66/33 (weiß)

4 x Serial ATA II with 300MBps data transfer rate

Supports RAID 0, RAID 1, RAID 0+1,RAID 5

Onboard Graphics

Supports integrated VGA display function

Audio

Supports Intel® High Definition Audio

Supports S/PDIF output

Supports Jack-Sensing function

Supports 8-channel audio

LAN

LAN interface built-in onboard

Supports 10/100/1000 Mbit/sec Ethernet

USB

8 x USB 2.0 ports

Supports wake-up from S1 and S3 mode

Supports USB 2.0 protocol up to 480Mbps transmission rate

Supports hot plug

Back Panel I/O Ports

1 x SPDIF Coaxial

1 x e-SATA

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel LPT

1 x VGA

1 x RJ45

4 x USB2.0

1 x 7.1 channel Audio jacks set (6 jacks)

Internal I/O Connectors

24-pin ATX Power connector

8-pin ATX 12V Power connector

1 x CPU FAN connector (4pin)

1 x System FAN connector (4pin)

1 x Floppy connector

4 x SATAII connectors

2 x IDE connectors

1 x COM2 connector

2 x USB2.0 connectors support additional 4 USB ports

1 x CMOS Jumper

1 x Intruder connector

1 x TPM connector

1 x IRDA connector

1 x Front Panel connector

1 x Front Audio Panel connector

1 x S/PDIF Out connector

1 x CD-IN connector

1 x Buzzer

Green Function

Supports ACPI (Advanced Configuration and Power Interface)

Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4

(Suspend to disk - depends on OS), and S5 (soft - off)

Form Factor

uATX form factor of 9.6 inch x 9.6 inch

Lieferumfang

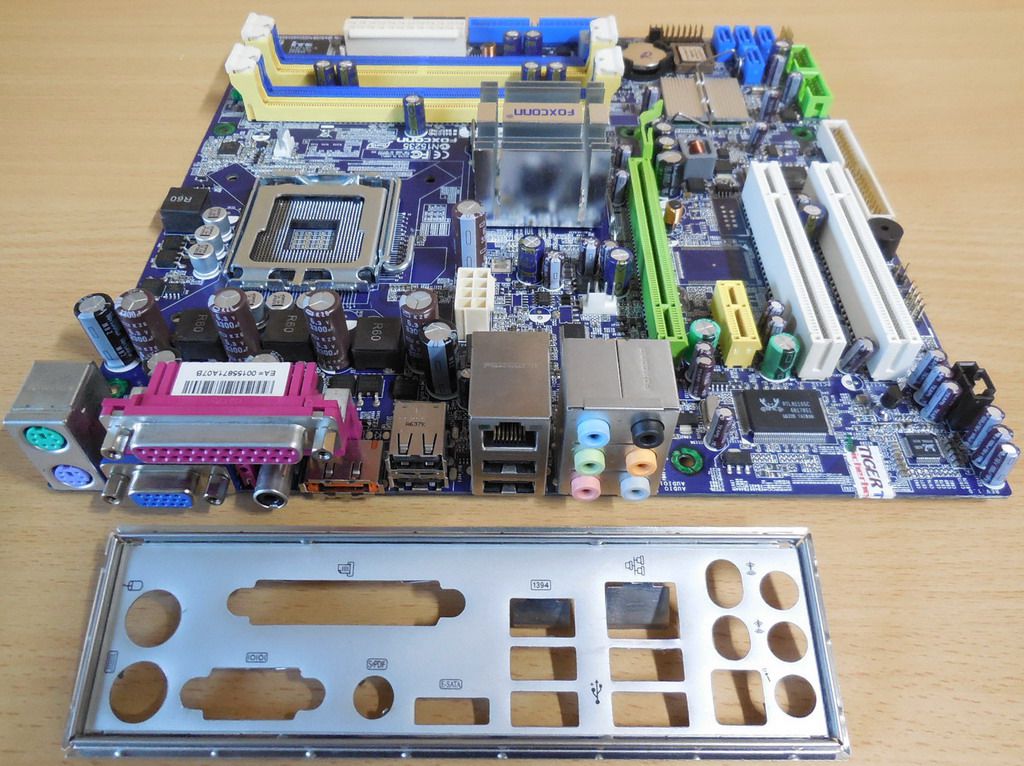

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
