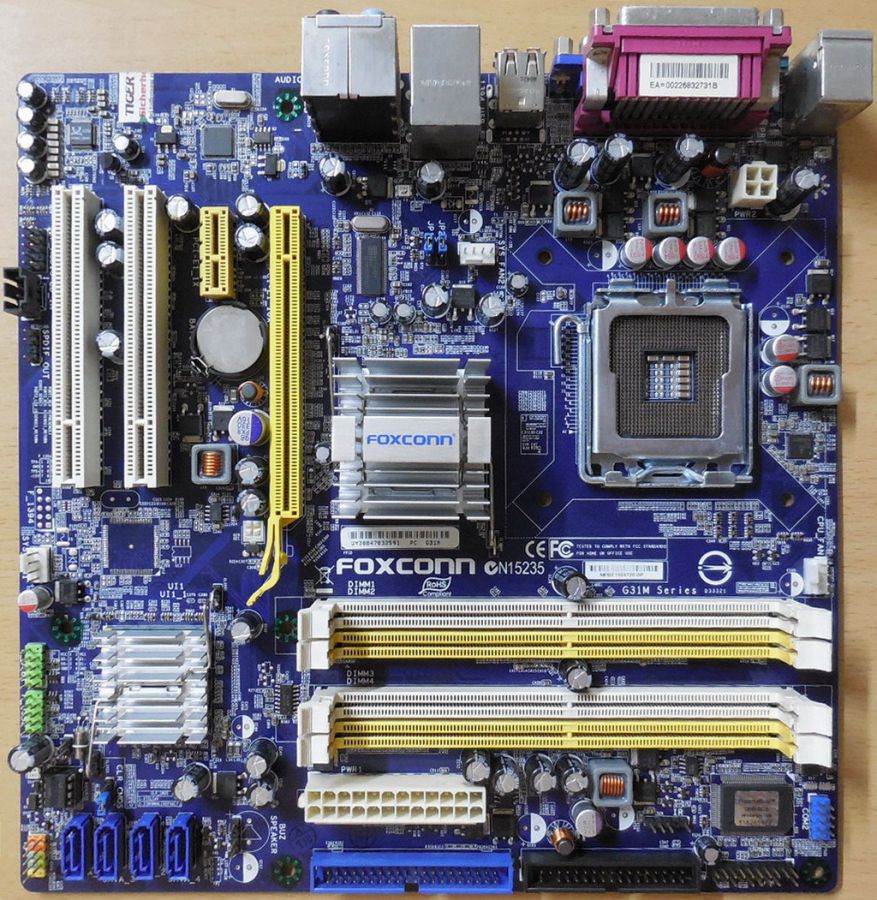

Foxconn G31M Rev 1.2 Mainboard +Blende Sockel 775 DDR2 PCIe GbE LAN VGA* m910

Foxconn G31M Rev 1.2 Mainboard + Blende Sockel 775 DDR2 PCIe GbE LAN VGA

Technische Daten

CPU

Support LGA775 socket Intel® CoreTM 2 Quad / CoreTM 2 Extreme / CoreTM 2 Duo / Pentium® Dual-Core / Celeron® Dual-Core / Celeron® processors

Supports 45nm processors

Front Side Bus

1333/1066/800/533MHz FSB

Chipset

Intel® G31 Chipset (North Bridge) + Intel® ICH7 (South Bridge)

Memory

4 x 240-pin DDR2 DIMM sockets

Support up to 4GB of system memory

Dual channel DDR2 800/667/533MHz architecture

Graphics

Integrated Intel GMA 3100 Graphics

Audio

Realtek ALC888 8-channel audio chip

High Definition Audio

2/4/5.1/7.1-channel

Support Jack-Sensing function

LAN

Realtek RTL8111 10/100/1000Mb/s LAN chip

Expansion Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Storage

4 x SATA connectors; 300MB/s data transfer rate

Support hot plug and NCQ (Native Command Queuing )

1 x IDE connector for up to 2  IDE devices

USB

Support up to 8 x USB 2.0 ports (4 rear panel ports, 2 onboard USB headers supporting 4 extra ports)

Support USB 2.0 protocol up to 480Mb/s

Support hot plug

Internal Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x IDE connector

4 x SATA connectors

1 x Floppy connector

2 x USB 2.0 connectors (supporting 4 x USB devices)

1 x CPU Fan header (4-pin)

2 x System Fan connectors (4-pin)

1 x Front Panel connector

1 x CD_IN connector

1 x Speaker connector

1 x Front Audio connector

1 x IrDA connector

1 x Chassis Intrusion alarm header (INTR)

1 x TPM Connector

1 x COM2 Connector

1 x S/PDIF_OUT Connector

1 x Over Memory Frequency Jumpers JP1/JP2

1 x CMOS  Jumper

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x Serial Port

1 x Parallel port

1 x VGA port

4 x USB 2.0 ports

1 x RJ-45 LAN port

8-channel Audio ports

Hardware Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating shutdown

CPU/System fan speed control

PCI Express x1

Support 250MB/s (500MB/s concurrent) bandwidth; Low power consumption and power management features

PCI Express x16

Support 4GB/s (8GB/s concurrent) bandwidth; Low power consumption and power management features

Green Function

Support ACPI (Advanced Confguration and Power Inter±ace)

Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (suspend to disk), and S5 (soft - off)

Form Factor

Micro ATX Form Factor, 9.6 inches x 9.6 inches (24.4cm x 24.4cm)

Lieferumfang

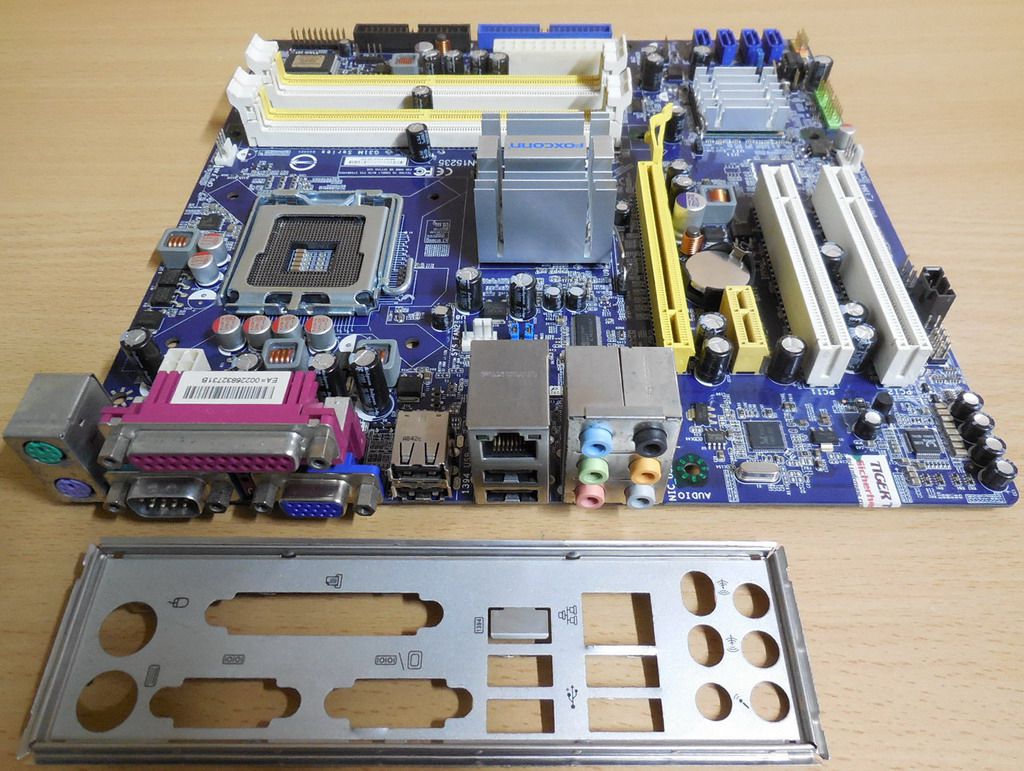

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
