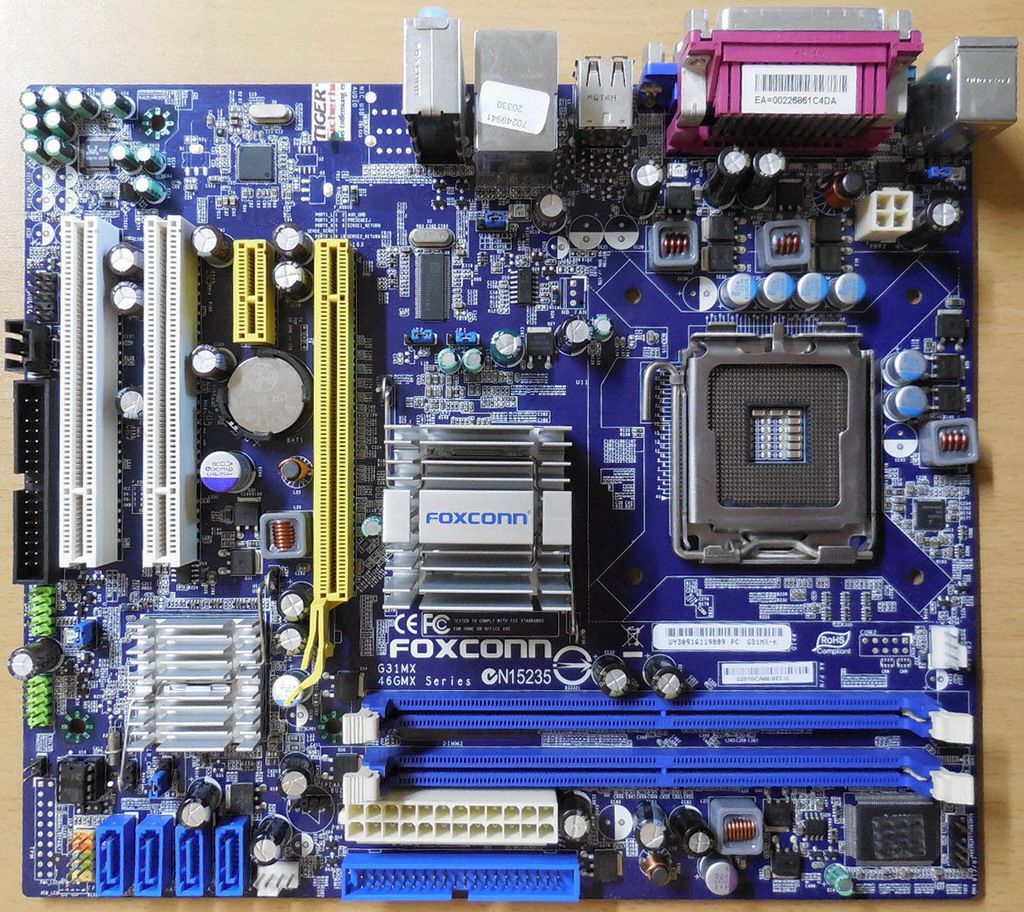

Foxconn G31MX-K Rev 1.0A Mainboard + Blende Intel G31 Sockel 775 VGA LAN PCIe

Technische Daten

Hersteller       Foxconn

Model       G31MX-K Rev 1.0A

CPU-Unterstützung

Intel® Core™2 Quad, Core™2 Duo, Pentium® Dual-Core, Pentium® D, Pentium® 4, Celeron® processors

Supports Intel® next generation 45nm Multi-Core processors

(For CPU Support List, please refer to the Foxconn website)

Sockel       Socket T (LGA775)

Chipsatz       Intel® G31 + ICH7

Front Side Bus       1333/1066/800/533MHz

RAM       2 x Dual-Channel DDR2 800MHz/667MHz DIMMs; Max. 4GB non-ECC unbuffered

VGA       Intel® GMA 3100 Graphics controller, upgradeable with PCI Express x16 graphics card

LAN       Integrated Realtek RTL8111D Gigabit Ethernet

Audio       Realtek ALC662 5.1 Channel Audio Codec

Erweiterungssteckplätze       1 x PCI-E x16; 1 x PCI-E x1; 2 x PCI

Speicherung       4 x SATA II 3GB/s; 1 x IDE ATA100

Intern       Echtzeituhr/Kalender mit Batteriepufferung

4 x SATA II Ports (bis zu 3GBit/s)

1 x IDE ATA100 Connector

1 x Floppy Disk Drive Connector

1 x 4-pin CPU FAN Connector

1 x 4-pin System FAN Connector

1 x Front Audio Header

1 x CD-in Connector

1 x Intruder Alarm Header

2 x USB2.0 Connectors support 4 additional 4 ports

1 x IrDA header

1 x SPDIF Out Header

1 x 4-pin Internal Speaker Connector

1 x USBPW0246_1 Jumper

1 x USBPW1357_1 Jumper

1 x Clear CMOS Jumper

1 x KB/MS_PW Jumper

1 x JP1 Jumper

1 x JP2 Jumper

1 x Front Panel Connector

1 x 24-pin ATX Mainboard Power Connector

1 x 4-pin ATX 12V Power Connector

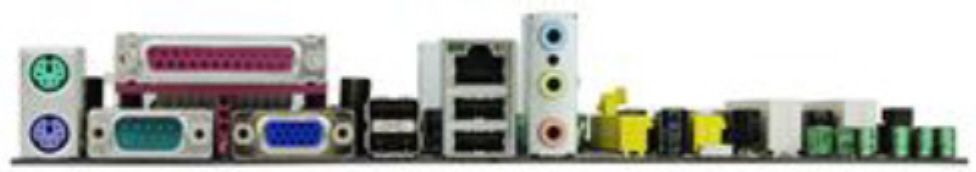

Externe Anschlüsse       1 x Sub-D VGA; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Parallel; 1 x RJ45 LAN; 1 x Seriell; 4 x USB2.0; 4 x USB3.0; 1 x Line-In; 1 x Line-Out; 1 x Mic

BIOS Features       4Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Standards/Manageability       PCI 2.3, USB2.0, DMI 2.5

Formfaktor       micro ATX; ca. 9.6 x 8.2 Zoll

Lieferumfang

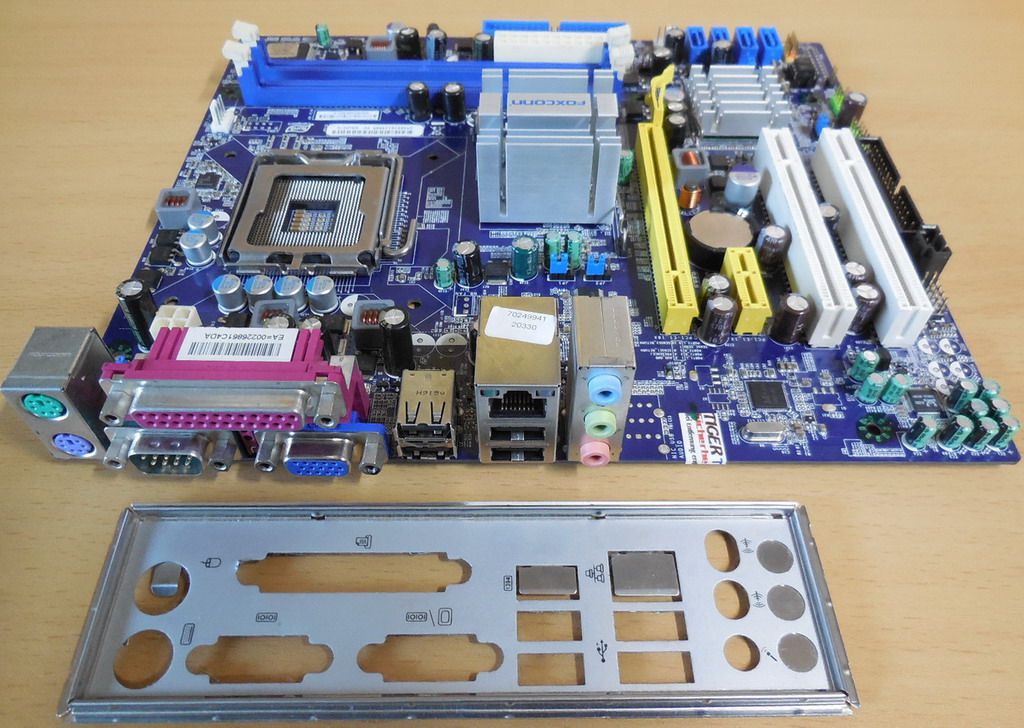

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
