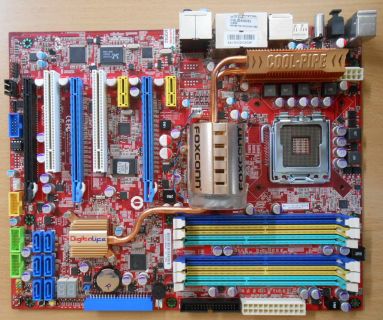

Foxconn X38A Mainboard Sockel 775 Intel X38 DDR2 DDR3 PCIe Dual GBLAN RAID* m772

Foxconn X38A Mainboard Sockel 775

Intel X38 DDR2 DDR3 PCIe Dual GBLAN RAID

Technische Daten

CPU

Socket T (LGA775)

Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core processors

Supports Intel® next generation 45nm Multi-Core processors

Chipset

Intel® X38 + ICH9R

Front Side Bus

1333 / 1066 / 800 MHz (FSB)

Memory

Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs (Max. 8GB)

or DDR3 1333/1066/800 x 2 DIMMs (Max. 4GB)

Expansion Slots

3 x PCI-E x16

2 x PCI-E x1

2 x PCI

Supports PCIe Gen2.0 for increased bandwidth between system and PCIe cards; Supports future VGA cards

Storage/SATA/RAID

1 x UltraDMA 133/100/66/33

6 x SATAII + 2 x eSATA w / RAID 0, 1, 5, 10 and Intel® Matrix storage technology

Audio

Audio 7.1 channel, Realtek® ALC888

LAN

Dual GbE LAN, Realtek® RTL8111B and RTL8110SC

IEEE1394

2 x 1394a

USB

8 x USB 2.0 ports

Back Panel I/O Ports

1 x SPDIF Coaxial

1 x SPDIF Optical

1 x PS/2 Keyboard

1 x PS/2 Mouse

2 x e-SATA

1 x Foxconn Digital Connector

2 x RJ45

4 x USB2.0

1 x 7.1 channel Audio jacks set (6 jacks)

1 x IEEE1394 Firewire

Internal I/O Connectors

2 x USB2.0 connectors support additional 4 USB ports

24-pin ATX Power connector

8-pin ATX 12V Power connector

CD-in connector

CPU / System / Chipset FAN connectors

Front panel audio connector

1 x S/PDIF Out connector

1 x Floppy connector

1 x Front Panel connector

6 x SATAII connectors

1 x COM header

1 x on-board power_LED

1 x IEEE1394 connector supports additional one port

1 x Intruder

1 x IDE connector

1 x IRDA

BIOS

8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI

Manageability

PCI 2.3, USB2.0, DMI 2.5

Form Factor

ATX, 12" in x 9.6" in

Lieferumfang

Nur das Mainboard - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
