Produktbeschreibung

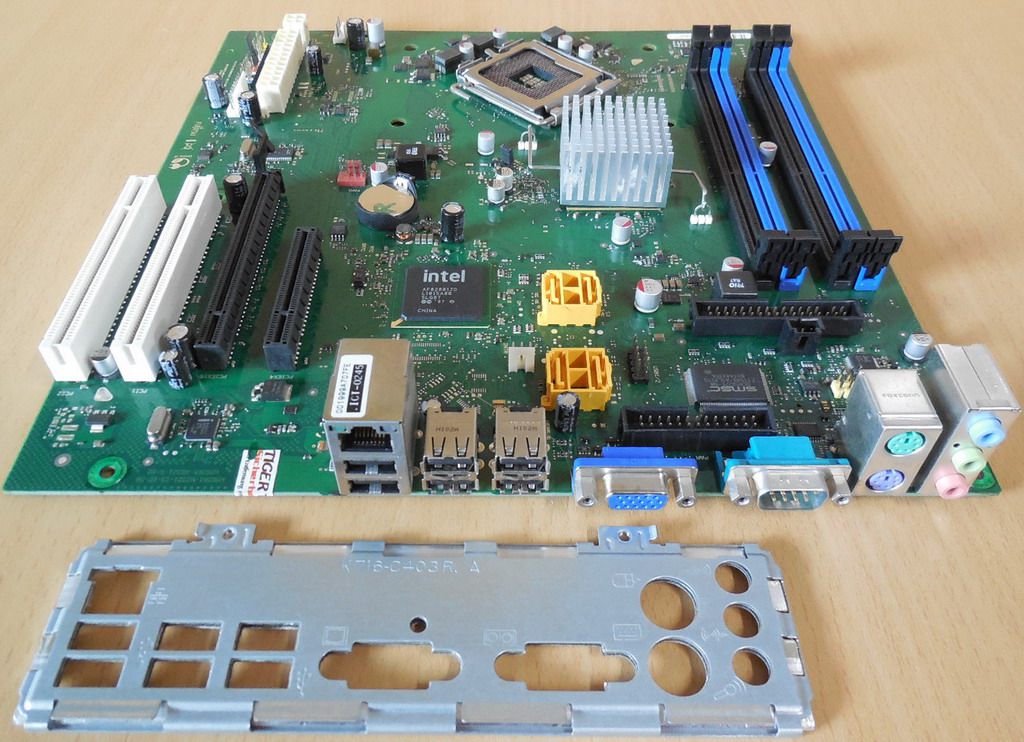

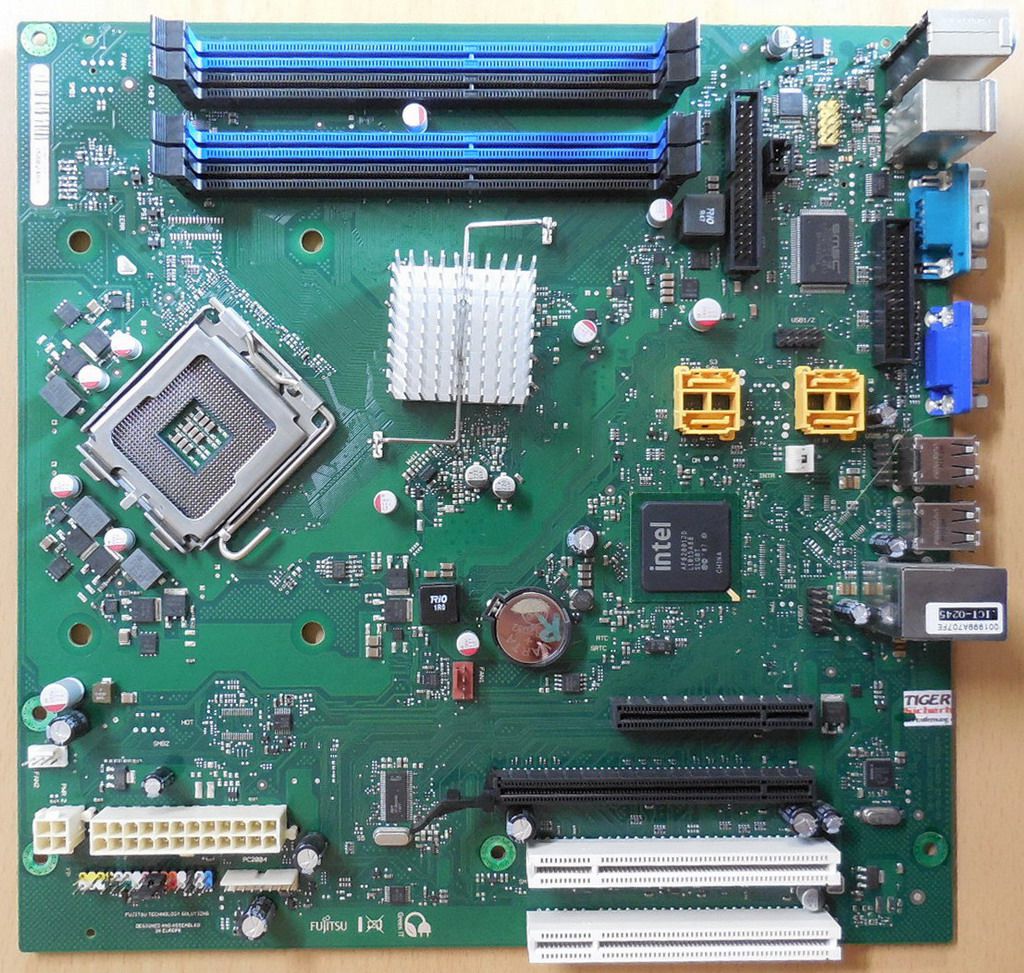

Fujitsu D3011-A11 GS2 Mainboard + Blende Intel Q43 Sockel 775 DDR3 VGA Audio SATA
Technische Daten
Hersteller Fujitsu
Model D3011-A11 GS 2
CPU-Unterstützung
Intel® Core™ 2 Quad bis zu 95W (Q8xxx, Q9xxx); Intel® Core™ 2 Duo bis zu 95W; Intel® Pentium® Dual-Core; Intel® Celeron® Dual-Core; Intel® Celeron® 4xx
(For details on supported processors please refer to the Fujitsu website)
Sockel Intel LGA 775
Chipsatz Intel iQ43 Express
RAM 4 x DIMM-Steckplätze (1.5V); max. 16 GB Hauptspeicher
Single Channel or Dual Channel DDR3 1066/800 SDRAM, unbuffered, non ECC
(For details on recommended RAM, please refer to the Fujitsu website)
VGA Intel Graphics Media Accelerator 4500
LAN Intel Gigabit Ethernet Controller with 10/100/1000 MBit/s, ASF, Wake-on-LAN (WoL), Boot, iAMT
Audio Realtek ALC 663, 6-channel, 5.1 High Definition Audio
Erweiterungssteckplätze 1x PCI-E x16; 1x PCI-E x4(mech. x8); 2x PCI
Intern Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA2 Ports (bis zu 3GBit/s) für bis zu vier SATA Geräte
1 x Floppy FDD Drive Connector
1 x SPDIF Connector
1 x 3-pin Intrusion Connector
1 x 4-pin FAN1 Connector
1 x 4-pin FAN2 Connector
1 x Audio Front Panel Connector (AFP)
3 x USB2.0-Anschluss Connector für insgesamt 6 weitere USB2.0 Ports z.B. via Blende
1 x Parallel Port (EPP/ECP) Connector
1 x 24-pin Power Connector
1 x 4-pin 12V Processor Supply
1 x PC2004 Power Supply FAN Control Connector
1 x Front Panel connector
Externe Anschlüsse 1 x VGA Sub-D; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Seriell, 1 x (RJ-45) LAN, 6 x USB2.0, 1 x Line-In, 1 x Line-Out, 1 x Mic
BIOS
modified and adapted by Fujitsu Siemens Computers
Other Features
FAN monitored PSU* / CPU FAN(1) / System (FAN2)
FAN controlled PSU* / CPU FAN(1) / System (FAN2
* not supported by standard Power Supplies
TEMP monitored CPU / ONB1 / ONB2
SmartCard SystemLock (USB)
Fujitsu Technology Solutions Keyboard Power Button Support
Special Features
Green Edition Halogen-free and lead-reduced product
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Logo Boot Option
Intel On Screen Branding
Formfaktor μBTX; ca. 267 x 264 mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
