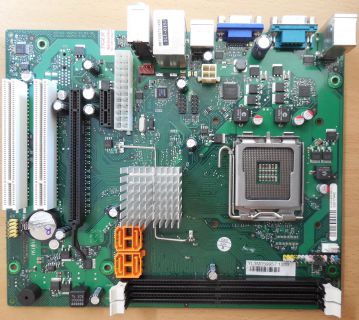

Fujitsu Esprimo P2550 D2950-A11 GS2 Mainboard +Blende Intel Sockel 775 DDR2

Technische Daten

Hersteller: Fujitsu

Model: D2950-A11 GS2

CPU-Unterstützung:

Intel® Core™ 2 Quad Q9xxx / Q8xxx, 1333/1066 MHz FSB; Intel® Core™ 2 Duo E8xxx / E6xxx, 1333/1066 MHz FSB, Intel® Core™ 2 Duo E7xxx / E4xxx, 1066/800 MHz FSB; Intel® Pentium® dual-core E2xxx / E5xxx / E6xxx, 1066/800 MHz FSB; Intel® Celeron® dual-core E1xxx / E4xxx, 800 MHz FSB;

Compatible with Intel® 06 and 05A processors, max. 95W (LGA775)

(For details on supported processors please refer to the Fujitsu Website)

Sockel: Intel 775

Chipsatz: nVidia MCP73PV

RAM: 2 x DIMM-Steckplätze; max. 8 GB Hauptspeicher

Single Channel or Dual Channel DDR2-800 (CL6) / DDR2-667 (CL5) SDRAM, unbuffered, no ECC

VGA: nVidia GeForce 7100 integrated graphics controller; shared memory (up to 256MB), DirectX 9 compliant, upgradeable with PCI Express x16 graphics card

LAN: nVidia integrated Realtek RTL8111CL Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support

Audio: Realtek ALC 663, 5.1-channel, High Definition audio

Erweiterungssteckplätze: 1x PCI-E x16; 1x PCI-E x1; 2x PCI (32Bit, 33MHz, Rev. 2.3)

Intern: Echtzeituhr/Kalender mit Batteriepufferung

4 x SATA2 Ports (bis zu 3GBit/s; NCQ) für bis zu vier SATA Geräte

1 x CPU FAN Connector

1 x AUX1 FAN Connector

2 x USB-Anschluss Connector für 4 weitere USB2.0 Ports z.B. via Blende

1 x Power 24-pin (BTX)

1 x 12V Processor Supply 4-pin

1 x Buzzer

1 x Front Audio Panel

Externe Anschlüsse: 1x VGA Sub-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Seriell, 1x LAN, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic

Hardware Monitoring

FAN controlled CPU / AUX1; TEMP monitored CPU / ONB1

Power Specification

BTX12V (24 Pin) or ATX12V (20 Pin) Power Supply required; 5V and 3.3V supply voltage on PCI slots (PCI Rev. 2.3); 3.3V auxiliary supply voltage on PCI Slots (wake-up support)

BIOS

Phoenix Secure Core BIOS Version 6.00

modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5

Security Features

Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial/USB-Port Access Protection, Boot Sector Virus Warning, Write Protection for  Flash BIOS.

Special Features

Silent Fan LT                  Independent temperature related processor fan and system fan control

System Guard                View Silent Fan LT features

Silent Drives                   Noise reduction for optical and hard disk drives

Recovery BIOS              Restores a corrupted BIOS

Desk Update                  Simple driver update with Driver&Utilities DVD

Multi Boot                      Comfortable boot from any boot device

HDD Password              Access protection for disk drives

Logo Boot Option / Intel On Screen Branding

Formfaktor: μATX 235 x 193 mm (z.B. Esprimo P2550)

Lieferumfang

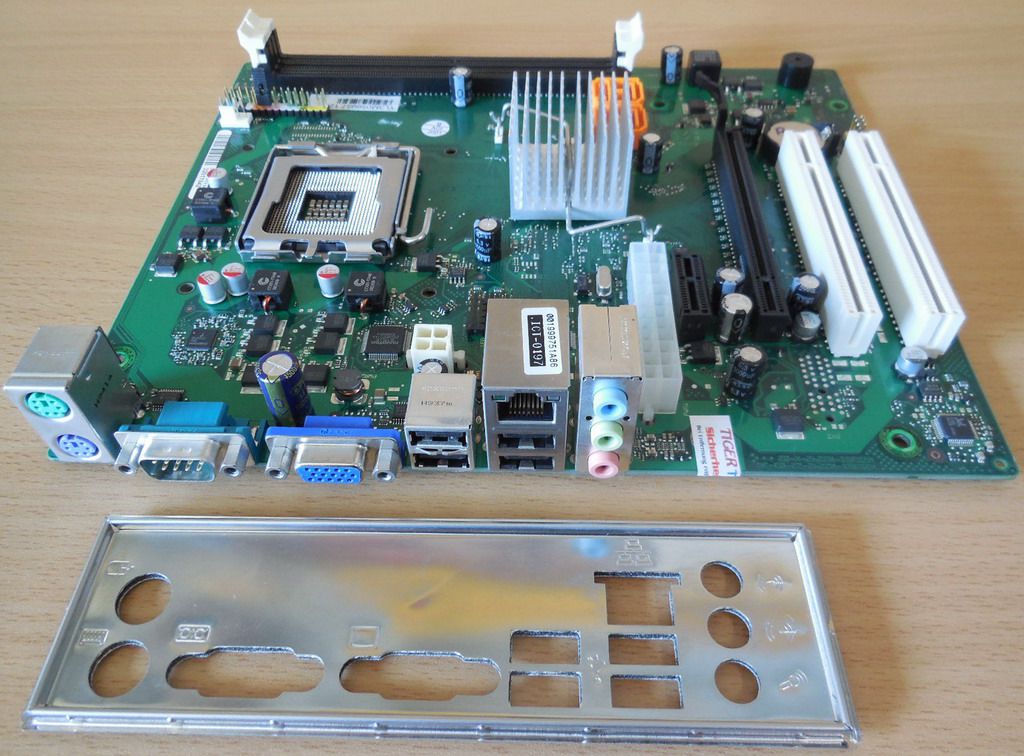

Das Mainboard inkl. Blende  - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
