Produktbeschreibung

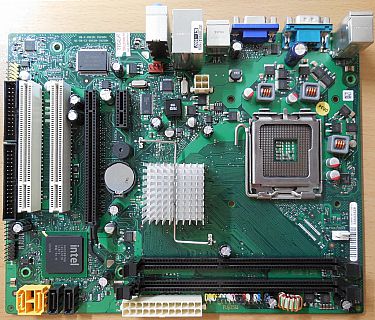

Fujitsu Esprimo P2560 D3041-A11 GS3 Mainboard + Blende Intel G41 Sockel 775 DDR3
Technische Daten
Hersteller Fujitsu
Model D3041-A11 GS3
CPU-Unterstützung
Intel® Core™ 2 Quad Q9xxx / Q8xxx, 1333/1066 MHz FSB; Intel® Core™ 2 Duo E8xxx / E7xxx, 1333/1066 MHz FSB; Intel® Pentium® dual-core E2xxx / E5xxx / E6xxx, 800/1066 MHz FSB; Intel® Celeron® dual-core E1xxx / E3xxx, 800 MHz FSB; Intel® Celeron® 4xx, 800 MHz FSB
Compatible with Intel® 06 and 05A processors, max. 95W (LGA775)
(For details on supported processors please refer to the Fujitsu Website)
Sockel Intel 775
Chipsatz Intel G41 / ICH7
RAM 2 x DIMM-Steckplätze; max. 8 GB Hauptspeicher
Single Channel or Dual Channel DDR3-1066 (CL7) / DDR3-1333 (CL9) SDRAM, unbuffered, no ECC
Note: Usage of DDR3-1333 possible, but clock will be reduced to 1066MHz!
VGA Intel® GMA X4500 integrated graphics controller, shared memory (up to 256MB), DirectX 10 compliant, upgradeable with PCI Express x16 graphics card or ADD2+ cards
LAN Realtek RTL8111DL Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support
Audio Realtek ALC 663, 5.1-channel, High Definition audio
Erweiterungssteckplätze 1x PCI-E x16; 1x PCI-E x1; 2x PCI
Intern Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA2 Ports (bis zu 3GBit/s; NCQ) für bis zu vier SATA Geräte
1 x Diskettenlaufwerksschnittstelle (Floppy)
1 x FAN1 Connector
1 x FAN2 Connector
2 x USB-Anschluss Connector für insgesamt 4 weitere USB Ports z.B. via Blende
1 x Power 24-pin
1 x 12V Processor Supply 4-pin
1 x Buzzer
1 x Parallel (EPP/ECP) Pin Connector
1 x Audio Front Panel Connector (AFP)
Externe Anschlüsse 1x VGA Sub-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Seriell, 1x LAN, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic
Hardware Monitoring
FAN controlled CPU / AUX1; TEMP monitored CPU / ONB1 / ONB2
Power Specification
BTX12V (24 Pin) or ATX12V (20 Pin) Power Supply required; 5V and 3.3V supply voltage on PCI slots (PCI Rev. 2.3); 3.3V auxiliary supply voltage on PCI Slots (wake-up support)
BIOS
Phoenix Secure Core BIOS Version 6.00
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5
Security Features
Recovery BIOS, System and BIOS Password, Write Protection for Floppy Disk Drive, Boot Sequence Control, Serial/Parallel/USB-Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS.
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drive Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Formfaktor μATX 244 x 193 mm (z.B. Esprimo P2560)
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
