Gigabyte GA-E7AUM-DS2H Rev 1.0 Mainboard + Blende

Sockel 775 PCIe HDMI DVI

Technische Daten

Prozessor

Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® Dual-Core processo/Intel® Celeron® processor in the LGA 775 package

L2 cache varies with CPU

Front Side Bus

1333/1066/800 MHz FSB

Chipsatz

NVIDIA® GeForce 9400

Arbeitsspeicher

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 800/667 MHz memory modules

Onboard Grafik

1 x D-Sub port

1 x DVI-D port (Note 2)

1 x HDMI port (Note 3)

Audio

Realtek ALC889A codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby Home Theater, S/PDIF In/Out, CD In

LAN

Realtek 8211CL chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot supports NVIDIA Hybrid SLI (Note 4) technology and conforms to PCI Express 2.0 standard.)

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

by Chipset:

5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices (Note 5)

1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device

Support for SATA RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD

JMicron 368 chip:

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Integrated in the chipset

Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

IEEE 1394a

T.I. TSB43AB23 chip

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

3 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x parallel port header

1 x serial port header

1 x power LED header

1 x chassis intrusion header

Rückseite I/O Panel

1 x PS/2 keyboard port or PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 2)

1 x HDMI port (Note 3)

1 x optical S/PDIF Out connector

1 x IEEE 1394a port

1 x eSATA 3Gb/s port

6 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)

I/O

iTE IT8718 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control (Note 6)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOSTM

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS, Q-Flash, Virtual Dual BIOS, Download Center, Xpress Install, Xpress Recovery2, EasyTune (Note 7), Dynamic Energy Saver Advanced

Betriebssystem

Support for Microsoft® Windows Vista/XP or higher

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Hinweis

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) Simultaneous output for DVI-D and HDMI is not supported.
(Note 4) Whether Hybird SLI technology is supported depends on the graphics card being used.
(Note 5) Due to a chipset limitation, the SATA2_3 and SATA2_4 connectors only support AHCI/RAID mode.
(Note 6) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 7) Available functions in EasyTune may differ by motherboard model.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

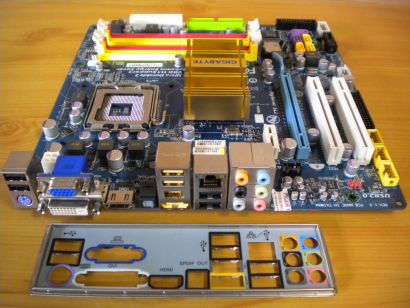

Abbildung ähnlich
