Gigabyte GA-EG31MF-S2 Rev2.0 Mainboard +Blende Sockel 775 DDR2 PCIe VGA LAN*m859

Gigabyte GA-EG31MF-S2 Rev 2.0 Mainboard + Blende Sockel 775 DDR2 PCIe VGA GBLAN

Technische Daten

CPU

Support for an Intel® Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel® Core™ 2 Duo processor / Intel® Pentium® processor Extreme Edition / Intel® Pentium® D processor / Intel® Pentium® 4 processor Extreme Edition / Intel® Pentium® 4 processor / Intel® Celeron® processor in the LGA 775 package; L2 cache varies with CPU

Front Side Bus

1600(O.C.)/1333/1066/800 MHz FSB

Chipset

North Bridge: Intel® G31 Express Chipset + South Bridge: Intel® ICH7

Memory

4 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory

Dual channel memory architecture

Support for DDR2 1066(O.C.)/800/667 MHz memory modules

* Because of chipset limitations, do not populate both DIMM sockets of the same channel (e.g. DDRII1 and DDRII2), or populate 4 DIMM sockets with double-sided memory modules to prevent system's failure to start or incorrect detection of memory modules. Please refer to the user manual for the memory configurations table; Because of chipset limitations, when using FSB 1333 MHz CPU with populating all DIMM sockets, memory frequency will be reduced from the original, and system instability or incorrect detection of memory module may be occur.

Audio

Realtek ALC888 High Definition Audio codec

2/4/5.1/7.1-channel

Support for S/PDIF In/Out; Support for CD In

Gigabit LAN

Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

by South Bridge:

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

by iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB bracketsconnected to the internal USB headers)

T.I. TSB43AB23 IEEE 1394

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x System fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

2 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x power LED header

1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

4 x USB 2.0/1.1 ports

1 x IEEE 1394a port

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

iTE IT8718 chip

H/W Monitoring

System voltage detection

CPU temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU/System fan speed control

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS, Download Center, Q-Flash, EasyTune, Xpress Install, Xpress Recovery2, Virtual Dual BIOS, Dynamic Energy Saver Advanced

Form Factor

Micro ATX Form Factor; 24.4cm x 23cm

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

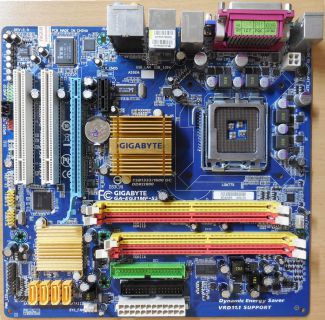

Abbildung ähnlich
