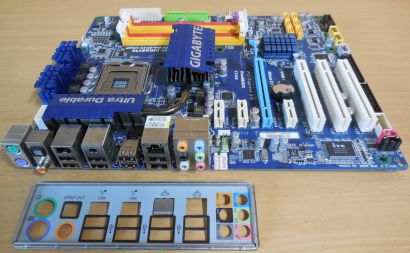

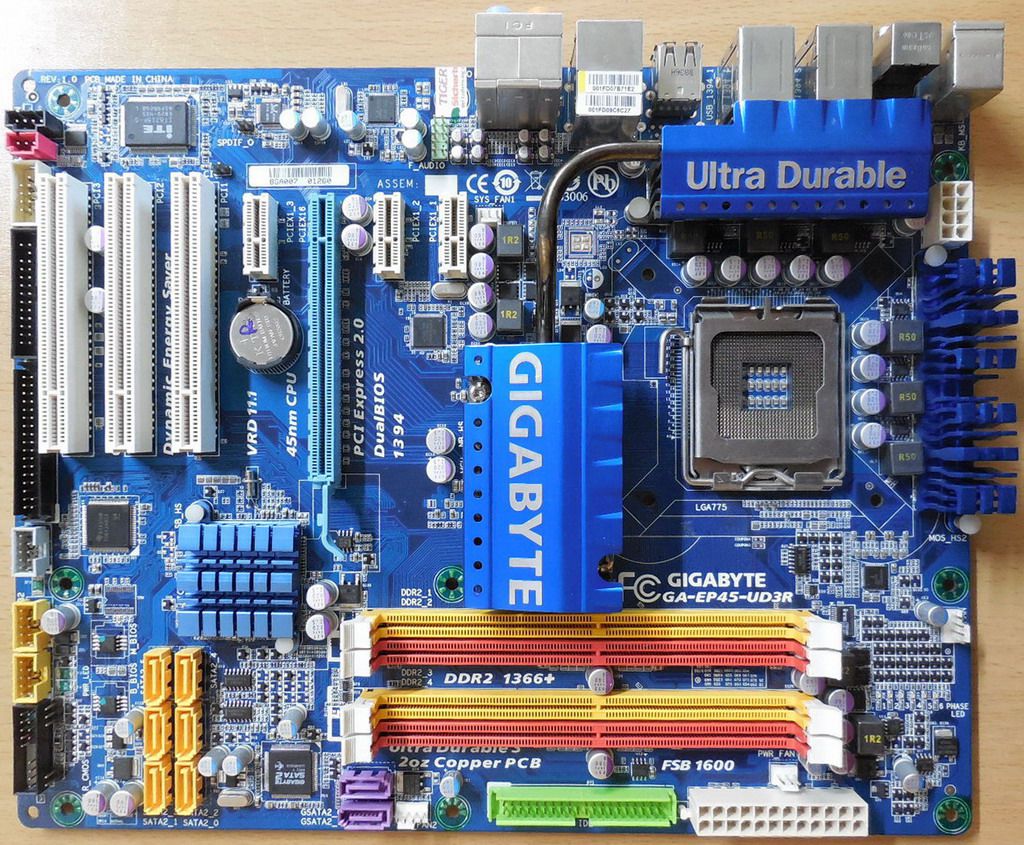

Gigabyte GA-EP45-UD3R Rev1.0 Mainboard +Blende So775 P45 FSB1600 DDR2 PCIe*m858

Gigabyte GA-EP45-UD3R Rev 1.0 Mainboard + Blende So775 P45 FSB1600 DDR2 8xSATA PCIe

Technische Daten

CPU

Support for an Intel Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel Core™ 2 Duo processor / Intel® Pentium® processor Extreme Edition / Intel® Pentium® D processor / Intel® Pentium® 4 processor Extreme Edition / Intel® Pentium® 4 processor / Intel® Celeron® processor in the LGA 775 package

L2 cache varies with CPU

(Refer to CPU support list for more information)

Front Side Bus

1600/1333/1066/800 MHz FSB

Chipsatz

North Bridge: Intel P45 Express Chipset; South Bridge: Intel ICH10R

Arbeitsspeicher

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR2 1366+*/1066/800/667 MHz memory modules

*Refer to Memory Support List for more information.

Audio

Realtek ALC889A codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out; CD-In

Gigabit LAN

1 x Realtek 8111C chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard)

3 x PCI Express x1 slot

3 x PCI slots

Storage Interface

by South Bridge:

6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices; Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

by GIGABYTE SATA2 chip:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices; Support for SATA RAID 0, RAID 1 and JBOD

by iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

IEEE 1394a by T.I. TSB43AB23

Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

8 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x parallel port header

1 x serial port header

1 x power LED header

1 x chassis intrusion header

Rückseite I/O Panel

1 x PS/2 mouse port

1 x PS/2 keyboard/mouse port

1 x optical S/PDIF Out connector

1 x coaxial S/PDIF Out connector

8 x USB 2.0/1.1 ports

2 x IEEE 1394a ports

1 x RJ-45 ports

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line

I/O

iTE IT8718 chip

H/W Überwachung

System voltage detection; CPU/System temperature detection; CPU/System/Power fan speed detection; CPU overheating warning; CPU/System/Power fan fail warning; CPU/System fan speed control

BIOS

2 x 8 Mbit flash; Use of licensed AWARD BIOS; Support for Dual BIOS; PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Dual BIOS; Download Center; Xpress Install; Xpress Recovery2; EasyTune 6; Dynamic Energy Saver Advanced; Time Repair; Q-Share

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
