Gigabyte GA-G31M-S2L Rev 1.1 Mainboard + Blende Sockel 775 DDR2 PCIe GBLAN* m605

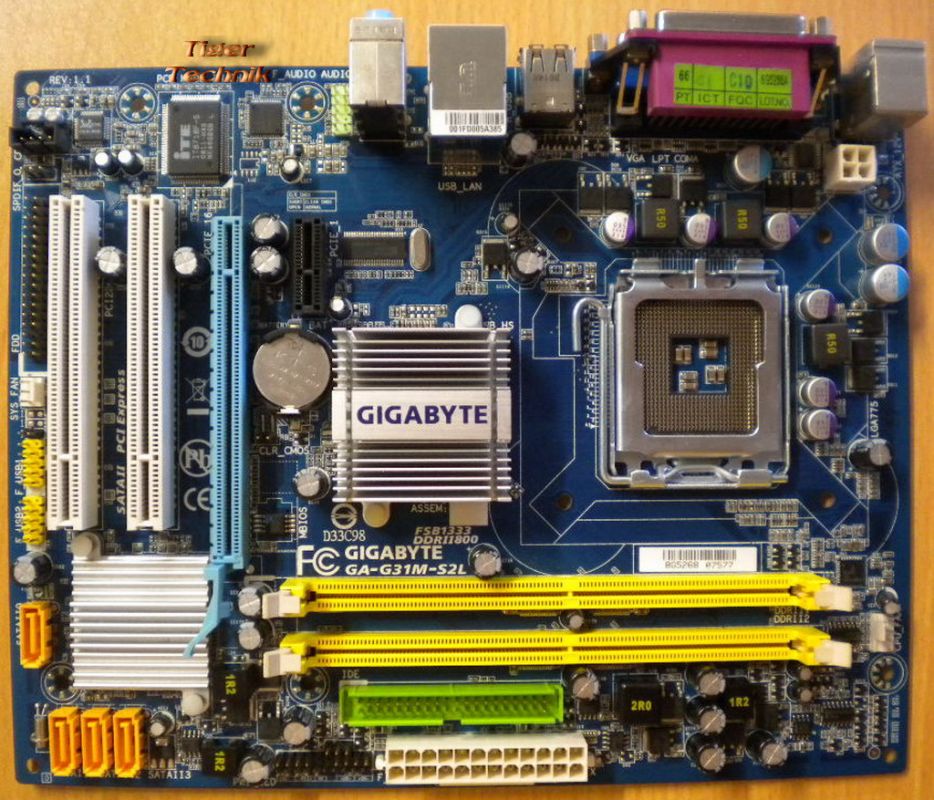

Gigabyte GA-G31M-S2L Rev 1.1 Mainboard + Blende

Sockel 775 DDR2 PCIe GBLAN

Technische Daten

Prozessor

Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® Dual-Core processor/Intel® Celeron® processor in the LGA 775 package

(Go to GIGABYTE's website for the latest CPU support list.)

L2 cache varies with CPU

Front Side Bus

1600(O.C.)/1333/1066/800 MHz FSB

Chipsatz

North Bridge: Intel® G31 Express Chipset

South Bridge: Intel® ICH7

Arbeitsspeicher

2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory

Dual channel memory architecture

Support for DDR2 1066(O.C.)/800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Onboard Grafik

Integrated in the North Bridge

Audio

Realtek ALC662 codec

High Definition Audio 2/4/5.1-channel

Support for S/PDIF Out, CD In

LAN

RTL 8111C chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

South Bridge:

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Integrated in the South Bridge

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x chassis intrusion header

1 x power LED header

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O

iTE IT8718 chip

H/W Überwachung

System voltage detection

CPU temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU fan speed control

BIOS

1 x 4 Mbit flash

Use of licensed AWARD BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS, Download Center, Q-Flash, EasyTune, Xpress Install, Xpress Recovery2, Virtual Dual BIOS

Betriebssystem

Support for Microsoft® Windows 7/Vista/XP

Form Factor

Micro ATX form factor; 24.4cm x 19.3cm

Lieferumfang

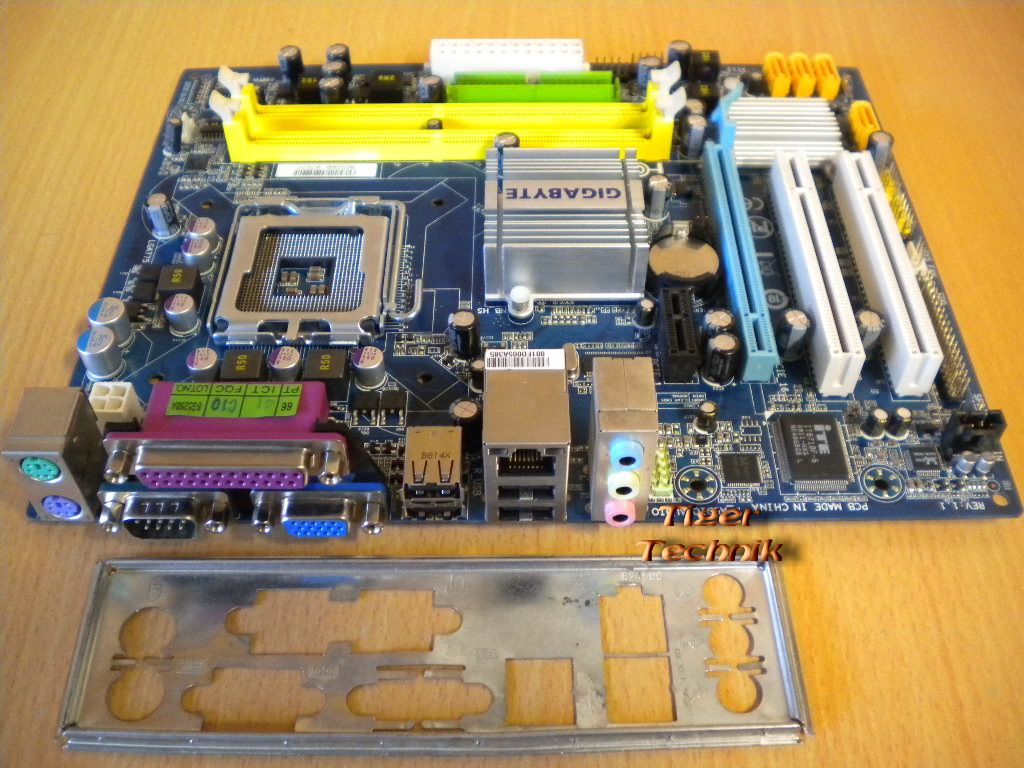

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
