HP A61TR1 Mainboard +Blende 450120-002 518761-001 ProLiant ML310 G5p So775* m716

HP A61TR1 Mainboard + Blende

450120-002 518761-001 ProLiant ML310 G5p Sockel 775

Technische Daten

ausgebaut aus einem ProLiant ML310 G5p. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.

CPU

Quad-Core Intel® Xeon® 3000 processor sequence

Dual-Core Intel® Xeon® 3000 processor sequence

Dual-Core Intel® Core™2 E4600 processor

Dual-Core Intel® Pentium® E2160 processor

Single-Core Intel® Celeron® 400 sequence

Dual-Core Intel® Xeon® processor E3000 sequence processor

FSB

1333 MHz Front Side Bus (FSB)

Chipset

Intel® 3210 Chipset

Memory

Up to 8 GB of PC2-6400 800MHz unbuffered DDR2 SDRAM with ECC capabilities and optional interleaving

Expansion slots

1 x PCI Express x8

3 x PCI Express x1

1 x Optional Extender Board for one 64-bit/100MHz PCI-X

Storage

Embedded SATA with integrated SATA RAID 0,1

4 x SATA ports + 2 x ODD ports

LAN

Embedded NC326i Gigabit Server Adapter

VGA

Integrated graphics

Back Panel I/O

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA port

2 x USB 2.0

2 x RJ-45 Port

USB 2.0 Ports

6 x USB2.0 Total: 2 x front; 2 x rear; 1 x internal; 1 x dedicated internal for tape

Internal I/O Connectors

1 x FAN1 CPU Fan connector

1 x FAN2 connector

1 x FAN3 connector

1 x FAN4 connector

1 x Rear Fan connector

20 pin ATX power connector

4 pin P4 power connector

1 x CN16 Floppy port connector

1 x CN3 connector

1 x Front Panel connector

1 x CN6 connector

1 x RPSU connector

1 x CN13 connector

1 x CN14 TPM connector

1 x CN18 COM2 connector

1 x CN11 connector

1 x CN9 connector

1 x CN17 LPT connector

1 x CN7 connector

1 x JP10 Jumper; 1 x JP4 Jumper; 1 x JP11 Jumper; 1 x JP12 Jumper; 1 x JP2 Jumper; 1 x JP3 Jumper; 1 x JP1 Jumper; 1 x JP6 Jumper; 1 x JP7 Jumper; 1 x JP8 Jumper; 1 x JP9 Jumper

1 x buzzer

Lieferumfang

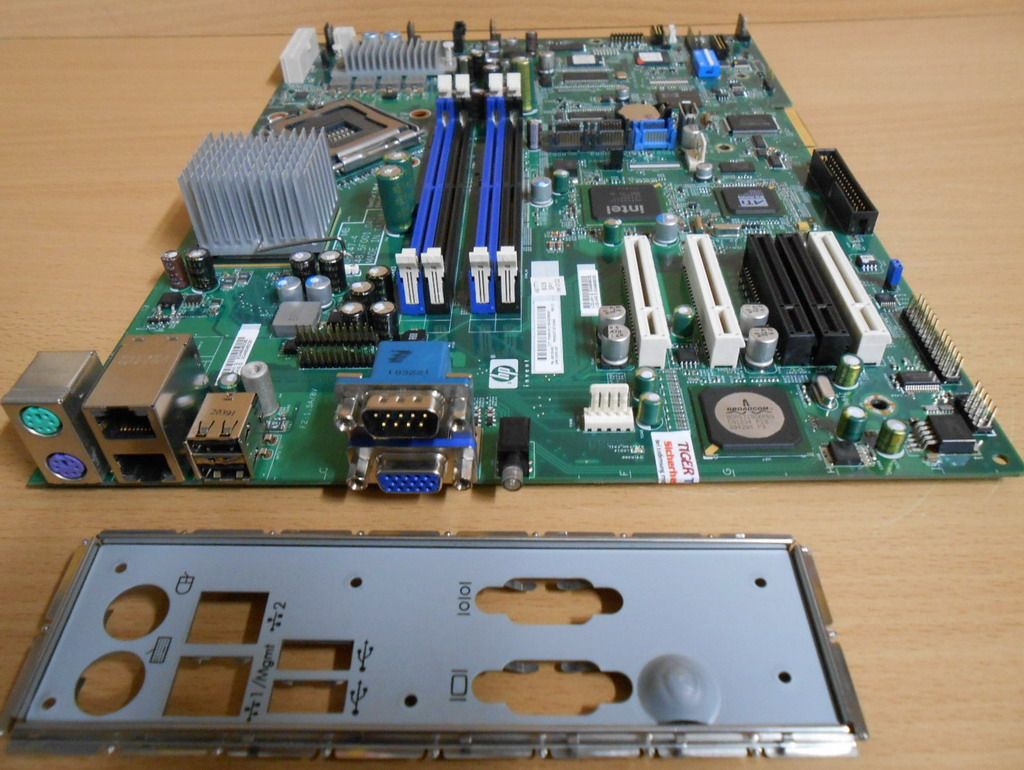

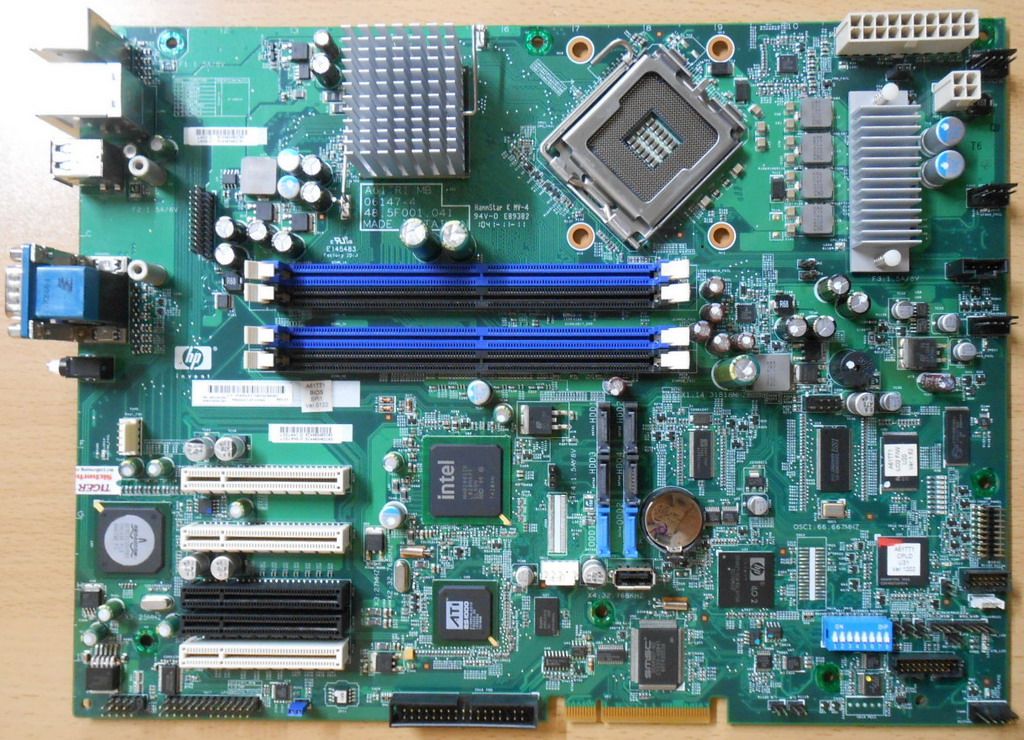

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
