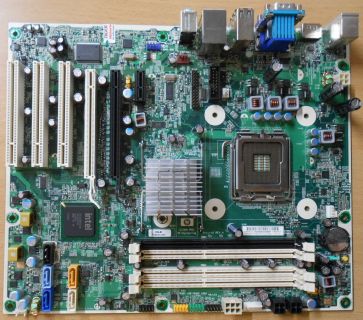

HP Compaq 8000 Elite Mainboard Sockel 775 HP Saturn2 RevA 536883 536455 001*m722

HP/Compaq 8000 Elite Mainboard Sockel 775

HP Saturn2 Rev A SP: 536883-001 AS: 536455-001

+ Stromkabel für 3 SATA Geräte

Technische Daten

ausgebaut aus einem HP/Compaq 8000 Elite CMT PC.

HP/Compaq name: Saturn2 Rev. A

Form Factor

ATX: ca. 29.5 cm x 24.5 cm

Chipset

Intel Q45 Express

Front-side bus speed

800 / 1066 / 1333 MHz

Processor upgrade information

Socket type: 775

Motherboard supports the following processor upgrades:

Intel Celeron E3200 Processor 2.40-GHz, 1M L2 cache, 800 MHz FSB

Intel Celeron E3300 Processor 2.50-GHz, 1M L2 cache, 800 MHz FSB

Intel Pentium E5300 Processor 2.60-GHz, 2M L2 cache, 800 MHz FSB

Intel Pentium E5400 Processor 2.70-GHz, 2M L2 cache, 800 MHz FSB

Intel Pentium E6300 Processor 2.80-GHz, 2M L2 cache, 1066 MHz FSB

Intel Pentium E6500 Processor 2.93-GHz, 2M L2 cache, 1066 MHz FSB

Intel Core 2 Duo E7500 Processor 2.93-GHz, 3M L2 cache, 1066 MHz FSB

Intel Core 2 Duo E7600 Processor 3.06-GHz, 3M L2 cache, 1066 MHz FSB

Intel Core 2 Duo E8400 Processor 3.0-GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology

Intel Core 2 Duo E8500 Processor 3.16-GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology

Intel Core 2 Duo E8600 Processor 3.33-GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology

Intel Core 2 Quad Q8400 Processor 2.66-GHz, 4M L2 cache, 1333 MHz FSB (SFF) (CMT)

Intel Core 2 Quad Q8400s Processor (low power) 2.66-GHz, 4M L2 cache, 1333 MHz FSB

Intel Core 2 Quad Q9505 Processor 2.83-GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology (SFF) (CMT)

Intel Core 2 Quad Q9505s Processor (low power) 2.83-GHz, 6M L2 cache, 1333 MHz FSB with vPro Technology

Intel Core 2 Quad Q9550 Processor 2.83-GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology (SFF) (CMT)

Intel Core 2 Quad Q9550s Processor (low power) 2.83-GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology

Intel Core 2 Quad Q9650 Processor 3.0-GHz, 12M L2 cache, 1333 MHz FSB with vPro Technology (SFF) (CMT)

Memory upgrade information

Four DDR3 DIMM sockets

Supported DIMM types: PC3-10600 (1333 MHz)

Non-ECC memory only

Supports up to 16 GB on 64 bit PCs

Supports up to 4 GB* on 32 bit PCs

*32 bit PCs cannot address a full 4.0 GB of memory.

Video

Integrated graphics using Intel GMA 45000

Audio

High Definition Audio with Realtek ALC261 codec (all ports are stereo)

Line-out and Line-In rear Ports

Multi-streaming capable

Network

Intel 82567LM GbE Network Connection (Gigabit Ethernet)

Expansion Slots

One PCI Express x16

One PCI Express x4

One PCI Express x1

Three PCI

Back I/O ports

PS/2 mouse (green)

Displayport

Sub-D VGA port

Serial port (COM)

RJ-45 Network (LAN)

Audio: Line In (light blue)

Audio: Line Out (lime)

USB 2.0: 6

PS/2 keyboard(purple)

Internal Connectors

One 6-pin power connector

One 4-pin CPU power connector

Two 4-pin SATA Power connectors

Four SATA connectors

One e-SATA connector

One parallel port connector

Two 4-pin fan connectors for CPU fan and Chassis fan

One 9-pin header for power button, reset button, power LED, and HDD LED

One speaker connector

One front audio connector

One COM B port connector

Two USB headers supporting 4 additional USB 2.0 ports or devices

One PWRCMD connector

One Media connector

One button for resetting BIOS settings

One jumper to disable BIOS password checking

One HSENSE connector

One HLOCK header

Lieferumfang

Das Mainboard inkl. 1x SATA Powerkabel mit 3 Anschlüssen * ohne Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
