HP ProLiant ML110 G5 Mainboard Sockel 775 HP 445072 457883 001 A61TT2 SATA* m723

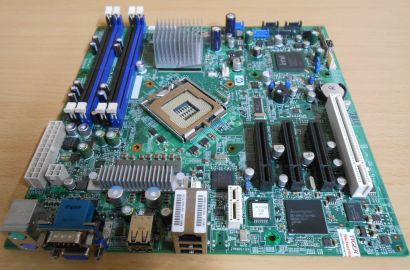

HP ProLiant ML110 G5 Mainboard Sockel 775

HP PN: 445072-001 SP: 457883-001 A61TT2 SATA

Technische Daten

ausgebaut aus einem HP ProLiant ML110 G5 PC.

Bezeichnungen: A61TT2 06146-1. 48.5E401.011 445072-001 457883-001

Form Factor

Micro-ATX: ca. 24.5 cm x 24.5 cm

Chipset

Intel® 3200

Front-side bus speed

800 / 1066 / 1333 MHz

Processor upgrade information

Socket type: 775

Motherboard supports the following processor upgrades:

Intel® Xeon® processor 3300 series

Intel® Xeon® processor 3200 series

Intel® Xeon® processor 3100 series

Intel® Core™ 2 Duo processor 7000 series

Intel® Pentium® processor 2000 series

Intel® Celeron® processor 400 series

Intel® Xeon® processor X3370 (3.00 GHz, 95W, 1333MHz FSB, 12MB)

Intel® Xeon® processor X3360 (2.83 GHz, 95W, 1333MHz FSB, 12MB)

Intel® Xeon® processor X3330 (2.66 GHz, 95W, 1333MHz FSB, 6MB)

Intel® Xeon® Processor X3220 (2.40 GHz, 95W, 1066MHz FSB, 8MB)

Intel® Xeon® Processor X3210 (2.13 GHz, 95W, 1066MHz FSB, 8MB)

Intel® Xeon® processor E3120 (3.16 GHz, 65W, 1333MHz FSB, 6MB)

Intel® Xeon® processor E3110 (3.00 GHz, 65W, 1333MHz FSB, 6MB)

Intel® Core™ 2® processor E7400 (2.80 GHz, 65W, 1066MHz FSB, 3MB)

Intel® Pentium® processor E2160 (1.80 GHz, 65W, 800MHz FSB, 1MB)

Intel® Celeron® processor 440 (2.0 GHz, 35W, 800MHz FSB, 512KB)

Memory upgrade information

Four DDR2 DIMM sockets

Supported DIMM types: PC2-6400 (800 MHz)

ECC, unbuffered memory only

supports 2GB DDR2 DIMMs

Supports up to 8 GB on 64 bit PCs

Supports up to 4 GB* on 32 bit PCs

*32 bit PCs cannot address a full 4.0 GB of memory.

Video

32MB shared supporting 1600 x 1200 x 16M resolution

Network

Embedded NC105i PCI Express Gigabit Ethernet Server Adapter

Expansion Slots

One PCI Express x8 connectors with x8 link (Slot 4)

Two PCI Express x8 connectors with x1 link

One PCI

Back I/O ports

PS/2 mouse (green)

Sub-D VGA port

Serial port (COM)

RJ-45 Network (LAN)

USB 2.0: 4

PS/2 keyboard(purple)

Internal Connectors

One 24-pin power connector

One 4-pin CPU power connector

One 5-pin FAN connector

Six SATA II 3 Gb/s connectors (4 ports available for hard disks)

One Front Panel connector

One USBCONN2 connector

One USBCONN3 connector

One 4-pin fan connector for CPU fan

One FPUSBCONN1 connector

One buzzer

One white PCI-E connector

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
