Produktbeschreibung

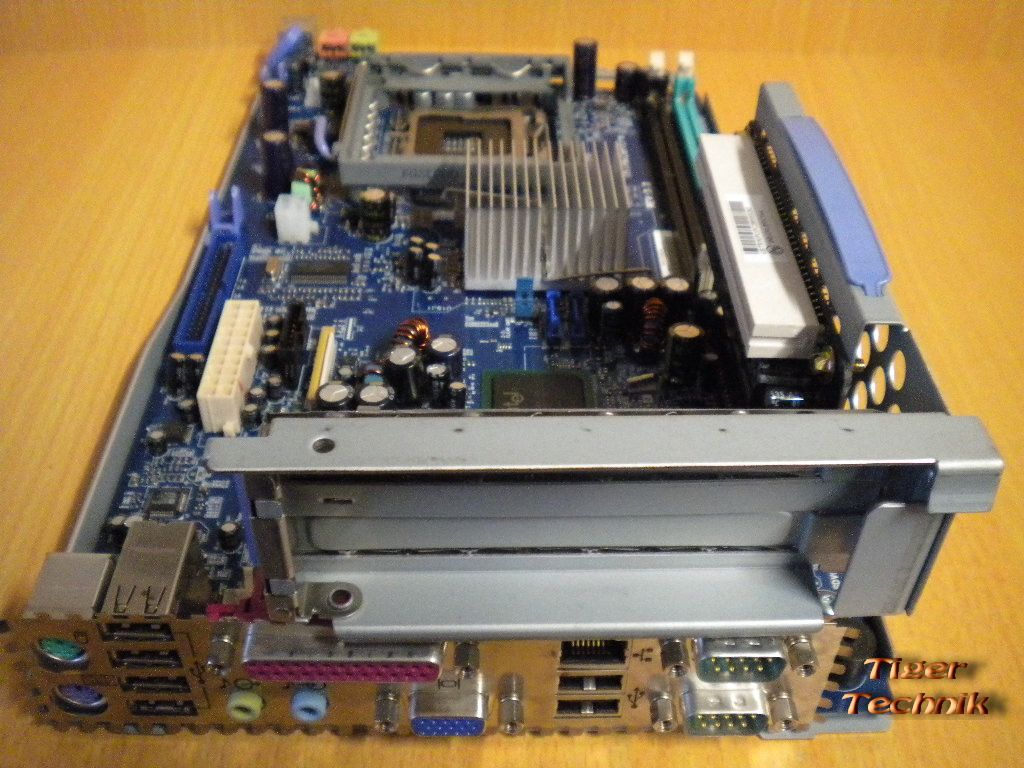

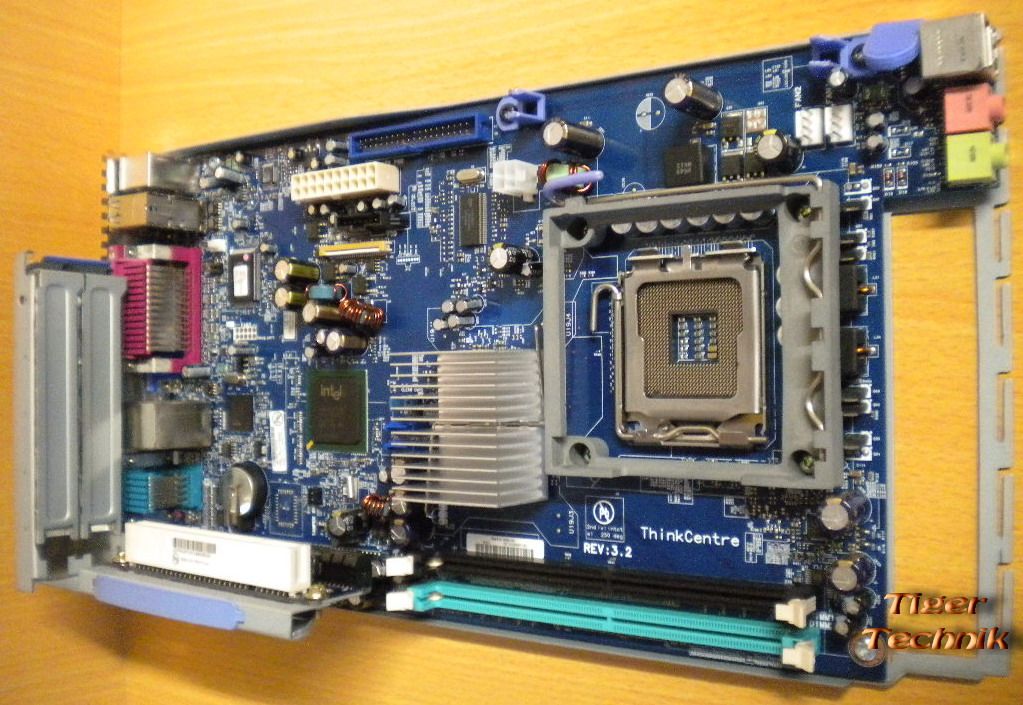

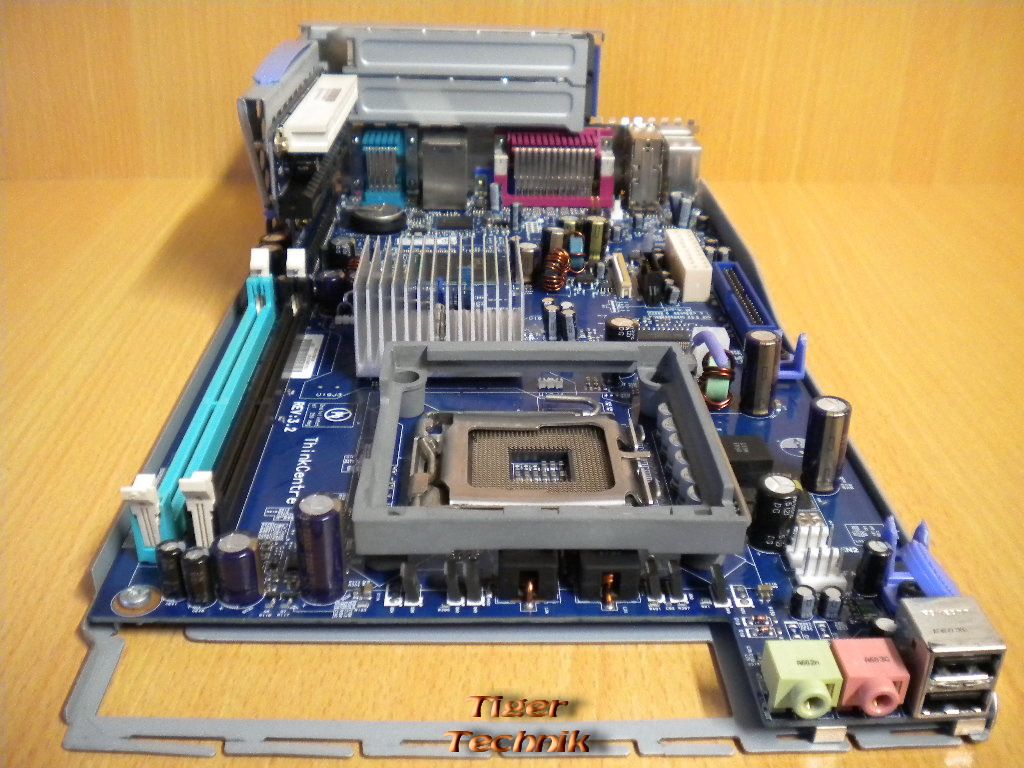

IBM ThinkCentre A52 M52 Rev 3.2 Mainboard
Original IBM FRU 41T5465 Ersatzteil z.B. für ThinkCentre A52 oder M52!!! Auf Schiene!!!
Einfach altes Board mit der Schiene raus und das neue Board mit der Schiene einbauen und weiter geht´s!!!
Technische Daten
System board / Form factor
Tower (4x4) with Intel 945G chipset
Supports Intel Prescott Celeron D processor with 533MHZ FSB and 256KB L2 cache
Supports Intel Prescott Pentium 4 processors with 533MHz or 800MHz FSB with 1MB or 2MB L2 cache
Supports Intel Smithfield Pentium D processors with 800MHz FSB and 2x1MB L2 cache
Supports system bus speeds of 533MHz, 800MHz, and 1066MHz
Custom BTX system board design
LGA 775 socket
Note: Hyperthreading is supported only with Microsoft Windows XP Service Pack 1. Hyperthreading must be disabled when using Windows 2000.
Processor
Intel® Celeron D Processor 331, 336, 341, 346, 351
Intel® Pentium® 4 Processor 506, 516, 521 with HT Technology, 531 with HT Technology, 541 with HT Technology, 551 with HT Technology, 630 with HT Technology, 640 with HT Technology, 650 with HT Technology
Intel® Pentium® D Processor 820
Cache
256KB cache - Celeron processors
1MB cache - Pentium 4 processors
2MB cache - Pentium 4 processors
2x1MB L2 cache - Pentium D processors
Chipsets
Intel 945G Graphics Memory Controller Hub - NG82945G chipset
Integrated Intel Graphics Media Accelerator 950
Runs at 333MHz
Single and Dual channel memory capability
1202-pin FCBGA package
Intel I/O Controller Hub (ICH7) - 82801GB chipset
652-pin PBGA package
PCI Express x1 slot support
New Direct Media Interface (DMI) to Northbridge (x4 PCI Express like)
High Definition Audio
AC '97 2.3 Digital controller
IDE controller
2 Serial ATA connectors
1 Parallel ATA connector
Memory
400MHz DDR2 (Double Data Rate) dual channel memory support
PC2-4200 (533MHz) memory supported
PC2-5300 (667MHz) memory supported
Four 240 pin DDR2 SDRAM UDIMM sockets
Supports a maximum memory up to 4GB
If 4GB of physical memory is installed approximately 3GB will be useable by the operating system. This is due to limitations from the address mapping of PCI busses and other system devices.
ECC or parity memory is not supported
Audio
SoundMAX Cadenza with SPX
Integrated High Definition (HD) PCI AC'97 2.3 compliant codec
ADI 1981HD CODEC
Front - Microphone-in, Headphones out, IEEE 1394 (optional)
Rear - Line-in, line-out
Jack sensing, jack retasking - software will automatically detect which jack the microphone is using.
Software-based audio (done by processor and ICH8)
internal mono speakers (select models)
Networking
Integrated Intel Gigabit Ethernet with Intel 82573E
External ports
Eight USB ( two in front, six in back) [Ver 2.0]
One ethernet RJ-45
One serial 9-pin 16550 compatible (select models may have a second serial port)
One parallel 25-pin parallel (EPP, ECP), IEEE 1284
Keyboard, monitor, and mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
Slot 1: full length, x16 (16 lane) PCI Express (graphics only)
Slot 3: half length PCI
Power management
APM 1.2 and ACPI 1.0b compliant
Tower (4x4) with Intel 945G chipset
Supports Intel Prescott Celeron D processor with 533MHZ FSB and 256KB L2 cache
Supports Intel Prescott Pentium 4 processors with 533MHz or 800MHz FSB with 1MB or 2MB L2 cache
Supports Intel Smithfield Pentium D processors with 800MHz FSB and 2x1MB L2 cache
Supports system bus speeds of 533MHz, 800MHz, and 1066MHz
Custom BTX system board design
LGA 775 socket
Note: Hyperthreading is supported only with Microsoft Windows XP Service Pack 1. Hyperthreading must be disabled when using Windows 2000.
Processor
Intel® Celeron D Processor 331, 336, 341, 346, 351
Intel® Pentium® 4 Processor 506, 516, 521 with HT Technology, 531 with HT Technology, 541 with HT Technology, 551 with HT Technology, 630 with HT Technology, 640 with HT Technology, 650 with HT Technology
Intel® Pentium® D Processor 820
Cache
256KB cache - Celeron processors
1MB cache - Pentium 4 processors
2MB cache - Pentium 4 processors
2x1MB L2 cache - Pentium D processors
Chipsets
Intel 945G Graphics Memory Controller Hub - NG82945G chipset
Integrated Intel Graphics Media Accelerator 950
Runs at 333MHz
Single and Dual channel memory capability
1202-pin FCBGA package
Intel I/O Controller Hub (ICH7) - 82801GB chipset
652-pin PBGA package
PCI Express x1 slot support
New Direct Media Interface (DMI) to Northbridge (x4 PCI Express like)
High Definition Audio
AC '97 2.3 Digital controller
IDE controller
2 Serial ATA connectors
1 Parallel ATA connector
Memory
400MHz DDR2 (Double Data Rate) dual channel memory support
PC2-4200 (533MHz) memory supported
PC2-5300 (667MHz) memory supported
Four 240 pin DDR2 SDRAM UDIMM sockets
Supports a maximum memory up to 4GB
If 4GB of physical memory is installed approximately 3GB will be useable by the operating system. This is due to limitations from the address mapping of PCI busses and other system devices.
ECC or parity memory is not supported
Audio
SoundMAX Cadenza with SPX
Integrated High Definition (HD) PCI AC'97 2.3 compliant codec
ADI 1981HD CODEC
Front - Microphone-in, Headphones out, IEEE 1394 (optional)
Rear - Line-in, line-out
Jack sensing, jack retasking - software will automatically detect which jack the microphone is using.
Software-based audio (done by processor and ICH8)
internal mono speakers (select models)
Networking
Integrated Intel Gigabit Ethernet with Intel 82573E
External ports
Eight USB ( two in front, six in back) [Ver 2.0]
One ethernet RJ-45
One serial 9-pin 16550 compatible (select models may have a second serial port)
One parallel 25-pin parallel (EPP, ECP), IEEE 1284
Keyboard, monitor, and mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
Slot 1: full length, x16 (16 lane) PCI Express (graphics only)
Slot 3: half length PCI
Power management
APM 1.2 and ACPI 1.0b compliant
Lieferumfang
Das Mainboard auf der Einbauschiene * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
